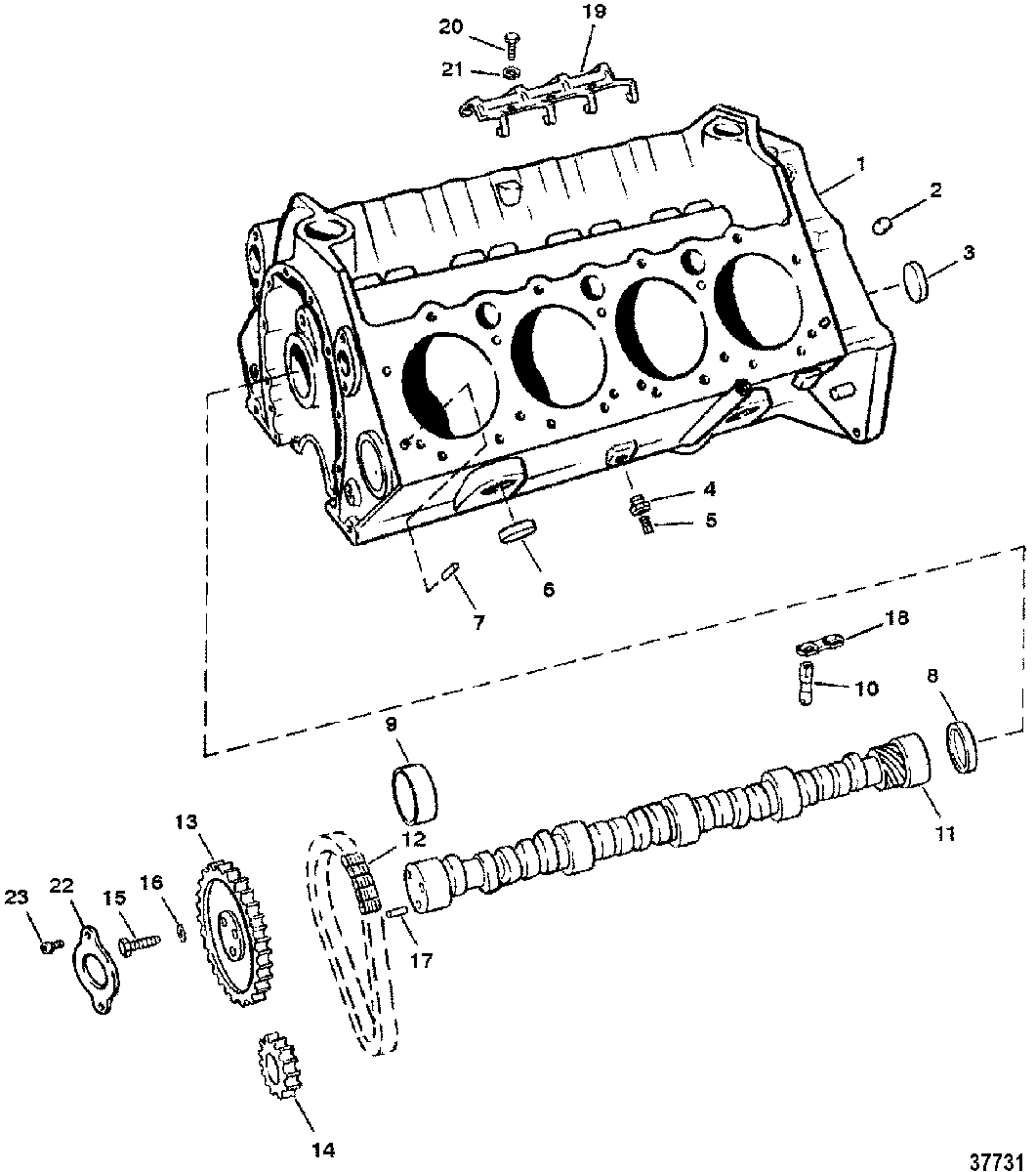

CYL. BLOCK AND CAMSHAFT(5.7LX ALPHA/BRAVO)(350 MAG/ALPHA) для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1996 0F601000 THRU 0K001526
-
№АртикулНазвание
-
1NSS NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 807447A1)NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 807447A1) -
222-32561 PLUG, (.250-18 x .41)PLUG, (.250-18 x .41)
-
319-816565 PLUG, Pipe(.468)PLUG, Pipe(.468)
-
422-48556 BUSHING , Reducer (.250 To .125)BUSHING , Reducer (.250 To .125)
-
522-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
619-34270 EXPANSION PLUG, (1.625)EXPANSION PLUG, (1.625)
-
717-35465 PIN, Dowel (.312)PIN, Dowel (.312)
-
822-72640 PLUG, ExpansionPLUG, Expansion
-
923-85674 BEARING SETBEARING SET
-
1017340T1 LIFTER, RollerLIFTER, Roller
-
11431-811658 CAMSHAFTCAMSHAFT
-
1217161T CHAIN, TimingCHAIN, Timing
-
1343-8116591 SPROCKET, CamshaftSPROCKET, Camshaft
-
1443-17160 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
1510-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
1612-848136 WASHER, (.328 x .680 x .190)WASHER, (.328 x .680 x .190)
-
1717-843378 PIN, Dowel (1/4 n. Diameter)PIN, Dowel (1/4 n. Diameter)
-
1817341T GUIDE, LifterGUIDE, Lifter
-
19811662 RETAINER, Lifter GuideRETAINER, Lifter Guide
-
2010-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
2112-811664 WASHER, (.3125 Inch)WASHER, (.3125 Inch)
-
22845941 RETAINERRETAINER
-
2310-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
-807447R5 LONGBLOCK ASSEMBLY (4 BBL CARBURETOR)LONGBLOCK ASSEMBLY (4 BBL CARBURETOR)
-
-92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
-
-92-34227Q02 SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
