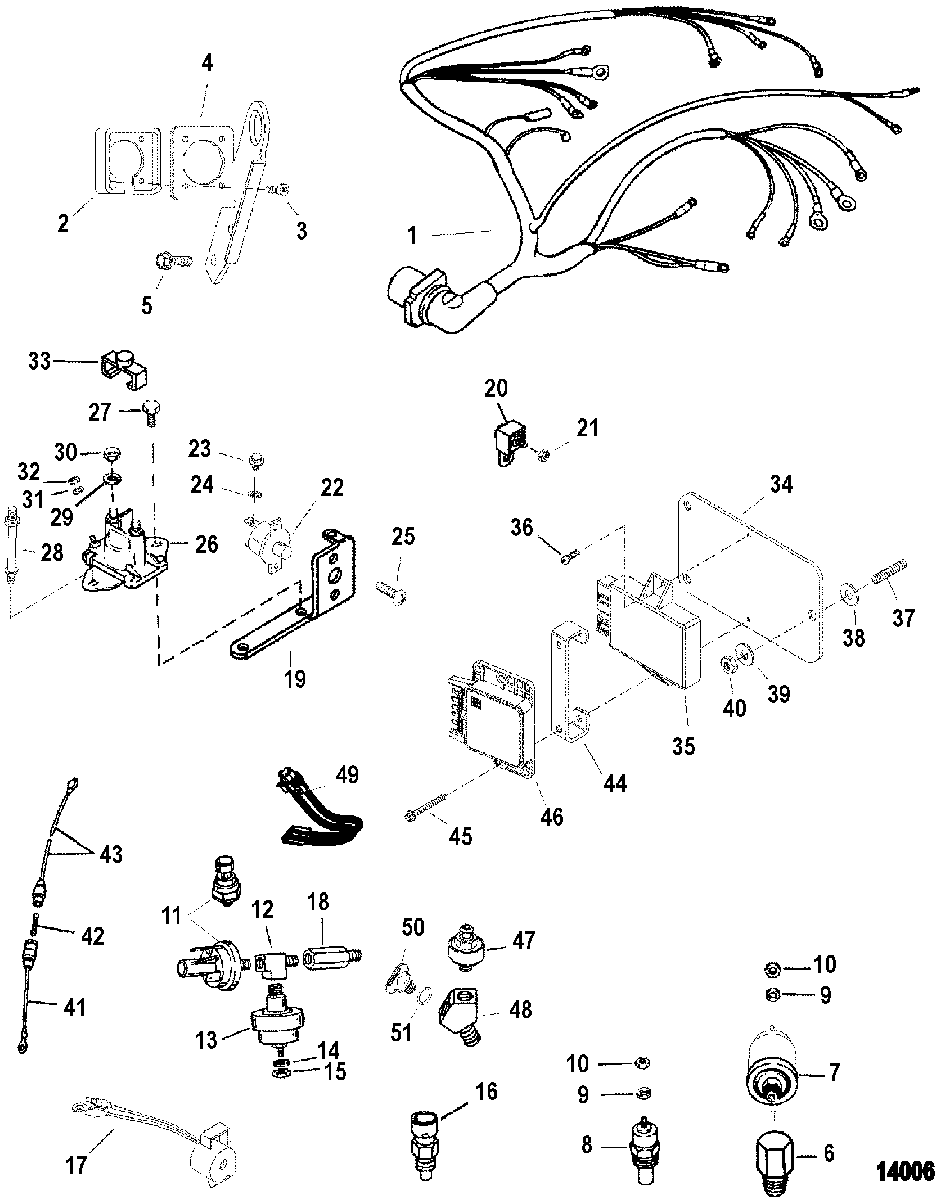

Wiring Harness And Electrical Components для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1998-2001 0L010037 THRU 0M599999
-
№АртикулНазвание
-
184-861515A2 HARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Mando Alternator)HARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Mando Alternator) -
184-862163T03 HARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Delco Alternator) SN# 0M330622 & BelowHARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Delco Alternator) SN# 0M330622 & Below -
184-862163T02 HARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Delco Alternator) SN# 0M330623 & UpHARNESS ASSEMBLY, Wiring
(5.0L Alpha) (Delco Alternator) SN# 0M330623 & Up -
184-861236A2 HARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Mando Alternator)HARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Mando Alternator) -
184-862575T03 HARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Delco Alternator) SN# 0M330622 & BelowHARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Delco Alternator) SN# 0M330622 & Below -
184-862575T02 HARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Delco Alternator) SN# 0M330623 & UpHARNESS ASSEMBLY, Wiring
(5.0L Bravo) (Delco Alternator) SN# 0M330623 & Up -
184-861236A2 HARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Mando Alternator)HARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Mando Alternator) -
184-862575T03 HARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Delco Alternator) SN# 0M331443 & BelowHARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Delco Alternator) SN# 0M331443 & Below -
184-862575T02 HARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Delco Alternator) SN# 0M331444 & UpHARNESS ASSEMBLY, Wiring
(5.7L Alpha/Bravo) (Delco Alternator) SN# 0M331444 & Up -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4865480T BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
622-8053281 FITTING, Elbow (90 Degree - .125) (90 Degree)FITTING, Elbow (90 Degree - .125) (90 Degree)
-
622-32974 FITTING, (.125-27) Adaptor, StraightFITTING, (.125-27) Adaptor, Straight
-
78M0068784 SENDER ASSEMBLYSENDER ASSEMBLY
-
737293T SENDER ASSEMBLY
(Dual Station)SENDER ASSEMBLY
(Dual Station) -
8806490T SENDERSENDER
-
849734 SENDER
(Dual Station)SENDER
(Dual Station) -
913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1011-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1187-864252A01 SWITCH, Oil Pressure
(5.0L) SN# OM330622 & BelowSWITCH, Oil Pressure
(5.0L) SN# OM330622 & Below -
1187-8M0070108 SWITCH, Oil Pressure
(5.0L) SN# OM330623 & UpSWITCH, Oil Pressure
(5.0L) SN# OM330623 & Up -
1187-864252A01 SWITCH, Oil Pressure
(5.7L) SN# 0M331443 & BelowSWITCH, Oil Pressure
(5.7L) SN# 0M331443 & Below -
1187-8M0070108 SWITCH, Oil Pressure
(5.7L) SN# 0M331444 & UpSWITCH, Oil Pressure
(5.7L) SN# 0M331444 & Up -
1222-286241 FITTING, TFITTING, T
-
1387-805605A1 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1511-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
16805218T SENSORSENSOR
-
17816492A6 ALARM KITALARM KIT
-
1822-805059 FITTINGFITTING
-
19899719T01 BRACKET, ElectricalBRACKET, Electrical
-
2088-79023T56 FUSE ASSEMBLY, 55 AmpereFUSE ASSEMBLY, 55 Ampere
-
2088-79023A91 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
2111-21825 NUT, (.250-28)NUT, (.250-28)
-
2288-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2310-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
2413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2510-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
2689-96158T SOLENOIDSOLENOID
-
2710-805564 SCREW, (.250-20 x .750)
(Alpha Engines)SCREW, (.250-20 x .750)
(Alpha Engines) -
2710-805564 SCREW, (.250-20 x .750)
(Bravo Engines)SCREW, (.250-20 x .750)
(Bravo Engines) -
2816-805459 STUD, Mercathode Mounting
(Bravo Engines)STUD, Mercathode Mounting
(Bravo Engines) -
2913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3011-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
3211-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
3385-97861 INSULATORINSULATOR
-
34861516 BRACKETBRACKET
-
35861459T02 ICM MODULE, Ignition Control Module
(5.0L Alpha)ICM MODULE, Ignition Control Module
(5.0L Alpha) -
35861460T02 ICM MODULE, Ignition Control Module
(5.0L Bravo)ICM MODULE, Ignition Control Module
(5.0L Bravo) -
35861253T02 ICM MODULE, Ignition Control Module
(5.7L Alpha)ICM MODULE, Ignition Control Module
(5.7L Alpha) -
35861254T02 ICM MODULE, Ignition Control Module
(5.7L Bravo)ICM MODULE, Ignition Control Module
(5.7L Bravo) -
3610-861520 SCREW, (#10-32 x .500)
(5.0L Alpha)SCREW, (#10-32 x .500)
(5.0L Alpha) -
3710-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
3812-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
3912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4011-64015 NUT, (.250-20)NUT, (.250-20)
-
4184-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo Engines)CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
(Bravo Engines) -
4288-79091 FUSE, 20 Ampere
(Bravo Engines)FUSE, 20 Ampere
(Bravo Engines) -
4384-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo Engines)CABLE ASSEMBLY, (5.00 Inches) Red
(Bravo Engines) -
44861517 BRACKET
(5.0L Bravo And 5.7 Alpha/Bravo)BRACKET
(5.0L Bravo And 5.7 Alpha/Bravo) -
4510-41408 SCREW, (#10-32 x 1.50)
(5.0L Bravo And 5.7 Alpha/Bravo)SCREW, (#10-32 x 1.50)
(5.0L Bravo And 5.7 Alpha/Bravo) -
46806611T MODULE, Knock Control
(5.0L Bravo And 5.7 Alpha/Bravo)MODULE, Knock Control
(5.0L Bravo And 5.7 Alpha/Bravo) -
47806612T SENSOR, Knock
(5.0L Bravo And 5.7 Alpha/Bravo)SENSOR, Knock
(5.0L Bravo And 5.7 Alpha/Bravo) -
4822-8067051 FITTING, Dual
(5.0L Bravo And 5.7 Alpha/Bravo)FITTING, Dual
(5.0L Bravo And 5.7 Alpha/Bravo) -
4984-864388 HARNESS ASSEMBLY, Oil Sensor AdaptorHARNESS ASSEMBLY, Oil Sensor Adaptor
-
5022-8M0119211 PLUG KIT, (.500-13) Royal Blue, FittingPLUG KIT, (.500-13) Royal Blue, Fitting
-
5125-62706 O-RINGO-RING
