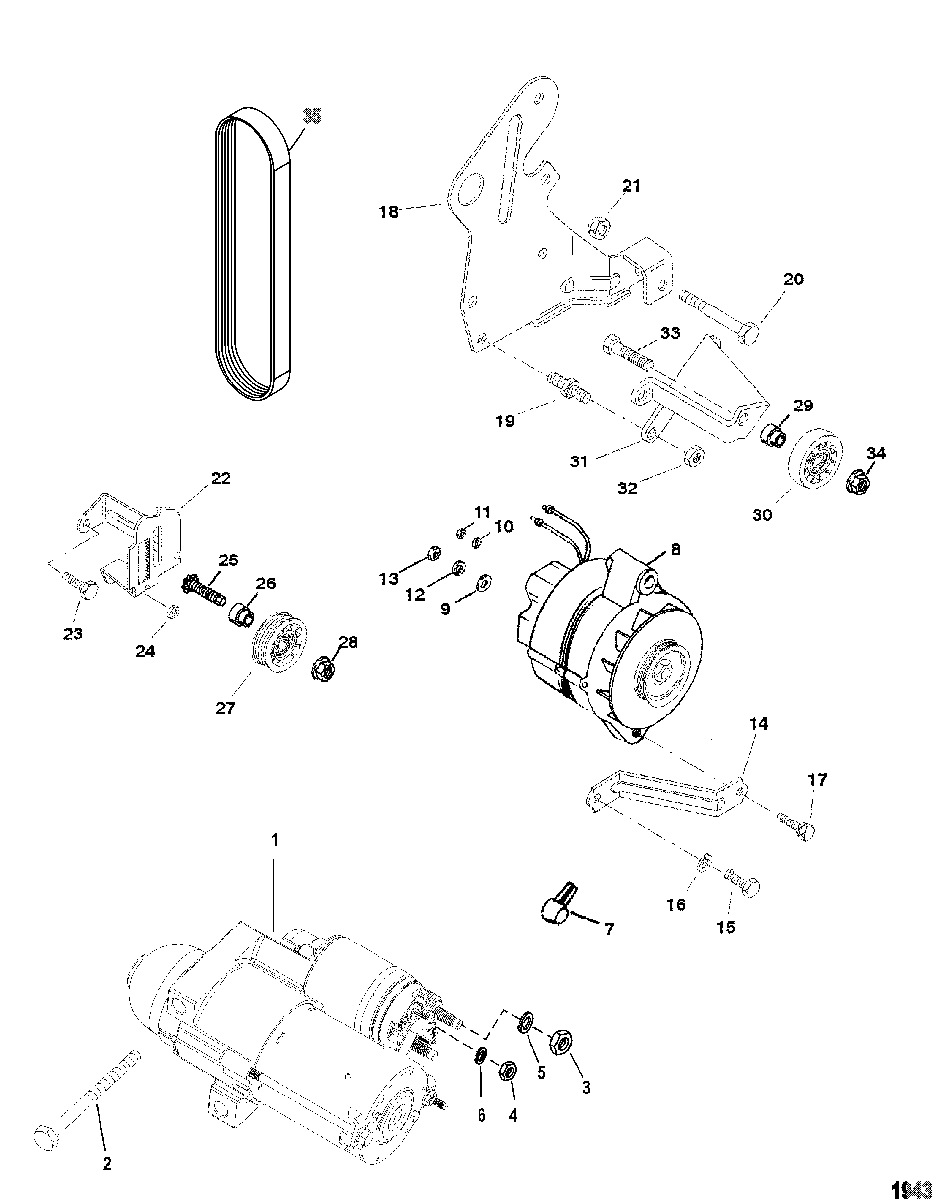

Alternator And Starter(Mando) для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1998-2001 0L010037 THRU 0M599999
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-8053432 SCREW, (.375-16 x 4.33)SCREW, (.375-16 x 4.33)
-
311-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
513-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
785-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
8807652T ALTERNATOR ASSEMBLY
(See "Alternator (Mando)" For Breakdown)ALTERNATOR ASSEMBLY
(See "Alternator (Mando)" For Breakdown) -
912-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
1013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1111-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
14807750T BRACEBRACE
-
1510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1710-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
18860370T BRACKET, Alternator/Power SteeringBRACKET, Alternator/Power Steering
-
1916-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
2010-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
-
22807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
2310-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2411-29250 NUT, (.312-24)NUT, (.312-24)
-
2543-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
26865193 BUSHINGBUSHING
-
27807757T PULLEY ASSEMBLY, Idler - BlackPULLEY ASSEMBLY, Idler - Black
-
2811-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
29865193 BUSHING
(Closed Cooling Models)BUSHING
(Closed Cooling Models) -
308M6500024 PULLEY
(Closed Cooling Models)PULLEY
(Closed Cooling Models) -
31807753T1 BRACKET
(Closed Cooling Models)BRACKET
(Closed Cooling Models) -
3211-32219 NUT, (.375-16)
(Closed Cooling Models)NUT, (.375-16)
(Closed Cooling Models) -
3310-816601 SCREW, (.437-20 x 1.500)
(Closed Cooling Models)SCREW, (.437-20 x 1.500)
(Closed Cooling Models) -
3411-859135 NUT, (.437-20) Brass/Nickel Plated
(Closed Cooling Models)NUT, (.437-20) Brass/Nickel Plated
(Closed Cooling Models) -
3557-861758A1 BELT, Serpentine
(Standard Cooling) (Alpha Engines)BELT, Serpentine
(Standard Cooling) (Alpha Engines) -
3557-861757A1 BELT, Serpentine
(Standard Cooling) (Bravo Engines)BELT, Serpentine
(Standard Cooling) (Bravo Engines) -
3557-861049A1 BELT, Serpentine
(Closed Cooling)BELT, Serpentine
(Closed Cooling)
