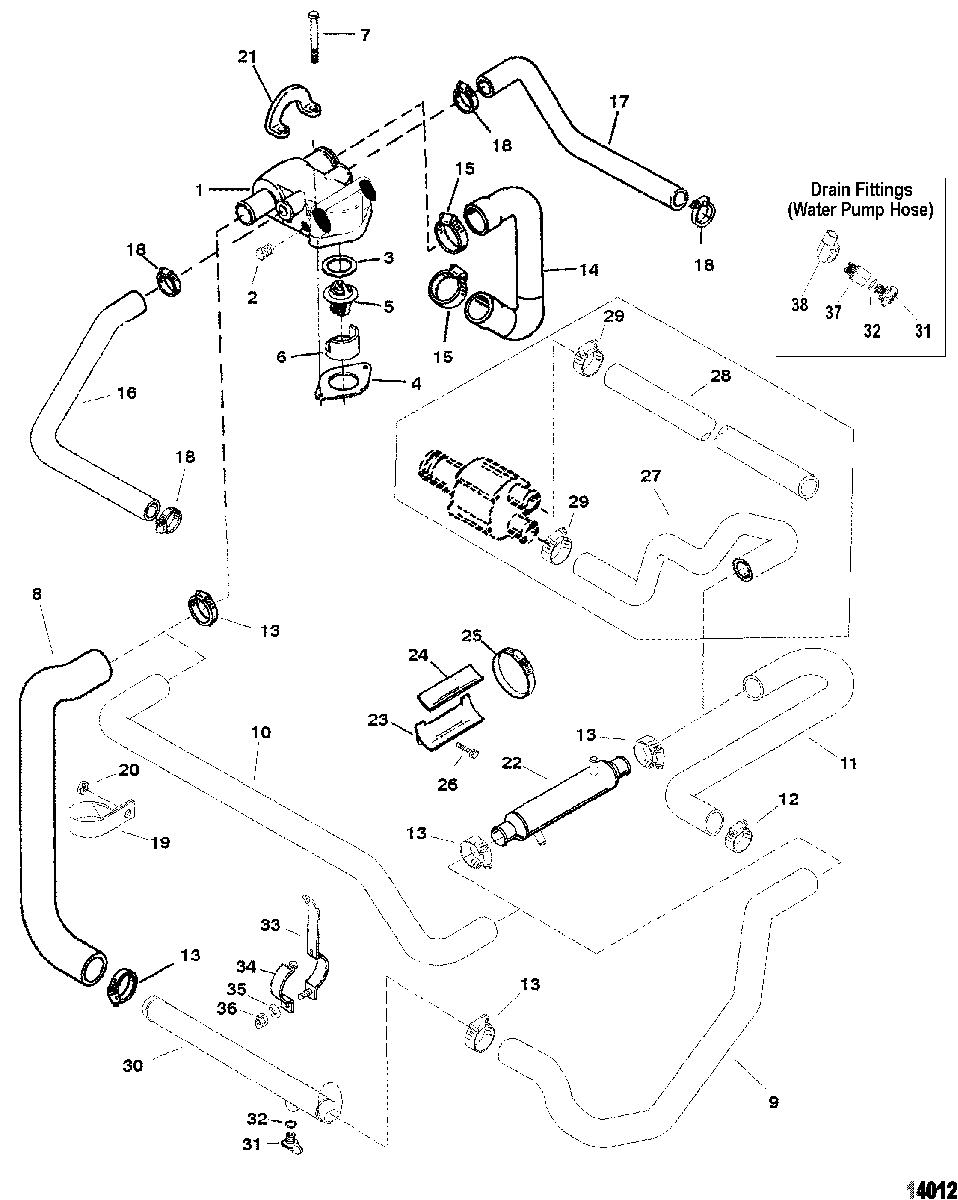

Standard Cooling System для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1998-2001 0L010037 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    860256A3 HOUSING ASSEMBLY, Thermostat
    (Alpha)
    HOUSING ASSEMBLY, Thermostat
    (Alpha)
  • 1
    860256A4 HOUSING ASSEMBLY, Thermostat
    (Bravo)
    HOUSING ASSEMBLY, Thermostat
    (Bravo)
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 8
    32-808033 HOSE, Molded, Thermostat Housing To Hose Extender
    (With Hose Extender)
    HOSE, Molded, Thermostat Housing To Hose Extender
    (With Hose Extender)
  • 9
    32-8600891 HOSE, Molded, Hose Extender To Power Steering Cooler
    (With Hose Extender)
    HOSE, Molded, Hose Extender To Power Steering Cooler
    (With Hose Extender)
  • 10
    32-861512 HOSE, Thermostat Housing To Power Steering Cooler
    (With Out Hose Extender)
    HOSE, Thermostat Housing To Power Steering Cooler
    (With Out Hose Extender)
  • 11
    32-807661 HOSE
    (Alpha Engines)
    HOSE
    (Alpha Engines)
  • 12
    54-815504212 CLAMP, Worm Gear
    (Alpha Engines)
    CLAMP, Worm Gear
    (Alpha Engines)
  • 13
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 14
    32-861590A05 HOSE, Molded
    (With Out Drain Fittings)
    HOSE, Molded
    (With Out Drain Fittings)
  • 14
    32-861590A05 HOSE ASSEMBLY
    (Thermostat Housing To Water Pump With Drain (With Drain Fittings)
    HOSE ASSEMBLY
    (Thermostat Housing To Water Pump With Drain (With Drain Fittings)
  • 15
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 16
    32-860144 HOSE, Thermostat Housing To Port Exhaust Manifold
    (5.0L ) SN# OL618999 & Below
    HOSE, Thermostat Housing To Port Exhaust Manifold
    (5.0L ) SN# OL618999 & Below
  • 16
    32-862139 HOSE, Thermostat Housing to Port Exhaust Manifold
    (5.0L ) SN# OL619000 & Up
    HOSE, Thermostat Housing to Port Exhaust Manifold
    (5.0L ) SN# OL619000 & Up
  • 16
    32-860144 HOSE, Thermostat Housing To Port Exhaust Manifold
    (5.7L ) SN# OL619107 & Below
    HOSE, Thermostat Housing To Port Exhaust Manifold
    (5.7L ) SN# OL619107 & Below
  • 16
    32-862139 HOSE, Thermostat Housing to Port Exhaust Manifold
    (5.7L) SN# OL619108 & Up
    HOSE, Thermostat Housing to Port Exhaust Manifold
    (5.7L) SN# OL619108 & Up
  • 17
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 18
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 19
    54-47715 CLIP
    CLIP
  • 20
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 21
    12552 LIFTING EYE
    LIFTING EYE
  • 22
    8M0125855 COOLER
    COOLER
  • 23
    805546A2 BRACKET, Oil Cooler
    BRACKET, Oil Cooler
  • 24
    772233 PAD
    PAD
  • 25
    54-815504224 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 26
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 26
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 27
    32-8080441 HOSE, Molded
    (Bravo Engines)
    HOSE, Molded
    (Bravo Engines)
  • 28
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
    HOSE, (96.00 Inches Bulk)
    (Bravo Engines)
  • 29
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
    CLAMP, Worm Gear (1.98 DIameter)
    (Bravo Engines)
  • 30
    860315A1 TUBE, Hose Extender
    TUBE, Hose Extender
  • 31
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 32
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 33
    860418T BRACKET
    BRACKET
  • 34
    860417T CLAMP
    CLAMP
  • 35
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 36
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 37
    22-860088 BUSHING
    BUSHING
  • 38
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-861246A05 GASKET SET
    GASKET SET
