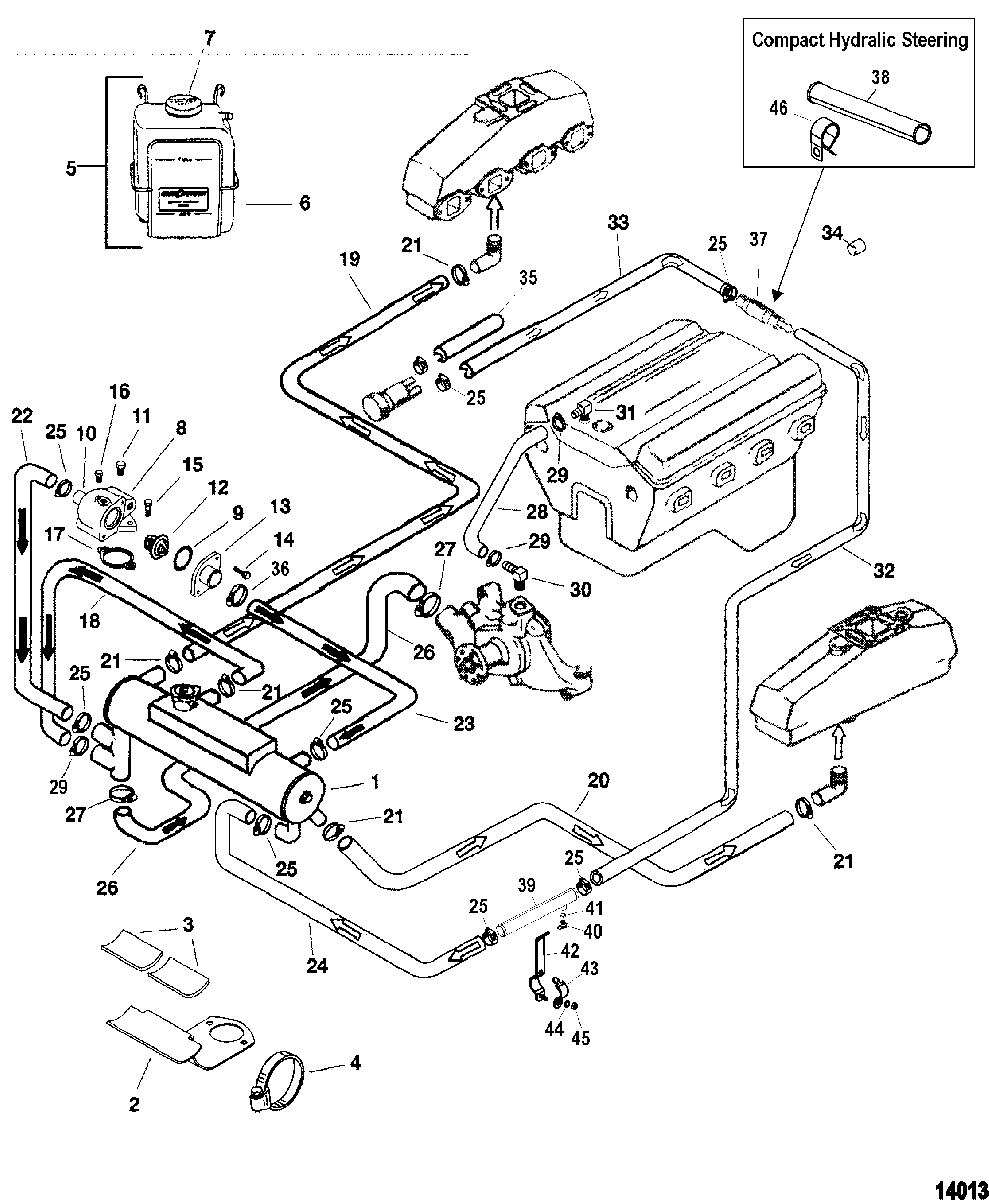

Closed Cooling System для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1998-2001 0L010037 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    860234A1 HEAT EXCHANGER
    HEAT EXCHANGER
  • NS
    8M0036623 COVER, Heat Exchanger End
    COVER, Heat Exchanger End
  • NS
    27-8M0036987 GASKET
    GASKET
  • NS
    10-814877 BOLT
    BOLT
  • NS
    25-8M0039163 O-RING, Special
    O-RING, Special
  • NS
    36-8148791 CAP
    CAP
  • 2
    860326A1 BRACKET ASSEMBLY, Heat Exchanger
    BRACKET ASSEMBLY, Heat Exchanger
  • 3
    18431 PAD (4.25 x 4.375)
    PAD (4.25 x 4.375)
  • 4
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    71587A10 RECOVERY KIT, Coolant
    (See Note)
    RECOVERY KIT, Coolant
    (See Note)
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 6
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 7
    72058 CAP
    CAP
  • 8
    861188A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 9
    25-8071341 SEAL
    SEAL
  • 10
    23-863874 SLEEVE, Water
    SLEEVE, Water
  • 11
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 12
    991551 THERMOSTAT
    THERMOSTAT
  • 13
    807075A1 COVER
    COVER
  • 14
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 15
    10-8M0113174 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 16
    22-818390 DRAIN COCK
    DRAIN COCK
  • 17
    27-530451 GASKET
    GASKET
  • 18
    32-8M0062634 HOSE, (44.00 Inches Bulk)
    (Cut to 6.00 Inch Length)
    HOSE, (44.00 Inches Bulk)
    (Cut to 6.00 Inch Length)
  • 19
    32-861058 HOSE, Heat Exchanger To Exhaust Manifold
    (Alpha - Starboard) SN# 0L618999 & Below
    HOSE, Heat Exchanger To Exhaust Manifold
    (Alpha - Starboard) SN# 0L618999 & Below
  • 19
    32-861057 HOSE, Heat Exchanger To Exhaust Manifold
    (Bravo - Starboard) SN# 0L618999 & Below
    HOSE, Heat Exchanger To Exhaust Manifold
    (Bravo - Starboard) SN# 0L618999 & Below
  • 19
    32-860421 HOSE, Heat Exchanger To Exhaust Manifold
    (Alpha/Bravo Starboard) SN# 0L619000 & Up
    HOSE, Heat Exchanger To Exhaust Manifold
    (Alpha/Bravo Starboard) SN# 0L619000 & Up
  • 20
    32-860421 HOSE, Heat Exchanger To Exhaust Manifold
    (Port) SN# 0L618999 & Below
    HOSE, Heat Exchanger To Exhaust Manifold
    (Port) SN# 0L618999 & Below
  • 20
    32-862125 HOSE, Heat Exchanger To Exhaust Manifold
    (Port) SN# 0L619000 & Up
    HOSE, Heat Exchanger To Exhaust Manifold
    (Port) SN# 0L619000 & Up
  • 21
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 22
    32-860485 HOSE, Thermostat By-Pass
    SN# 0L618999 & Below
    HOSE, Thermostat By-Pass
    SN# 0L618999 & Below
  • 22
    32-860331 HOSE, Thermostat By-Pass
    SN# 0L619000 & Up
    HOSE, Thermostat By-Pass
    SN# 0L619000 & Up
  • 23
    32-860419 HOSE, Thermostat Housing To Heat Exchanger
    HOSE, Thermostat Housing To Heat Exchanger
  • 24
    32-860332 HOSE
    HOSE
  • 25
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 26
    32-861059 HOSE
    HOSE
  • 27
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 28
    32-99520 HOSE, Water Pump To Intake Manifold
    HOSE, Water Pump To Intake Manifold
  • 29
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 30
    22-860346 FITTING, Elbow (90 Degree) (.750)
    FITTING, Elbow (90 Degree) (.750)
  • 31
    22-808042 FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars)
    FITTING, Elbow (90 Degrees) (.50 NPT x .75 Bars)
  • 32
    32-8600891 HOSE, Molded
    SN# 0L618999 & Below
    HOSE, Molded
    SN# 0L618999 & Below
  • 32
    32-808045 HOSE, Fuel Cooler to Transmission Oil Cooler
    SN# 0L619000 & Up
    HOSE, Fuel Cooler to Transmission Oil Cooler
    SN# 0L619000 & Up
  • 33
    32-8080441 HOSE, Molded
    HOSE, Molded
  • 34
    32877 PLUG, Transom Plate Water Inlet Block Off
    PLUG, Transom Plate Water Inlet Block Off
  • 35
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    (Cut to 36.00 Inch Length)
    HOSE, (96.00 Inches Bulk)
    (Cut to 36.00 Inch Length)
  • 36
    54-815504228 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 37
    8M0125855 COOLER, Power Steering
    COOLER, Power Steering
  • 38
    860315A1 TUBE, Hose Extender
    (Compact Hydralic Steering) (Cut to 10.50 Inch Length)
    TUBE, Hose Extender
    (Compact Hydralic Steering) (Cut to 10.50 Inch Length)
  • 39
    860315A1 TUBE, Hose Extender
    (Thermostat House To Power Steering Cooler)
    TUBE, Hose Extender
    (Thermostat House To Power Steering Cooler)
  • 40
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Fitting
    PLUG KIT, (.500-13) Royal Blue, Fitting
  • 41
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 42
    860418T BRACKET
    BRACKET
  • 43
    860417T CLAMP
    CLAMP
  • 44
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 45
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 46
    54-806616 CLAMP
    CLAMP
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-861246A05 GASKET SET
    GASKET SET
