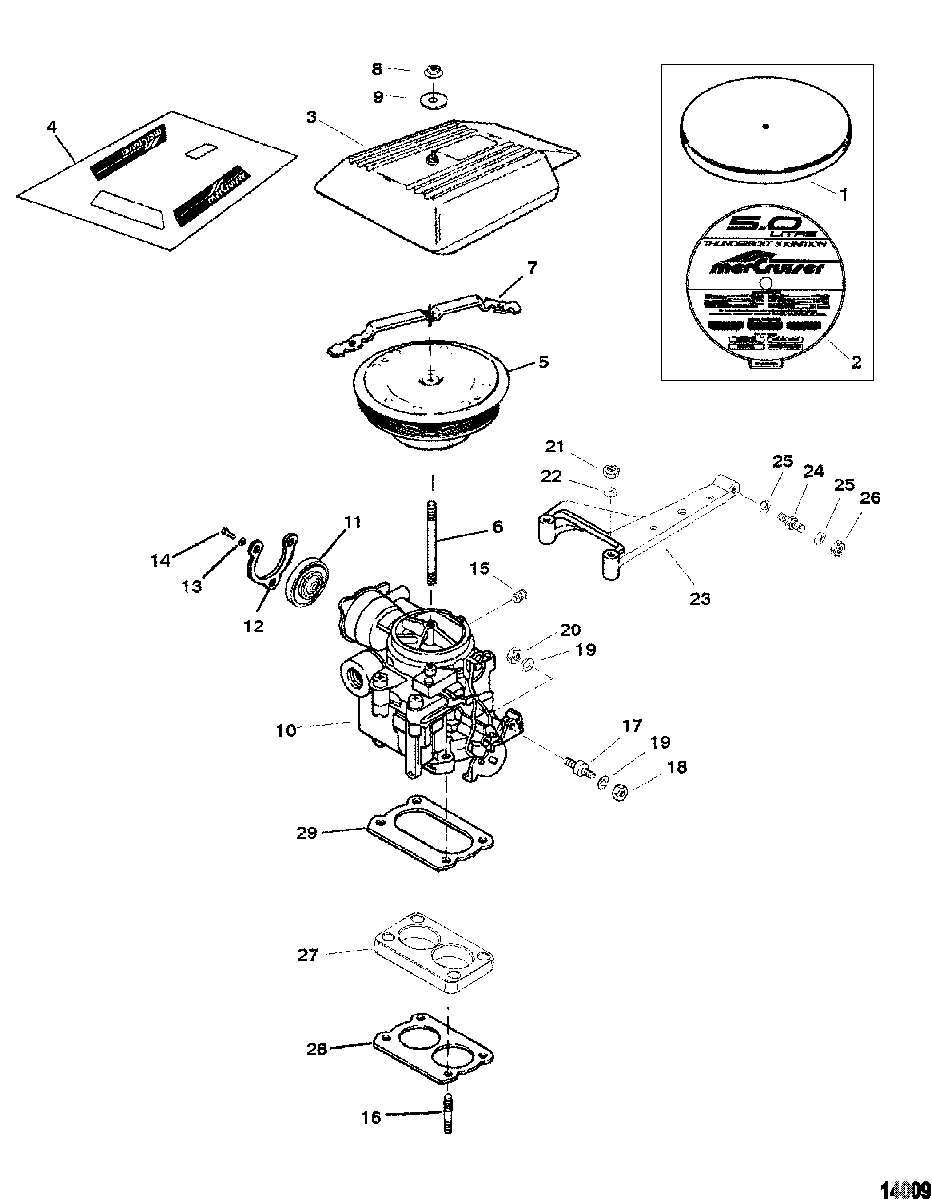

Carburetor And Throttle Linkage(Two Barrel) для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1998-2001 0L010037 THRU 0M599999

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, Carburetor
    (5.0L Alpha)
    COVER, Carburetor
    (5.0L Alpha)
  • 2
    37-8615081 DECAL SET
    (5.0L Alpha)
    DECAL SET
    (5.0L Alpha)
  • 3
    18484A3 COVER
    (5.0L Bravo And 5.7L Alpha/Bravo)
    COVER
    (5.0L Bravo And 5.7L Alpha/Bravo)
  • 4
    37-861314A10 DECAL SET
    (5.0L Bravo)
    DECAL SET
    (5.0L Bravo)
  • 4
    37-861314A12 DECAL SET
    (5.7L Alpha/Bravo)
    DECAL SET
    (5.7L Alpha/Bravo)
  • 5
    805016A1 FLAME ARRESTOR
    (With Out Molded Hose Retainer)
    FLAME ARRESTOR
    (With Out Molded Hose Retainer)
  • 5
    863200 FLAME ARRESTOR
    (With Molded Hose Retainer)
    FLAME ARRESTOR
    (With Molded Hose Retainer)
  • 6
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 7
    805313 RETAINER
    RETAINER
  • 8
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 9
    12-86400 WASHER
    WASHER
  • 10
    3310-864942A01 CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) (See " Carburetor (Mercarb)" For Breakdown)
    CARBURETOR ASSEMBLY
    (5.0L Alpha/Bravo) (See " Carburetor (Mercarb)" For Breakdown)
  • 10
    3310-864943A01 CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) (See "Carburetor (Mercarb)" For Breakdown)
    CARBURETOR ASSEMBLY
    (5.7L Alpha/Bravo) (See "Carburetor (Mercarb)" For Breakdown)
  • 11
    70125A02 COVER, Choke
    COVER, Choke
  • 12
    10-33047 SCREW
    SCREW
  • 13
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 14
    53-805140 PLATE
    PLATE
  • 15
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 16
    16-65868 STUD, (.312-18/.312-24 x 2.120)
    STUD, (.312-18/.312-24 x 2.120)
  • 16
    16-807849 STUD, (.312-18/.312-24 x 3.380)
    STUD, (.312-18/.312-24 x 3.380)
  • 17
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 18
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 19
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 20
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 21
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 22
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 23
    805489T BRACKET
    BRACKET
  • 24
    16-38525 STUD
    STUD
  • 25
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 26
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 27
    807726A2 ADAPTOR
    ADAPTOR
  • 28
    27-8079821 GASKET
    GASKET
  • 29
    27-861246 GASKET
    GASKET
  • -
    11-863001 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-861246A05 GASKET SET
    GASKET SET
