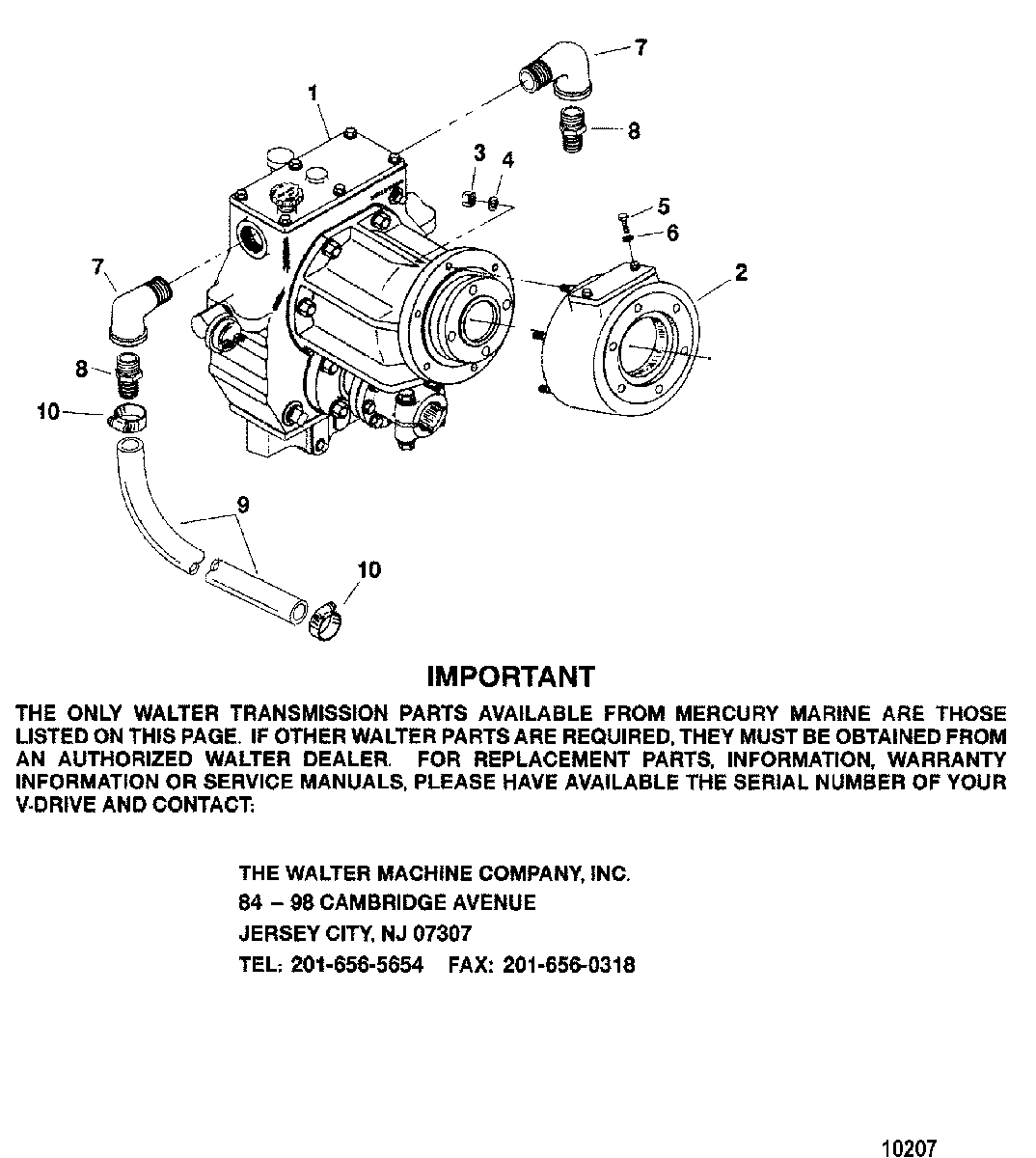

Transmission(Walter V-Drive) для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170
-
№АртикулНазвание
-
1860362A2 TRANSMISSIONTRANSMISSION
-
2860308T02 HOUSING ASSEMBLY, Adaptor (45C)
Scorpion 350HOUSING ASSEMBLY, Adaptor (45C)
Scorpion 350 -
2860308T03 HOUSING ASSEMBLY, Adaptor (63C)
Scorpion 377 HOHOUSING ASSEMBLY, Adaptor (63C)
Scorpion 377 HO -
311-86226 NUT, (.375-16)NUT, (.375-16)
-
413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
510-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
722-860378 ELBOW (90 Degree)ELBOW (90 Degree)
-
822-860379 FITTING, BarbFITTING, Barb
-
932-8M0062666 HOSE, (96.00 Inches Bulk), To Sea Water PumpHOSE, (96.00 Inches Bulk), To Sea Water Pump
-
1054-815504221 CLAMP, Worm Gear (30 - 45 mm)CLAMP, Worm Gear (30 - 45 mm)
