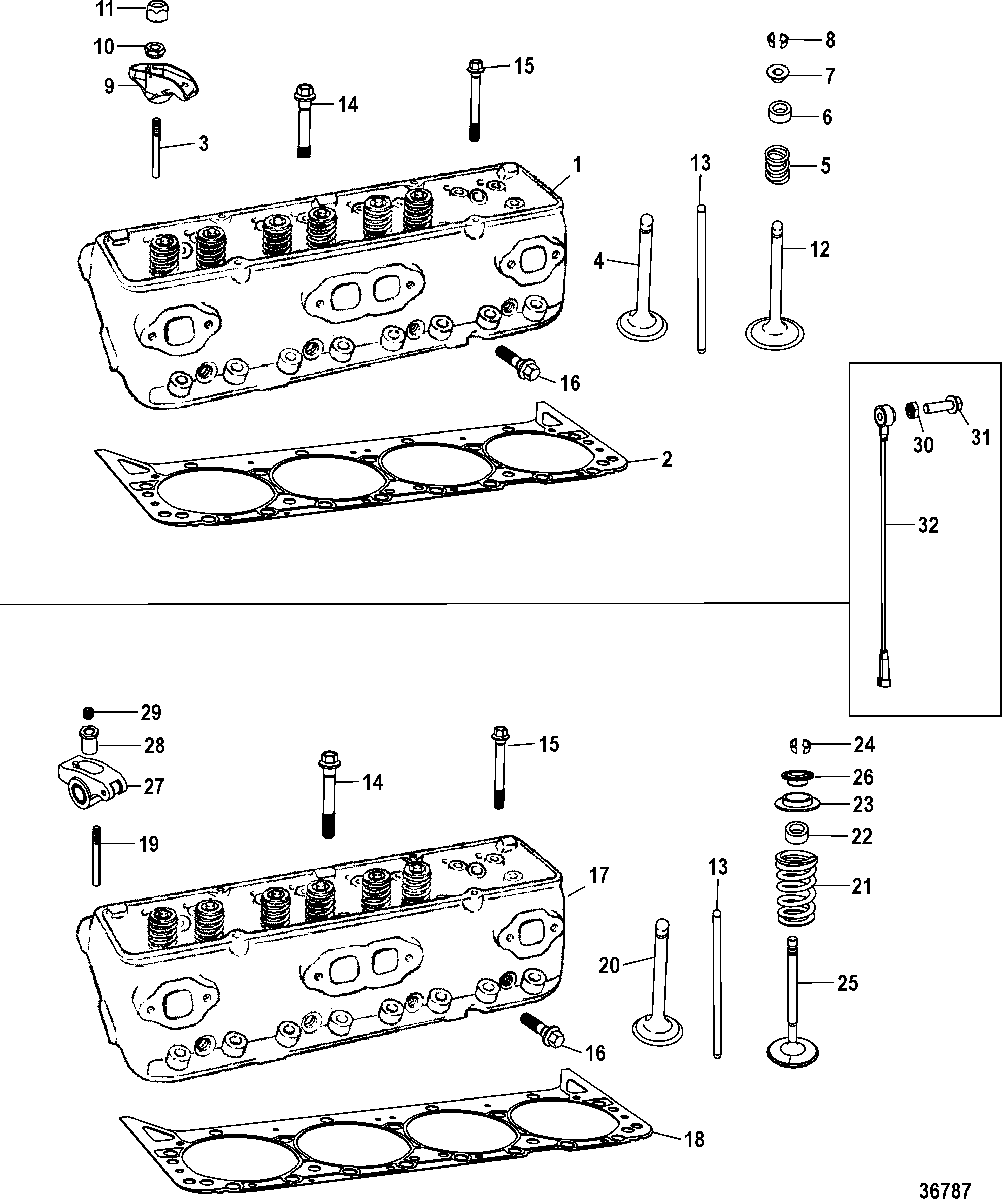

Cylinder Head Assembly для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170

  • №
    Артикул
    Название
  • 1
    900-8M0061735 CYLINDER HEAD ASSEMBLY
    Scorpion 350
    CYLINDER HEAD ASSEMBLY
    Scorpion 350
  • 2
    27-75611001 GASKET
    GASKET
  • 3
    16-34522 STUD
    STUD
  • 3
    16-34521 STUD
    STUD
  • 4
    8M2010902 VALVE, Intake
    Scorpion 350
    VALVE, Intake
    Scorpion 350
  • 5
    24-483471 SPRING
    SPRING
  • 6
    26-8M0050563 SEAL, Intake
    SEAL, Intake
  • 6
    26-804507 SEAL, Exhaust
    SEAL, Exhaust
  • 7
    483481 CAP
    CAP
  • 8
    28-547971 KEY
    KEY
  • 9
    35329 ARM KIT, Rocker
    Scorpion 350
    ARM KIT, Rocker
    Scorpion 350
  • 10
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 11
    11-34516 NUT
    NUT
  • 12
    8243171 VALVE, Exhaust (Standard)
    (Included with Cylinder Head)
    VALVE, Exhaust (Standard)
    (Included with Cylinder Head)
  • 12
    8243181 VALVE, Exhaust (.030 Oversize)
    VALVE, Exhaust (.030 Oversize)
  • 13
    173391 PUSH ROD
    PUSH ROD
  • 14
    10-119671 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 15
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 16
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • -
    900-879288A53 CYLINDER HEAD ASSEMBLY
    Scorpion 377 HO
    CYLINDER HEAD ASSEMBLY
    Scorpion 377 HO
  • 17
    900-879288A53 CYLINDER HEAD
    Scorpion 377 HO
    CYLINDER HEAD
    Scorpion 377 HO
  • 18
    27-75611001 GASKET
    GASKET
  • 19
    16-8M2016987 STUD, Rocker Arm
    STUD, Rocker Arm
  • 20
    8M2017194 VALVE, Intake
    VALVE, Intake
  • 21
    24-8M2017027 SPRING
    SPRING
  • 22
    26-8M0050563 SEAL, Intake
    SEAL, Intake
  • 22
    26-804507 SEAL, Exhaust
    SEAL, Exhaust
  • 23
    8M2016999 RETAINER, Spring
    RETAINER, Spring
  • 24
    8M2017005 LOCK, Spring
    LOCK, Spring
  • 25
    8M2017196 VALVE, Exhaust, Exhaust
    VALVE, Exhaust, Exhaust
  • 26
    17-8M2016998 LOCATOR, Spring
    LOCATOR, Spring
  • 27
    8M2013606 ARM KIT, Rocker
    Scorpion 377 HO
    ARM KIT, Rocker
    Scorpion 377 HO
  • 28
    11-8M2013601 NUT
    NUT
  • 29
    NSS NOT SOLD SEPARATE, SET SCREW
    NOT SOLD SEPARATE, SET SCREW
  • 30
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 31
    10-865982007 SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
    SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
  • 32
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • -
    27-75611A03 GASKET SET, Cylinder Head
    GASKET SET, Cylinder Head
