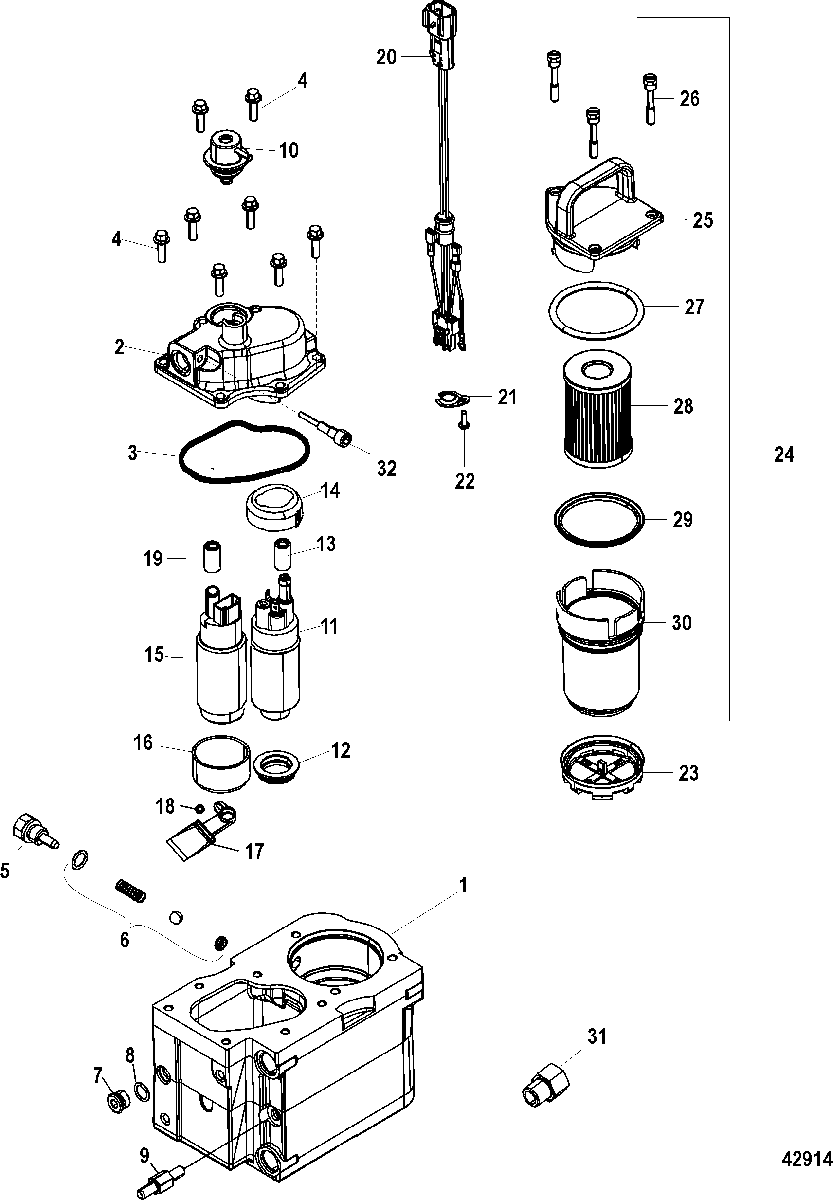

Fuel Module Components -Bravo(SN 1A091622 and Below) для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170
-
№АртикулНазвание
-
-864650A05 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
1892664T01 HOUSING, Fuel ModuleHOUSING, Fuel Module
-
28M0130861 COVER, Fuel Module HousingCOVER, Fuel Module Housing
-
326-892683 SEALSEAL
-
410-892684 SCREWSCREW
-
5892670A01 CHECK VALVE KITCHECK VALVE KIT
-
6NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
7NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
8NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
916-865326 STUD, (M8 x 30)STUD, (M8 x 30)
-
10892681 REGULATORREGULATOR
-
11866170A01 PUMP ASSEMBLY, Fuel - Low PressurePUMP ASSEMBLY, Fuel - Low Pressure
-
12NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
13NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
14NSS NOT SOLD SEPARATE, Isolator, Lift PumpNOT SOLD SEPARATE, Isolator, Lift Pump
-
15866169T01 PUMP ASSEMBLY, Fuel - High PressurePUMP ASSEMBLY, Fuel - High Pressure
-
16NSS NOT SOLD SEPARATE, IsolatorNOT SOLD SEPARATE, Isolator
-
1735-8M2018790 FILTER, Pump SuctionFILTER, Pump Suction
-
1854-8M2018792 CLIPCLIP
-
19NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
2084-8M0056175 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
21NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
22NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
2335-892665 FILTERFILTER
-
24892687A02 CARTRIDGE ASSEMBLY, Fuel FilterCARTRIDGE ASSEMBLY, Fuel Filter
-
25NSS NOT SOLD SEPARATE, Cap, Fuel Filter CartridgeNOT SOLD SEPARATE, Cap, Fuel Filter Cartridge
-
26NSS NOT SOLD SEPARATE, ScrewNOT SOLD SEPARATE, Screw
-
26NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
2835-8M0093688 FILTERFILTER
-
29NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
30NSS NOT SOLD SEPARATE, Cup, Fuel Filter CartridgeNOT SOLD SEPARATE, Cup, Fuel Filter Cartridge
-
3122-88517 FITTING, ReducingFITTING, Reducing
-
3210-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
