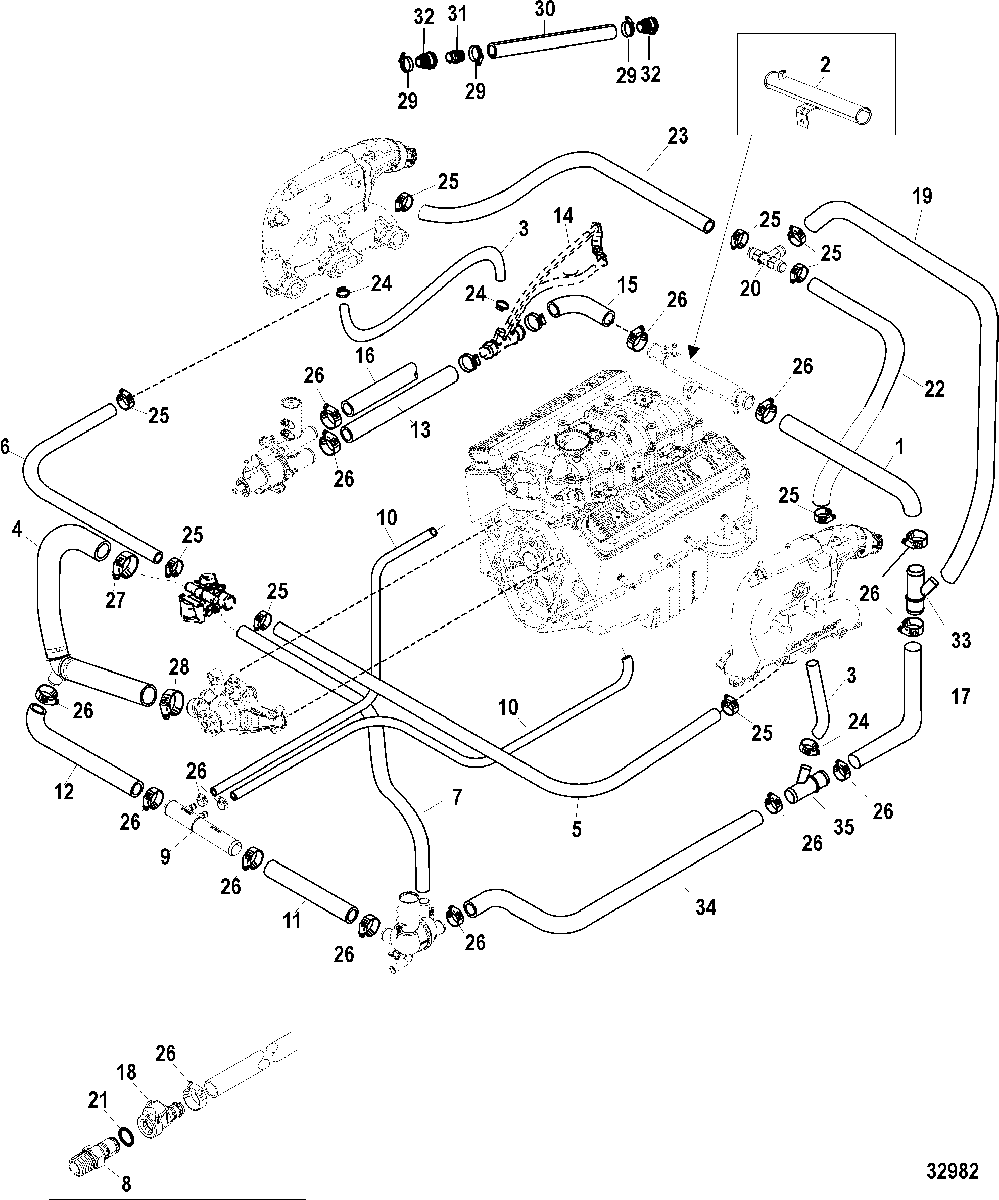

Standard Cooling System, INLINE для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170
-
№АртикулНазвание
-
132-8M2004196 HOSE, Power Steering Cooler to Y-FittingHOSE, Power Steering Cooler to Y-Fitting
-
2863841T TUBE, WaterTUBE, Water
-
332-8M0062634 HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
Air Actuated Drain (Port, 9 Inches - Starbard, 3.5 Inches)HOSE, (44.00 Inches Bulk), Exhaust Manifold to Orifice Fitting
Air Actuated Drain (Port, 9 Inches - Starbard, 3.5 Inches) -
432-863456A1 HOSE ASSEMBLY, Thermostat Housing to Circulating PumpHOSE ASSEMBLY, Thermostat Housing to Circulating Pump
-
532-864393 HOSE, Thermostat Housing to Port Manifold
Air ActuatedHOSE, Thermostat Housing to Port Manifold
Air Actuated -
532-862139 HOSE, Thermostat Housing to Port Manifold
7 PointHOSE, Thermostat Housing to Port Manifold
7 Point -
632-863459 HOSE, Thermostat Housing to Starboard Manifold
Air ActuatedHOSE, Thermostat Housing to Starboard Manifold
Air Actuated -
632-807697 HOSE, Thermostat Housing to Starboard Manifold
7 PointHOSE, Thermostat Housing to Starboard Manifold
7 Point -
732-8M2003797 HOSE, Distribution Housing to Thermostat HousingHOSE, Distribution Housing to Thermostat Housing
-
822-862603 FITTING, Male Quick Connector, Threaded - Engine BlockFITTING, Male Quick Connector, Threaded - Engine Block
-
922-864989A01 FITTING ASSEMBLY, Lower Distribution
Air ActuatedFITTING ASSEMBLY, Lower Distribution
Air Actuated -
1032-8M0062590 HOSE, Cylinder Block Drain to Distribution Fitting
Port 23 Inches, Starboard 17 InchesHOSE, Cylinder Block Drain to Distribution Fitting
Port 23 Inches, Starboard 17 Inches -
1132-863490 HOSE, Water Drain Accumulator to Distribution Fitting
Air ActuatedHOSE, Water Drain Accumulator to Distribution Fitting
Air Actuated -
1132-8M2010477 HOSE, Distribution Housing to Circulation Pump
7 PointHOSE, Distribution Housing to Circulation Pump
7 Point -
1232-865394 HOSE, Air ActuatedHOSE, Air Actuated
-
1332-8M2021656 HOSE, Sea Pump to Water Orifice
7 Point DrainHOSE, Sea Pump to Water Orifice
7 Point Drain -
1332-865234 HOSE, Sea Pump to Water Orifice
Air Actuated DrainHOSE, Sea Pump to Water Orifice
Air Actuated Drain -
1532-8M2021655 HOSE, Water Orifice to Power Steering CoolerHOSE, Water Orifice to Power Steering Cooler
-
1632-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water PumpHOSE, (96.00 Inches Bulk), Transom Water Pick Up to Sea Water Pump
-
1732-8M2008992 HOSE, Y-Fitting to Water Distribution Housing
7 PointHOSE, Y-Fitting to Water Distribution Housing
7 Point -
1732-8M2004199 HOSE, Y-Fitting to Drain Fitting
Air ActuatedHOSE, Y-Fitting to Drain Fitting
Air Actuated -
1822-862225 FITTING, Pushlock - Block Drian HoseFITTING, Pushlock - Block Drian Hose
-
1932-8M2003791 HOSE, Y-Fitting to Tee FittingHOSE, Y-Fitting to Tee Fitting
-
2022-8M2014000 FITTING, Tee, BlueFITTING, Tee, Blue
-
2125-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
2232-8M2005437 HOSE, Tee Fitting to Port ElbowHOSE, Tee Fitting to Port Elbow
-
2332-8M2005436 HOSE, Tee Fitting to Starboard ElbowHOSE, Tee Fitting to Starboard Elbow
-
2454-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
2554-815504216 CLAMP, (25 - 40 mm)CLAMP, (25 - 40 mm)
-
2654-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
2754-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2854-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2954-815504221 CLAMP, Worm Gear (30 - 45 mm)CLAMP, Worm Gear (30 - 45 mm)
-
3032-8M0062653 HOSE, (4.00 Inches)HOSE, (4.00 Inches)
-
3122-865362 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3222-865324 QUICK CONNECT, Transom HoseQUICK CONNECT, Transom Hose
-
3322-8M2003728 Y-FITTINGY-FITTING
-
3432-866331 HOSE
Air ActuatedHOSE
Air Actuated -
3522-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
Air ActuatedFITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
Air Actuated
