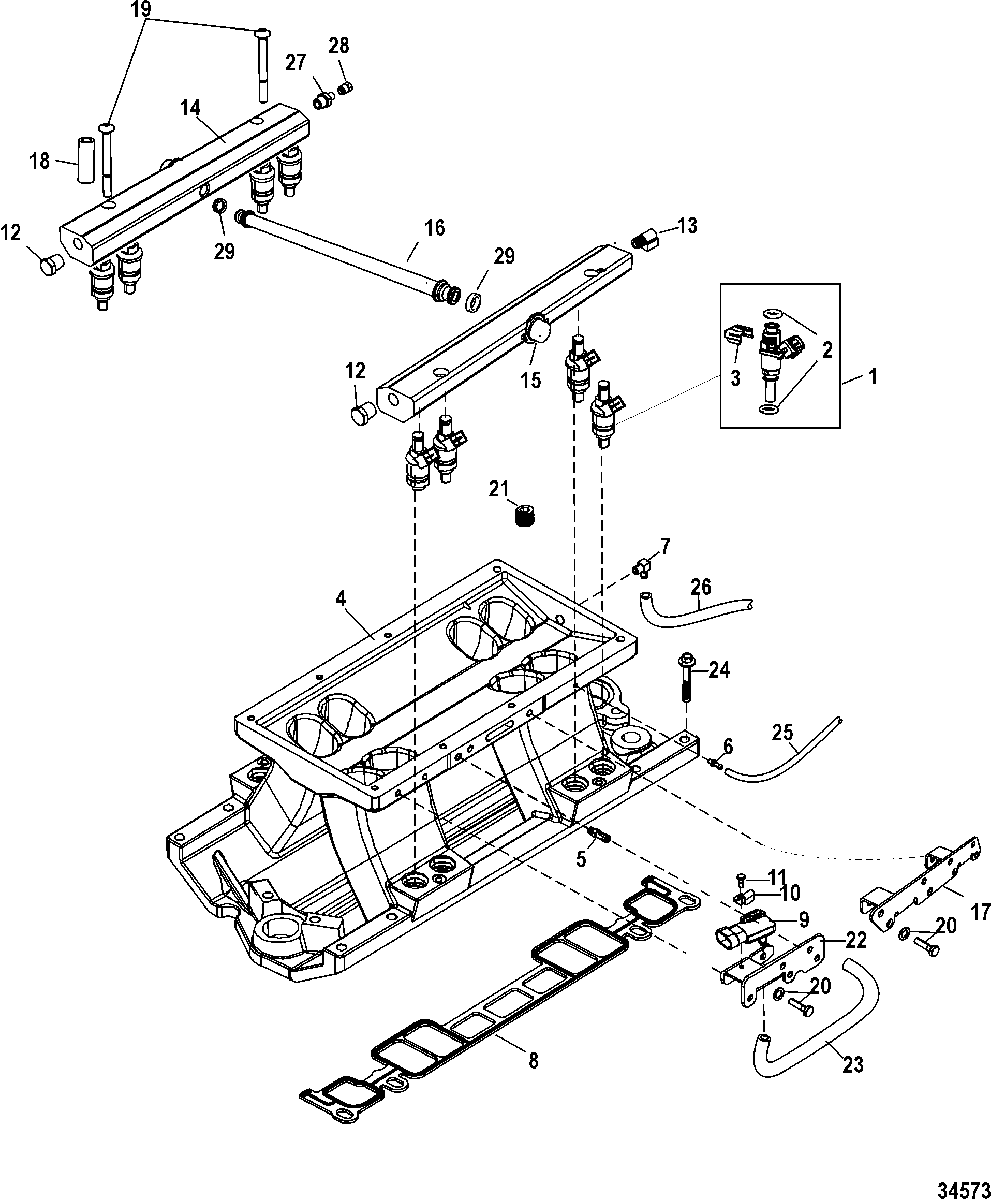

Intake Manifold And Fuel Rail для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170

  • №
    Артикул
    Название
  • 1
    8M2005198 INJECTOR ASSEMBLY, Fuel
    INJECTOR ASSEMBLY, Fuel
  • 2
    879150A09 SEAL KIT (Each Kit Contains 4 Upper and Lower Seals)
    SEAL KIT (Each Kit Contains 4 Upper and Lower Seals)
  • 3
    8M2001570 CLIP, Fuel Injector
    CLIP, Fuel Injector
  • 4
    879288T69 MANIFOLD ASSEMBLY, Intake
    350
    MANIFOLD ASSEMBLY, Intake
    350
  • 4
    879288T77 MANIFOLD ASSEMBLY, Intake
    377 HO
    MANIFOLD ASSEMBLY, Intake
    377 HO
  • 5
    22-805691 FITTING, (.250) Barb
    FITTING, (.250) Barb
  • 6
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 7
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 8
    27-807473A1 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 9
    861425 SENSOR, Manifold Air Pressure
    SENSOR, Manifold Air Pressure
  • 10
    861198 CLIP
    CLIP
  • 11
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 12
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 13
    22-93385 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 14
    879172A12 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 15
    895025 DAMPER
    DAMPER
  • NS
    10-40056103 SCREW, (M5 x 6), Damper
    SCREW, (M5 x 6), Damper
  • 16
    8M2010369 TUBE, Fuel Crossover
    TUBE, Fuel Crossover
  • 17
    879288T37 BRACKET
    BRACKET
  • 18
    8M2011849 SPACER, Fuel Rail
    SPACER, Fuel Rail
  • 19
    10-8M2012156 SCREW, (.25-20)
    SCREW, (.25-20)
  • 20
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 21
    22-860075 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 22
    865220T BRACKET
    BRACKET
  • 23
    32-8M0040618 HOSE, (54.00 Inches Bulk), Cut to Appropriate Length
    HOSE, (54.00 Inches Bulk), Cut to Appropriate Length
  • 24
    10-881892 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 25
    32-8M0063567 HOSE, (58.00 Inches Bulk)
    HOSE, (58.00 Inches Bulk)
  • 26
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 27
    22-805408 VALVE, Rail Pressure Service
    VALVE, Rail Pressure Service
  • 28
    19-8M0046566 CAP, Shrader Valve - Brass, Fuel Pressure Service Valve
    CAP, Shrader Valve - Brass, Fuel Pressure Service Valve
  • 29
    26-863151 SEAL, Quad Ring
    SEAL, Quad Ring
