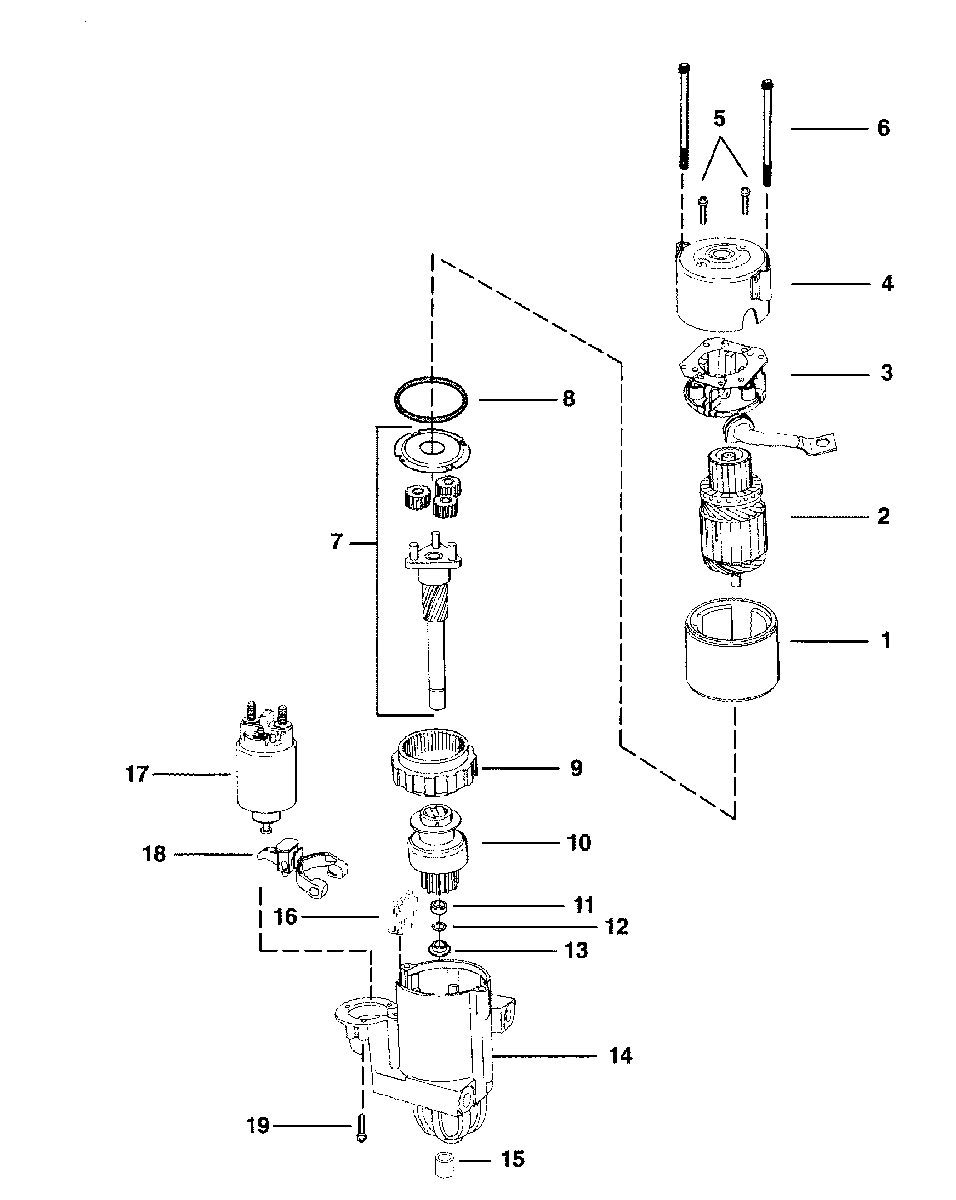

STARTER MOTOR для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR
    (PG 260)
    STARTER MOTOR
    (PG 260)
  • 1
    50-863007A1 STARTER MOTOR
    (PG 260 F-1)
    STARTER MOTOR
    (PG 260 F-1)
  • 2
    NSS ARMATURE
    ARMATURE
  • 3
    NSS BRUSH HOLDER AND SPRING
    BRUSH HOLDER AND SPRING
  • 4
    NSS FRAME
    FRAME
  • 5
    NSS SCREW
    SCREW
  • 6
    NSS BOLT-THRU
    (PG 260)
    BOLT-THRU
    (PG 260)
  • 6
    16-803004 BOLT-THRU
    (PG 260 F-1)
    BOLT-THRU
    (PG 260 F-1)
  • 6
    10-803005 BOLT - THRU
    (PG 260 F-1)
    BOLT - THRU
    (PG 260 F-1)
  • 7
    NSS SHAFT AND GEAR
    SHAFT AND GEAR
  • 8
    NSS GASKET
    GASKET
  • 9
    NSS GEAR
    GEAR
  • 10
    NSS DRIVE
    DRIVE
  • 11
    33291 COLLAR
    COLLAR
  • 12
    53-33290 RING-RETAINING
    RING-RETAINING
  • 13
    NSS COLLAR-THRUST
    COLLAR-THRUST
  • 14
    809459 DRIVE HOUSING
    DRIVE HOUSING
  • 15
    23-814476 BUSHING
    BUSHING
  • 16
    NSS GROMMET
    GROMMET
  • 17
    809463A1 SOLENOID
    SOLENOID
  • 18
    NSS LEVER
    LEVER
  • 19
    NSS SCREW
    SCREW
