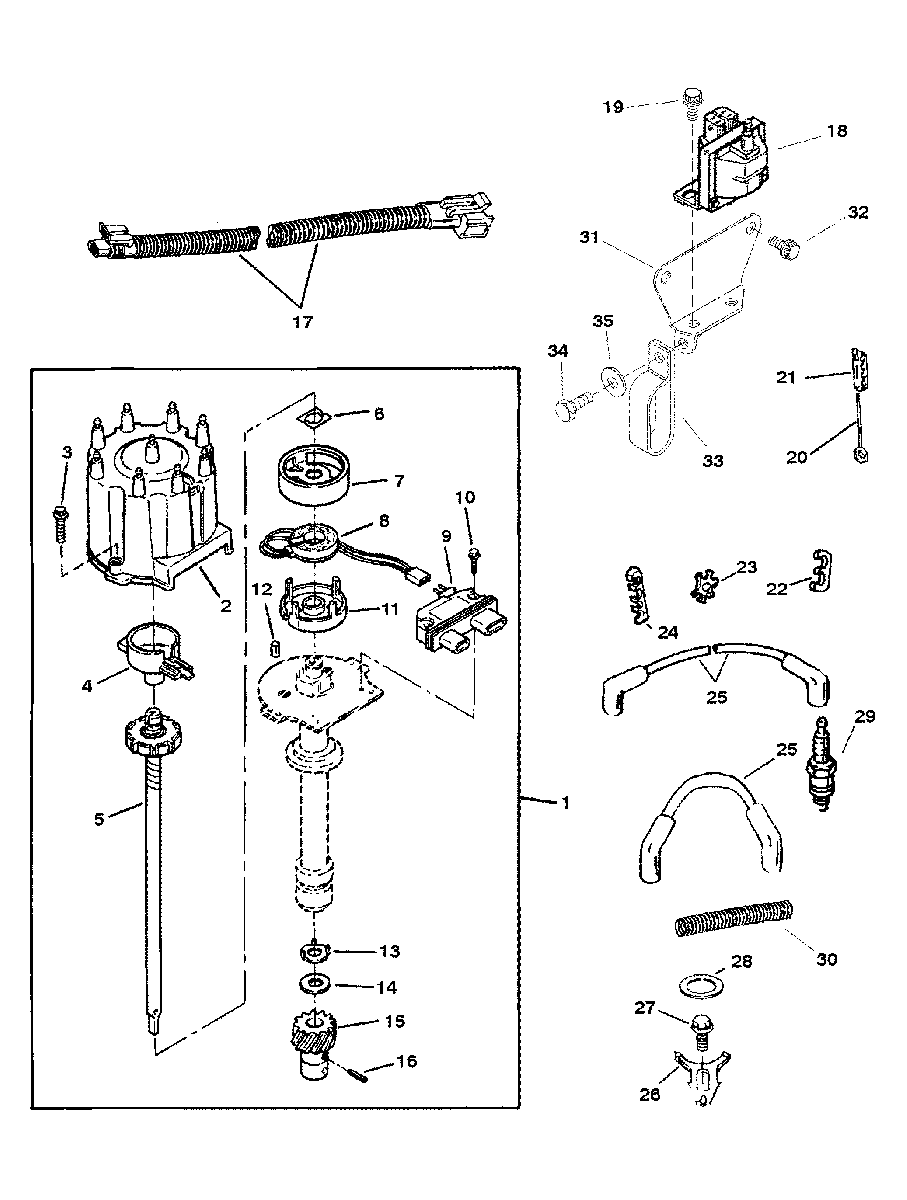

DISTRIBUTOR AND IGNITION COMPONENTS для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    805222A1 DISTRIBUTOR ASSEMBLY
    DISTRIBUTOR ASSEMBLY
  • 2
    808483T3 CAP
    CAP
  • 3
    10-808491 SCREW
    SCREW
  • 4
    8M6001253 ROTOR
    ROTOR
  • 5
    808485T SHAFT AND MAGNET
    SHAFT AND MAGNET
  • 6
    808487 RETAINER
    RETAINER
  • 7
    808486 SHIELD
    SHIELD
  • 8
    811639T COIL
    COIL
  • 9
    8M0123099 MODULE
    MODULE
  • 10
    10-811638 SCREW
    SCREW
  • 11
    811641 POLE PIECE
    POLE PIECE
  • 12
    17-808488 PIN
    PIN
  • 13
    12-46350 WASHER
    WASHER
  • 14
    12-808489 WASHER
    WASHER
  • 15
    43-808490 DRIVE GEAR
    DRIVE GEAR
  • 16
    17-34109 PIN
    PIN
  • 17
    84-817376T01 HARNESS-DISTRIBUTOR MODULE TO IGNITION COIL
    HARNESS-DISTRIBUTOR MODULE TO IGNITION COIL
  • 18
    898253T27 COIL-IGNITION
    COIL-IGNITION
  • 19
    10-805189 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 20
    16-90096A1 STUD ASSEMBLY
    STUD ASSEMBLY
  • 21
    54-72821 RETAINER
    RETAINER
  • 22
    54676 RETAINER (2 WIRE)
    RETAINER (2 WIRE)
  • 23
    32783 RETAINER (3 WIRE)
    RETAINER (3 WIRE)
  • 24
    32784 RETAINER (4 WIRE)
    RETAINER (4 WIRE)
  • 25
    84-816608Q78 CABLE KIT-IGNITION
    (S/N 0K040001 THRU 0K999999)
    CABLE KIT-IGNITION
    (S/N 0K040001 THRU 0K999999)
  • 25
    84-816608Q81 CABLE KIT-IGNITION
    (S/N 0L002700 AND UP)
    CABLE KIT-IGNITION
    (S/N 0L002700 AND UP)
  • 26
    54-88731 CLAMP
    CLAMP
  • 27
    10-805559 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 28
    27-344863 GASKET-DISTRIBUTOR
    GASKET-DISTRIBUTOR
  • 29
    33-816336Q SPARK PLUG
    SPARK PLUG
  • 30
    32-8M0086022 TUBING-COIL IGNITION CABLE
    TUBING-COIL IGNITION CABLE
  • 31
    807673T BRACKET-COIL
    BRACKET-COIL
  • 32
    10-805189 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 33
    54-97521 CLAMP (DOUBLE TUBE)
    (S/N 0K040001 THRU 0K999999)
    CLAMP (DOUBLE TUBE)
    (S/N 0K040001 THRU 0K999999)
  • 34
    10-98260 SCREW (3/8-16 X 5/8 IN.)
    (S/N 0K040001 THRU 0K999999)
    SCREW (3/8-16 X 5/8 IN.)
    (S/N 0K040001 THRU 0K999999)
  • 35
    12-20553 WASHER
    (S/N 0K040001 THRU 0K999999)
    WASHER
    (S/N 0K040001 THRU 0K999999)
  • -
    27-807670A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
