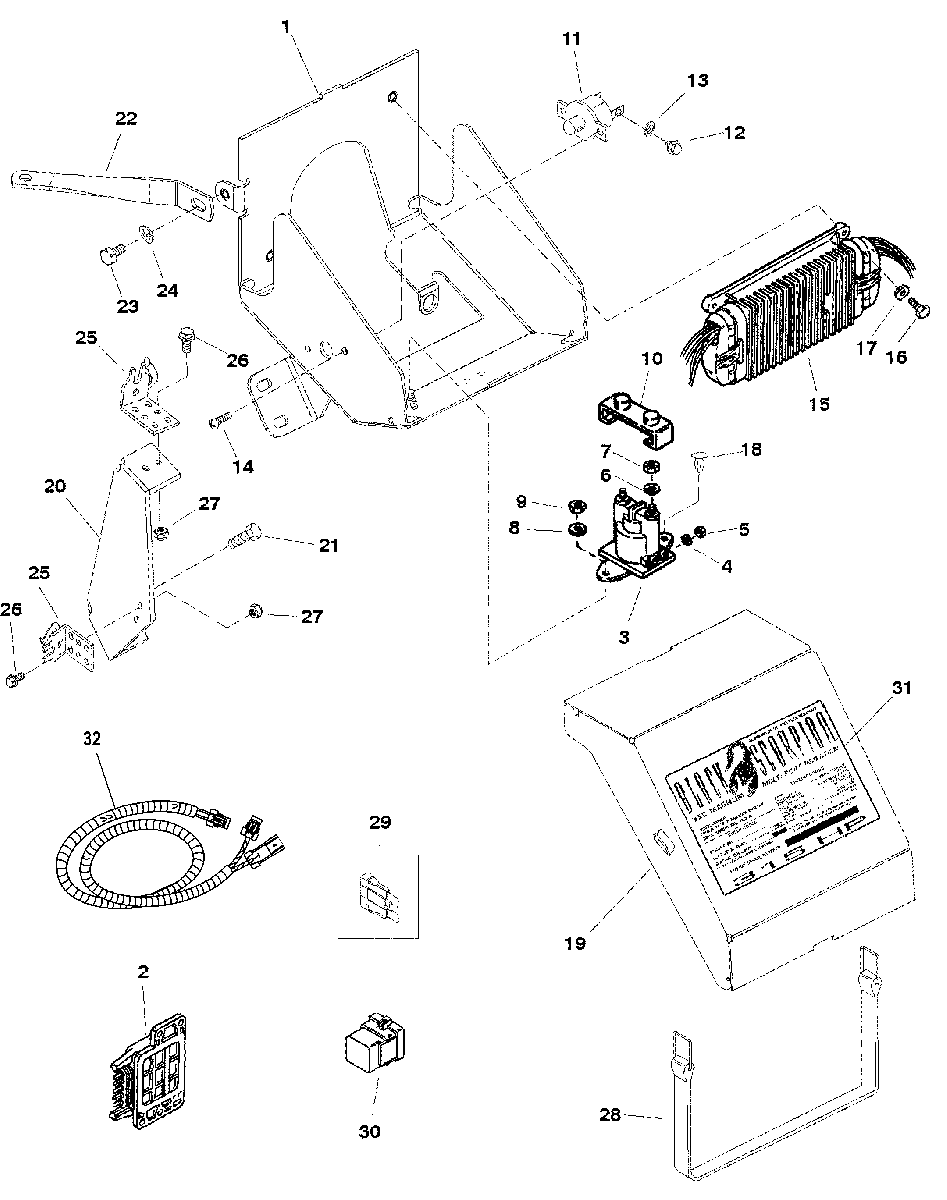

ELECTRICAL BOX AND COMPONENTS (S/N 0L002700 AND UP) для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    861071T BOX-ELECTRICAL COMPONENTS
    BOX-ELECTRICAL COMPONENTS
  • 2
    806611T MODULE ASSEMBLY-KNOCK
    MODULE ASSEMBLY-KNOCK
  • 3
    89-96158T SOLENOID-STARTER
    SOLENOID-STARTER
  • 4
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 5
    11-68219 NUT (10-32)
    NUT (10-32)
  • 6
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 7
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 8
    12-35462 WASHER
    WASHER
  • 9
    11-64015 NUT (1/4-20)
    NUT (1/4-20)
  • 10
    85-97861 INSULATOR-STARTER SOLENOID
    INSULATOR-STARTER SOLENOID
  • 11
    88-11178A01 BREAKER-CIRCUIT
    BREAKER-CIRCUIT
  • 12
    10-68513 SCREW (#10-32 X 3/8 IN.)
    SCREW (#10-32 X 3/8 IN.)
  • 13
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 14
    10-57583T SCREW (#8-32 X 3/8 IN.)
    SCREW (#8-32 X 3/8 IN.)
  • 15
    860432T2 MODULE-ECM
    (350)(S/N 0L002700 THRU 0L005600)
    MODULE-ECM
    (350)(S/N 0L002700 THRU 0L005600)
  • 15
    861636T1 MODULE -ECM
    (350)(S/N 0L005601 THRU 0L304549)(USE WITH 90MM TBU)
    MODULE -ECM
    (350)(S/N 0L005601 THRU 0L304549)(USE WITH 90MM TBU)
  • 15
    861928R2 MODULE-ECM
    (350)(S/N 0L304550 AND UP) (USE WITH 90MM TBU)
    MODULE-ECM
    (350)(S/N 0L304550 AND UP) (USE WITH 90MM TBU)
  • 15
    862905R1 MODULE -ECM
    (6.2L)(S/N 0L670015 THRU 0L679130)
    MODULE -ECM
    (6.2L)(S/N 0L670015 THRU 0L679130)
  • 15
    862905R2 MODULE-ECM
    (6.2L)(S/N 0L679131 and Up)
    MODULE-ECM
    (6.2L)(S/N 0L679131 and Up)
  • 16
    10-76596 SCREW
    (1/4-20 x 1-1/4 IN.)
    SCREW
    (1/4-20 x 1-1/4 IN.)
  • 16
    10-89766 SCREW
    (10-32 x 5/8)
    SCREW
    (10-32 x 5/8)
  • 17
    12-20533 WASHER
    WASHER
  • 18
    861426 FASTENER-PANEL
    FASTENER-PANEL
  • 19
    861072T LID-ELECTRICAL BOX
    LID-ELECTRICAL BOX
  • 20
    861073T02 BRACKET
    BRACKET
  • 21
    10-65746 SCREW (1/4-20 X 3/4 IN.)
    SCREW (1/4-20 X 3/4 IN.)
  • 22
    54-807966 STRAP
    STRAP
  • 23
    10-54615 SCREW (1/4-20 X 5/8 IN.)
    SCREW (1/4-20 X 5/8 IN.)
  • 24
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 25
    807485T BRACKET
    BRACKET
  • 26
    10-89766 SCREW (#10-32 X 5/8 IN.)
    SCREW (#10-32 X 5/8 IN.)
  • 27
    11-826709106 NUT (#10-32)
    NUT (#10-32)
  • 28
    92-861451 STRAP-RUBBER
    STRAP-RUBBER
  • 29
    862647 FUSE
    (10 AMP)
    FUSE
    (10 AMP)
  • 29
    88-804642 FUSE
    (15 AMP)
    FUSE
    (15 AMP)
  • 30
    86-865202T RELAY-FUEL PUMP/IGNITION SYSTEM
    RELAY-FUEL PUMP/IGNITION SYSTEM
  • 31
    37-861380 DECAL-ENGINE SPEC.
    (315 HP)(S/N 0L002700 THRU 0L005899)
    DECAL-ENGINE SPEC.
    (315 HP)(S/N 0L002700 THRU 0L005899)
  • 31
    37-8613801 DECAL-ENGINE SPEC.
    (315 HP)(S/N 0L005900 AND UP) (USE WITH 90MM TBI)
    DECAL-ENGINE SPEC.
    (315 HP)(S/N 0L005900 AND UP) (USE WITH 90MM TBI)
  • 31
    37-861876 DECAL-ENGINE SPEC.
    (350)(330 HP)
    DECAL-ENGINE SPEC.
    (350)(330 HP)
  • 31
    37-862959 DECAL-ENGINE SPEC.
    (6.2L)(340 HP)
    DECAL-ENGINE SPEC.
    (6.2L)(340 HP)
  • 32
    84-862262A2 HARNESS ASSEMBLY- Boost Pump
    HARNESS ASSEMBLY- Boost Pump
