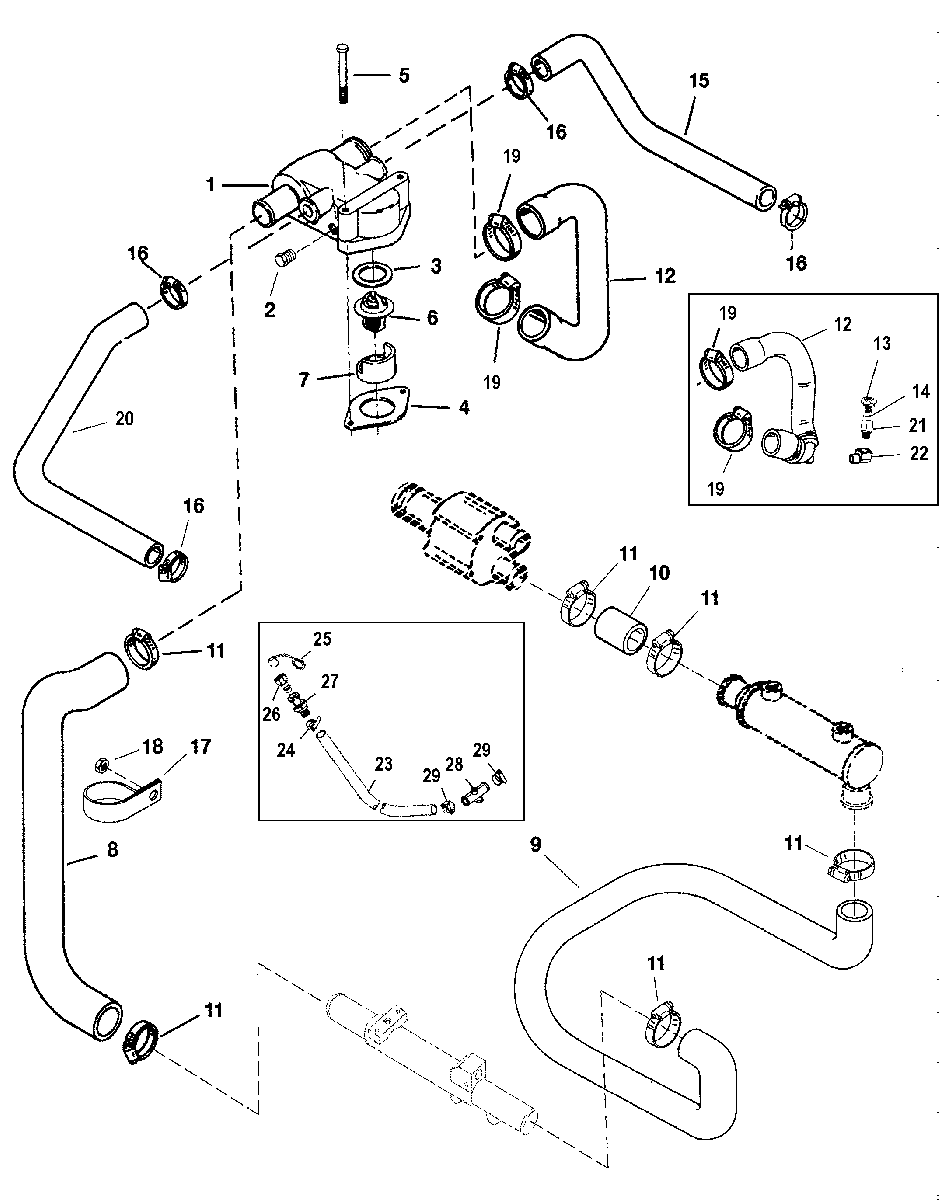

STANDARD COOLING SYSTEM для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    860256A4 HOUSING ASSEMBLY-THERMOSTAT
    HOUSING ASSEMBLY-THERMOSTAT
  • 2
    22-32803 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 3
    27-806871 GASKET-THERMOSTAT
    GASKET-THERMOSTAT
  • 4
    27-530451 GASKET
    GASKET
  • 5
    10-47688 SCREW (3/8-16 X 2-3/4 IN.)
    SCREW (3/8-16 X 2-3/4 IN.)
  • 6
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 7
    23-806922 SLEEVE
    SLEEVE
  • 8
    32-808033 HOSE-THERMOSTAT HOUSING TO FUEL COOLER
    HOSE-THERMOSTAT HOUSING TO FUEL COOLER
  • 9
    32-808032 HOSE-FUEL COOLER TO TRANSMISSION OIL COOLER
    HOSE-FUEL COOLER TO TRANSMISSION OIL COOLER
  • 10
    32-866331 HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
    (Cut to 4 IN.)
    HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
    (Cut to 4 IN.)
  • 11
    54-815504222 CLAMP-HOSE
    (1.98 Dia.)
    CLAMP-HOSE
    (1.98 Dia.)
  • 12
    32-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    (Use W/O Drain Plug)
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
    (Use W/O Drain Plug)
  • 12
    32-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    (Use W/ Drain Plug)
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
    (Use W/ Drain Plug)
  • 13
    22-8M0119211 DRAIN PLUG
    DRAIN PLUG
  • 14
    25-62706 O RING
    O RING
  • 15
    32-807697 HOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
    HOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
  • 16
    54-815504216 CLAMP-HOSE
    (1.56 Dia.)
    CLAMP-HOSE
    (1.56 Dia.)
  • 17
    54-816398 CLIP
    CLIP
  • 18
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
  • 19
    54-815504232 CLAMP
    (2.50 Dia.)
    CLAMP
    (2.50 Dia.)
  • 20
    32-8066351 HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
    HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
  • 21
    22-860088 FITTING
    FITTING
  • 22
    22-46982 FITTING (90 Degree)
    FITTING (90 Degree)
  • 23
    32-8M0062634 HOSE (Cut to 39 IN.)
    (6.2L)
    HOSE (Cut to 39 IN.)
    (6.2L)
  • 24
    54-815504512 CLAMP (1.30 Dia.)
    (6.2L)
    CLAMP (1.30 Dia.)
    (6.2L)
  • 25
    19-858240 DUST CAP
    (6.2L)
    DUST CAP
    (6.2L)
  • 26
    22-857175 PLUG-QUICK CONNECT
    (6.2L)
    PLUG-QUICK CONNECT
    (6.2L)
  • 27
    22-861406 SOCKET-QUICK CONNECT
    (6.2L)
    SOCKET-QUICK CONNECT
    (6.2L)
  • 28
    22-862993 Y-FITTING
    (6.2L)
    Y-FITTING
    (6.2L)
  • 29
    54-815504520 CLAMP (1.75 Dia.)
    (6.2L)
    CLAMP (1.75 Dia.)
    (6.2L)
  • -
    19-8M0074364 COVER-HOSE CLAMP END
    COVER-HOSE CLAMP END
  • -
    27-807670A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
