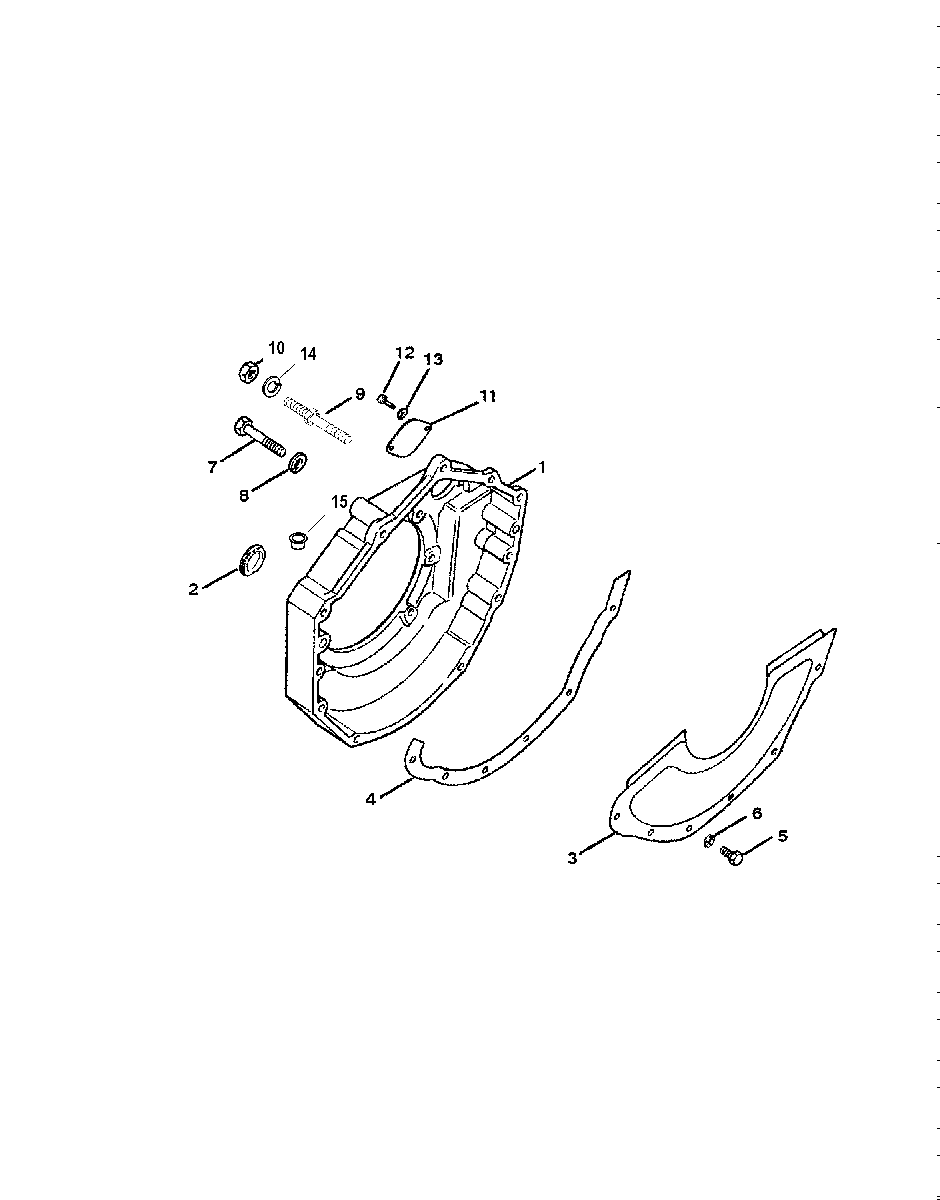

FLYWHEEL HOUSING для Mercruiser - BLACK SCORPION MX 6.2L SKI (GEN+) V-8 2001-2002 0L670015 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING-FLYWHEEL
    HOUSING-FLYWHEEL
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER ASSEMBLY
    COVER ASSEMBLY
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW (1/4-20 X 1/2 IN.)
    SCREW (1/4-20 X 1/2 IN.)
  • 6
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 7
    10-47277 SCREW
    (5/16-24 X 3/4 IN.)
    SCREW
    (5/16-24 X 3/4 IN.)
  • 7
    10-34353 SCREW
    (3/8-16 X 1 IN.)
    SCREW
    (3/8-16 X 1 IN.)
  • 7
    10-47688 SCREW
    (3/8-16 X 2-3/4 IN.)
    SCREW
    (3/8-16 X 2-3/4 IN.)
  • 7
    10-37612 SCREW
    (3/8-16 X 1-1/4 IN.)
    SCREW
    (3/8-16 X 1-1/4 IN.)
  • 8
    13-39107 LOCKWASHER
    (5/16 IN.)
    LOCKWASHER
    (5/16 IN.)
  • 8
    13-35048 LOCKWASHER
    (3/8 IN.)
    LOCKWASHER
    (3/8 IN.)
  • 9
    16-8M2004610 STUD-GROUNDING
    (350)
    STUD-GROUNDING
    (350)
  • 9
    16-861316 STUD
    (6.2L)
    STUD
    (6.2L)
  • 10
    11-32219 NUT (3/8-16)
    (350)
    NUT (3/8-16)
    (350)
  • 10
    11-82671112 NUT
    (6.2L)
    NUT
    (6.2L)
  • 11
    939201 PLATE
    PLATE
  • 12
    10-92913 SCREW (7/16-14 X 3/4 IN.)
    SCREW (7/16-14 X 3/4 IN.)
  • 13
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 14
    13-35048 LOCKWASHER
    (350)
    LOCKWASHER
    (350)
  • 15
    19-38606 PLUG
    PLUG
