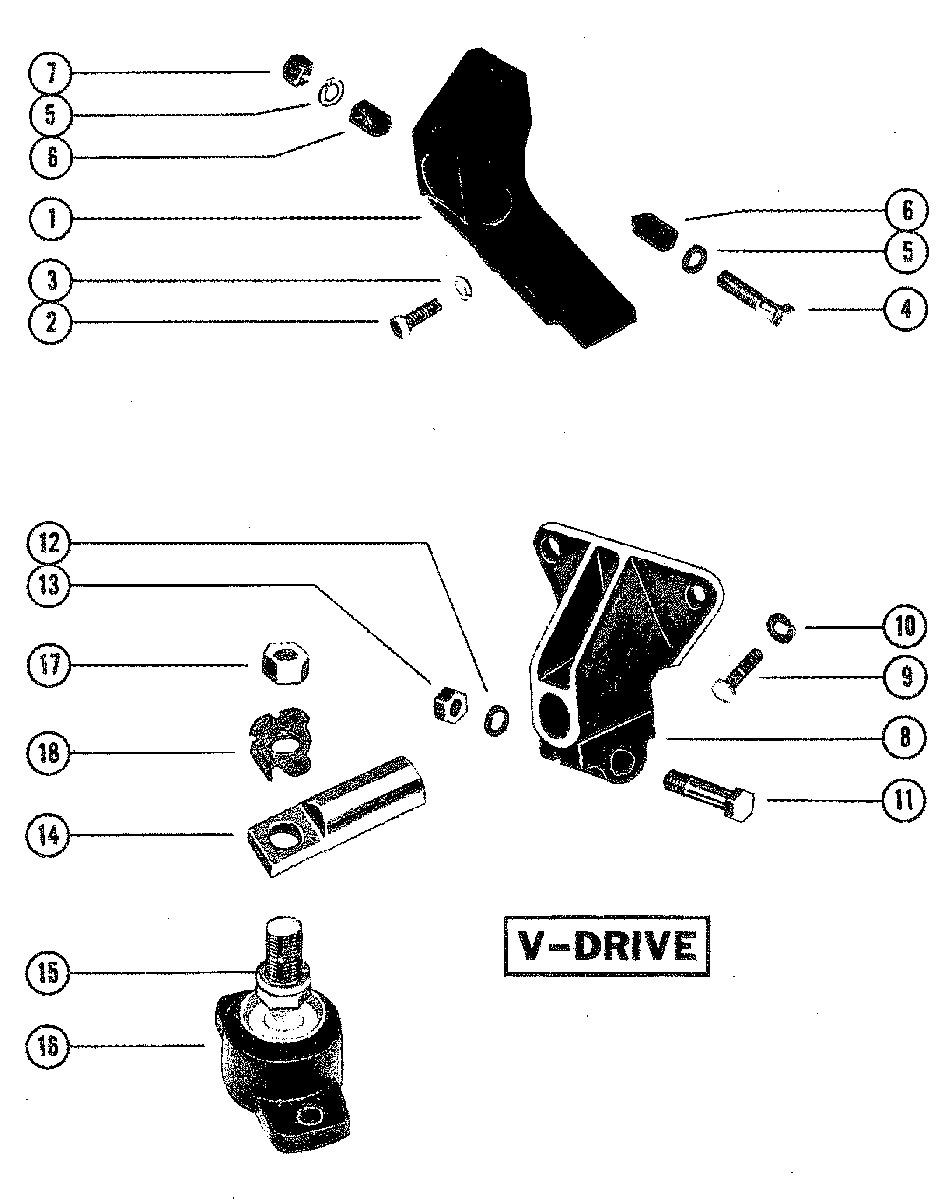

TRANSMISSION AND ENGINE MOUNTING (V-DRIVE) для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    62285 BRACKET, MOUNTING (REAR)
    BRACKET, MOUNTING (REAR)
  • 2
    10-47462 SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
    SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
  • 3
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 4
    10-47654 SCREW, CLAMPING - MOUNITING BRACKET (2 3/4")
    SCREW, CLAMPING - MOUNITING BRACKET (2 3/4")
  • 5
    13-32993 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 6
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 7
    11-82670814 NUT, SCREW CLAMPING
    NUT, SCREW CLAMPING
  • 8
    71128A2 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 9
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
    SCREW, MOUNTING BRACKET TO ENGINE (1 1/4")
  • 10
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 11
    10-37269 SCREW, CLAMPING - MOUNTING BRACKET (2")
    SCREW, CLAMPING - MOUNTING BRACKET (2")
  • 12
    13-32993 LOCKWASHER, SCREW CLAMPING
    LOCKWASHER, SCREW CLAMPING
  • 13
    11-82670814 NUT, SCREW CLAMPING
    NUT, SCREW CLAMPING
  • 14
    66166A4 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
  • 15
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 16
    66284A2 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 17
    11-20739 NUT, JAM - ENGINE MOUNT BASE
    NUT, JAM - ENGINE MOUNT BASE
  • 18
    14-66658 TAB WASHER, ENGINE MOUNT BASE
    TAB WASHER, ENGINE MOUNT BASE
  • --
    16-46857 STUD, CARBURETOR MOUNTING (1 7/8")
    STUD, CARBURETOR MOUNTING (1 7/8")
  • --
    10-74822 SCREW, CARBURETOR MOUNTING (3 1/2")
    SCREW, CARBURETOR MOUNTING (3 1/2")
  • --
    13-39107 LOCKWASHER, CARBURETOR MOUNTING SCREW
    LOCKWASHER, CARBURETOR MOUNTING SCREW
  • --
    86194219 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • --
    60212A1 EXHAUST ELBOW RISER
    EXHAUST ELBOW RISER
  • --
    16-49545 STUD, EXHUAST ELBOW TO RISER (1 3/4")
    STUD, EXHUAST ELBOW TO RISER (1 3/4")
  • --
    22-328022 PLUG, EXHAUST ELBOW RISER
    PLUG, EXHAUST ELBOW RISER
  • --
    22-36305T ELBOW, EXHAUST RISER
    ELBOW, EXHAUST RISER
  • --
    16-60607 STUD, MANIFOLD TO RISER (2 1/4")
    STUD, MANIFOLD TO RISER (2 1/4")
  • --
    11-49838 NUT, RISER TO EXHAUST ELBOW STUD
    NUT, RISER TO EXHAUST ELBOW STUD
  • --
    13-35048 LOCKWASHER, RISER TO EXHAUST ELBOW STUD
    LOCKWASHER, RISER TO EXHAUST ELBOW STUD
  • --
    27-997772 GASKET, ELBOW TO RISER
    GASKET, ELBOW TO RISER
  • --
    73813A1 END CAP, REAR
    END CAP, REAR
  • --
    27-807218 GASKET, END CAP TO EXHAUST MANIFOLE
    GASKET, END CAP TO EXHAUST MANIFOLE
  • --
    10-25299 SCREW, END CAP ATTACHING (3/4")
    SCREW, END CAP ATTACHING (3/4")
