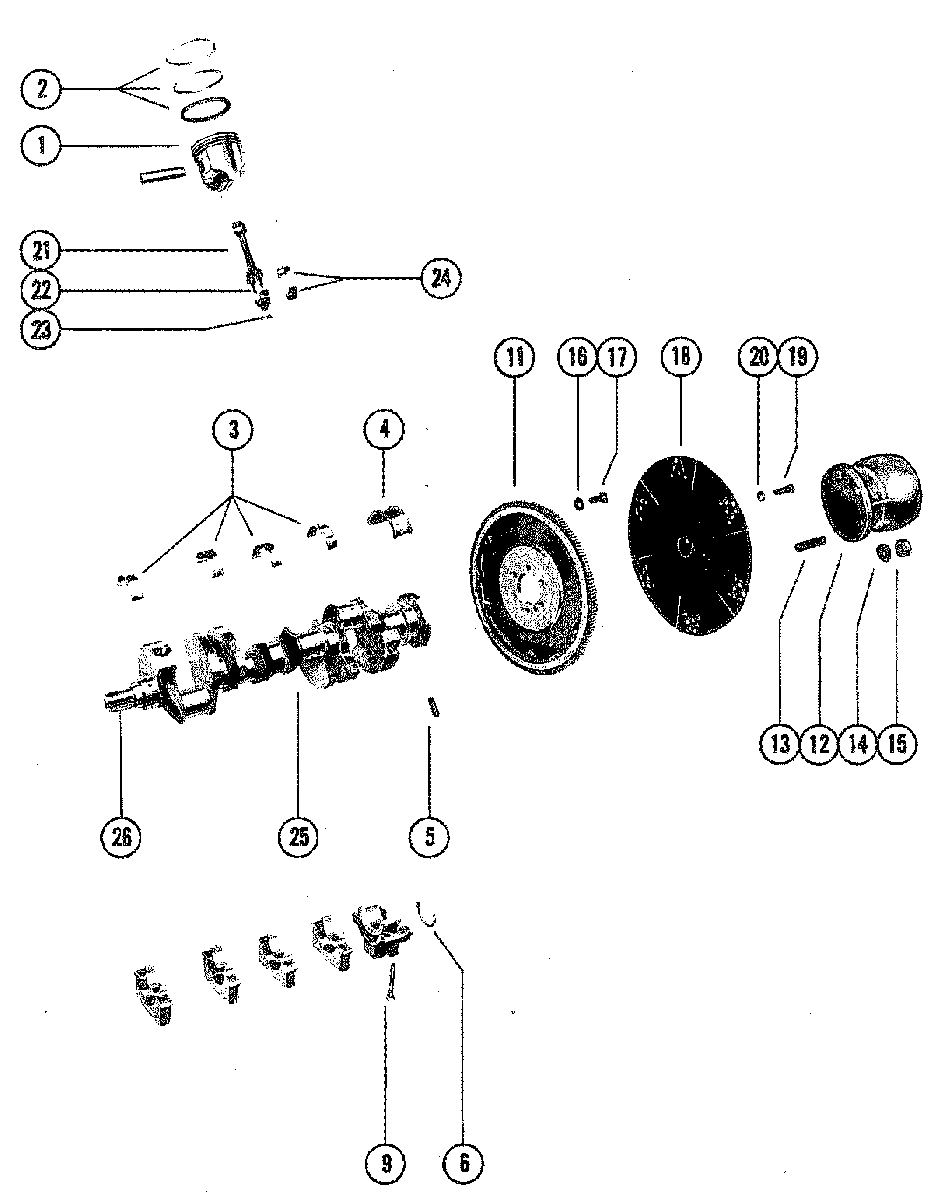

CRANKSHAFT AND PISTONS для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    735-6538 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.)
  • 1
    735-6616 PISTON AND PISTON PIN ASSEMBLY (.010 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.010 O.S.)
  • 1
    735-879194030 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 2
    39-75609 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 2
    39-75981 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 3
    23-818465 BEARING UNIT, CRANKSHAFT (STANDARD)
    BEARING UNIT, CRANKSHAFT (STANDARD)
  • 3
    23-818466 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 3
    23-818467 BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.010 U.S.)
  • 3
    23-818468 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 4
    23-818465 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 4
    23-818466 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 4
    23-818467 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 4
    23-818468 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 5
    17-24813 PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4"DIA)
    PIN, DOWEL - REAR CRANKSHAFT BEARING CAP (1/4"DIA)
  • 6
    26-814622 OIL SEAL, REAR CRANKSHAFT BEARING CAP (L.H. ROTATION)
    OIL SEAL, REAR CRANKSHAFT BEARING CAP (L.H. ROTATION)
  • 6
    26-35313 OIL SEAL, REAR CRANKSHAFT BEARING CAP (R.H. ROTATION)
    OIL SEAL, REAR CRANKSHAFT BEARING CAP (R.H. ROTATION)
  • 9
    10-54788 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 31/32")
  • --
    17-24813 PIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
    PIN, DOWEL - CRANKCASE FRONT END COVER AND OIL PUMP
  • 11
    222-6355 FLYWHEEL ASSEMBLY (L.H. ROTATION)
    FLYWHEEL ASSEMBLY (L.H. ROTATION)
  • 11
    230-4614 FLYWHEEL ASSEMBLY (R.H. ROTATION)
    FLYWHEEL ASSEMBLY (R.H. ROTATION)
  • 12
    76850A2 COUPLING ASSEMBLY STERN DRIVE
    COUPLING ASSEMBLY STERN DRIVE
  • 13
    16-98532A1 STUD, COUPLER TO FLYWHEEL STERN DRIVE
    STUD, COUPLER TO FLYWHEEL STERN DRIVE
  • 14
    12-34567 WASHER, COUPLER TO FLYWHEEL STUD STERN DRIVE
    WASHER, COUPLER TO FLYWHEEL STUD STERN DRIVE
  • 15
    11-8M2008293 NUT, COUPLER STUDS FLYWHEEL STERN DRIVE
    NUT, COUPLER STUDS FLYWHEEL STERN DRIVE
  • 16
    13-39131 LOCKWASHER, FLYWHEEL SCREW
    LOCKWASHER, FLYWHEEL SCREW
  • 17
    10-845757 SCREW, FLYWHEEL TO CRANKSHAFT
    SCREW, FLYWHEEL TO CRANKSHAFT
  • 18
    47608A1 DRIVE PLATE, FLYWHEEL INBOARD
    DRIVE PLATE, FLYWHEEL INBOARD
  • 19
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL INBOARD
    SCREW, DRIVE PLATE TO FLYWHEEL INBOARD
  • 20
    13-35048 LOCKWASHER, DRIVE PLATE SCREW INBOARD
    LOCKWASHER, DRIVE PLATE SCREW INBOARD
  • 21
    614-8164T CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 22
    10-85802 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 23
    11-37493 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 24
    23-85701 BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (4 PAIR), CONNECTING ROD (STANDARD)
  • 24
    23-85702 BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.001 U.S.)
  • 24
    23-85703 BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.002 U.S.)
  • 24
    23-85704 BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.010 U.S.)
  • 24
    23-85705 BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING ROD (.020 U.S.)
  • 25
    429-6537 AFT
    AFT
  • 26
    28-34466 KEY, RANKSHAFT PULLEY AND BALANCER
    KEY, RANKSHAFT PULLEY AND BALANCER
