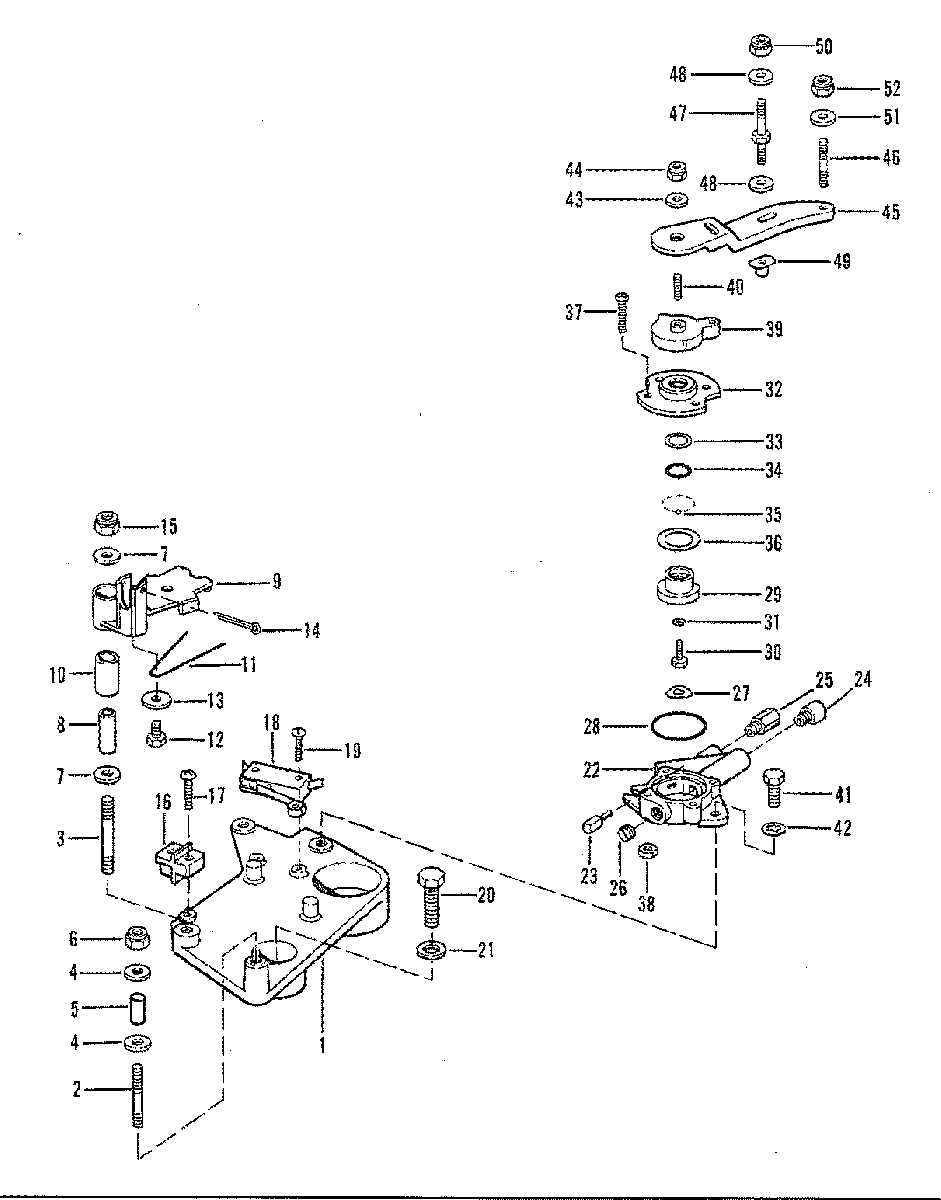

DRIVE SHAFT EXTENSION COMPONENTS для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    94612A3 SHIFT PLATE ASSEMBLY
    SHIFT PLATE ASSEMBLY
  • 2
    16-79661 STUD, SHIFT CABLE
    STUD, SHIFT CABLE
  • 3
    16-73563 SUUD, ACTUATING SWITCH
    SUUD, ACTUATING SWITCH
  • 4
    12-39143 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 5
    23-31866 SPACER, SHIFT CABLE STUD
    SPACER, SHIFT CABLE STUD
  • 6
    11-8267089 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 7
    12-26825 WASHER, ACTUATING ARM STUD
    WASHER, ACTUATING ARM STUD
  • 8
    23-37981 SPACER, ACTUATING ARM STUD
    SPACER, ACTUATING ARM STUD
  • 9
    13051A4 ARM ASSEMBLY, SWITCH ACUTATING
    ARM ASSEMBLY, SWITCH ACUTATING
  • 10
    23-45600 SLEEVE, SWITCH ACTUATING STUD
    SLEEVE, SWITCH ACTUATING STUD
  • 11
    24-862850 SPRING, TENSION
    SPRING, TENSION
  • 12
    10-98257 SCREW, TENSION SPRING
    SCREW, TENSION SPRING
  • 13
    12-26825 WASHER, TENSION SPRING SCREW
    WASHER, TENSION SPRING SCREW
  • 14
    18-328571 COTTER PIN, SHIFT CABLE
    COTTER PIN, SHIFT CABLE
  • 15
    11-82670911 NUT, ACTUATING ARM STUD
    NUT, ACTUATING ARM STUD
  • 16
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 17
    10-24637 SCREW, TERMINAL BLOCK (7/8")
    SCREW, TERMINAL BLOCK (7/8")
  • 17
    10-45218 SCREW, TERMINAL BLOCK (3/8")
    SCREW, TERMINAL BLOCK (3/8")
  • 18
    39670A28 SWITCH ASSEMBLY, ACTUATING
    SWITCH ASSEMBLY, ACTUATING
  • 19
    10-30902 SCREW, ACTUATING SWITCH
    SCREW, ACTUATING SWITCH
  • 20
    10-35047 SCREW, SHIFT PLATE
    SCREW, SHIFT PLATE
  • 21
    12-34931 WASHER, SHIFT PLATE SCREW
    WASHER, SHIFT PLATE SCREW
  • 22
    76812T4 REVERSE LOCK VALVE ASSSEMBLY
    REVERSE LOCK VALVE ASSSEMBLY
  • 23
    45709 FOLLOWER, CAM
    FOLLOWER, CAM
  • 24
    22-45794 ELBOW, REVERSE LOCK VALVE
    ELBOW, REVERSE LOCK VALVE
  • 25
    22-49719 CONNECTOR, ELBOW
    CONNECTOR, ELBOW
  • 26
    22-390721 PIPE PLUG, REVERSE LOCK VALVE
    PIPE PLUG, REVERSE LOCK VALVE
  • 27
    13-25906 WAVE WASHER, REVERSE LOCK VALVE
    WAVE WASHER, REVERSE LOCK VALVE
  • 28
    25-457101 "O" RING, REVERSE LOCK VALVE
    "O" RING, REVERSE LOCK VALVE
  • 29
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 30
    10-46736 SCREW, CAM TO CAM LEVER (1/2")
    SCREW, CAM TO CAM LEVER (1/2")
  • 31
    13-26996 LOCKWASHER, CAM SCREW
    LOCKWASHER, CAM SCREW
  • 32
    45528A2 COVER ASSEMBLY, REVERSE LOCK VALVE
    COVER ASSEMBLY, REVERSE LOCK VALVE
  • 33
    12-59570 WASHER, REVERSE LOCK VALVE COVER
    WASHER, REVERSE LOCK VALVE COVER
  • 34
    25-45711 "O" RING, VALVE COVER
    "O" RING, VALVE COVER
  • 35
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 36
    12-45713 WASHER, RETAINING - BALL TO VALVE COVER
    WASHER, RETAINING - BALL TO VALVE COVER
  • 37
    10-45716 SCREW, COVER TO REVERSE LOCK VALVE
    SCREW, COVER TO REVERSE LOCK VALVE
  • 38
    11-20110 NUT, COVER SCREW
    NUT, COVER SCREW
  • 39
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 40
    16-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
    STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
  • 41
    10-25299 SCREW, REVERSE LOCK VLAVE (3/4")
    SCREW, REVERSE LOCK VLAVE (3/4")
  • 42
    13-21804 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 43
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 44
    11-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
    NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
  • 45
    66397A1 MBLY, SHIFT CONTROL-CAM LEVER
    MBLY, SHIFT CONTROL-CAM LEVER
  • 46
    16-63081 STUD, SHIFT CABLE TO LEVER
    STUD, SHIFT CABLE TO LEVER
  • 47
    16-63335 STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER (2")
    STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER (2")
  • 48
    12-39143 WASHER, SHIFT ACTUATING CABLE STUD
    WASHER, SHIFT ACTUATING CABLE STUD
  • 49
    11-63341 NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
  • 50
    11-8267089 NUT, SHIFT CABLE STUD
    NUT, SHIFT CABLE STUD
  • 51
    12-39143 WASHER, SHIFT CABLE STUD
    WASHER, SHIFT CABLE STUD
  • 52
    11-8267089 NUT, SHIFT ACTUATING LEVER
    NUT, SHIFT ACTUATING LEVER
