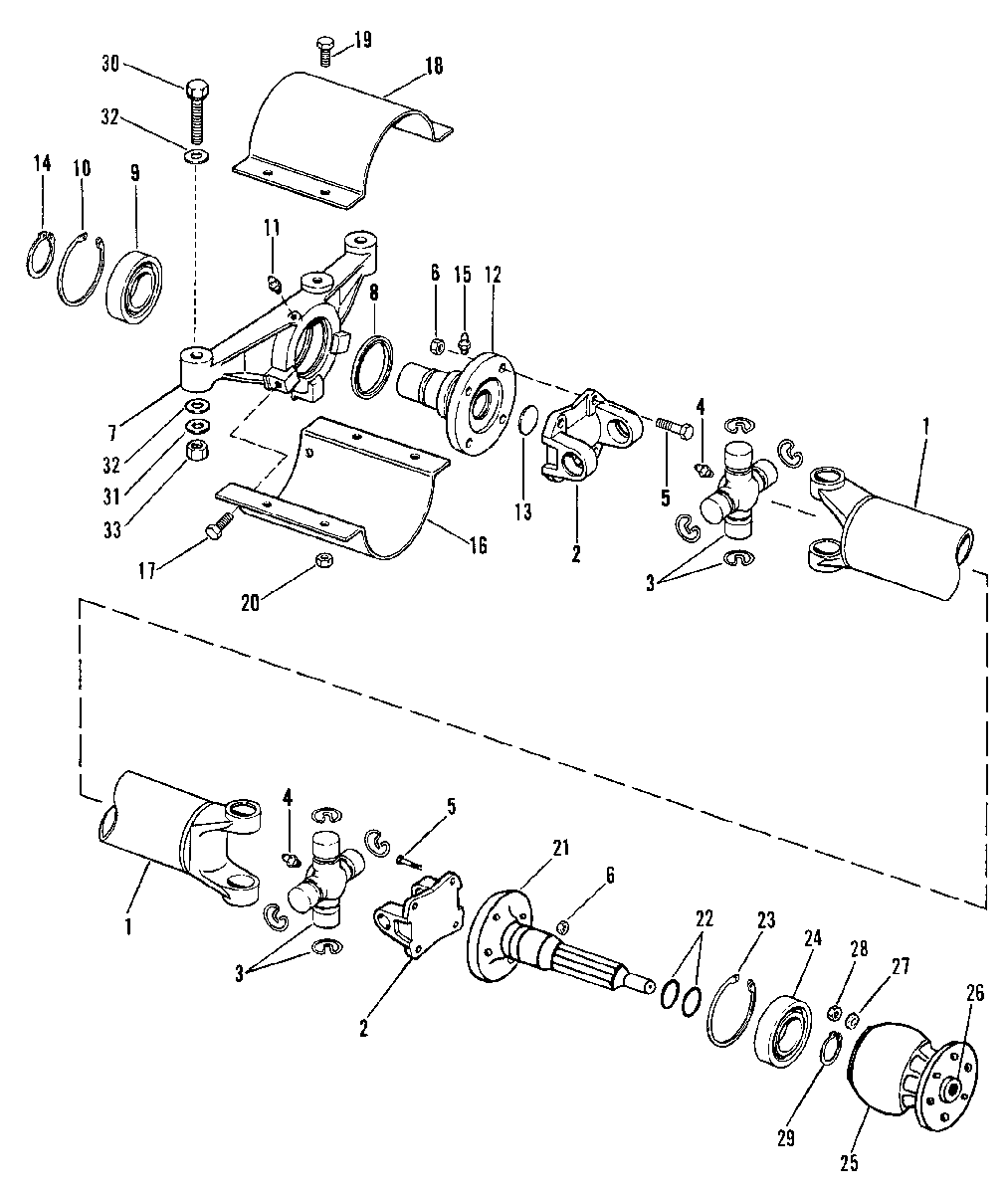

DRIVE SHAFT EXTENSION COMPONENTS (M0061-G8) для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461

  • №
    Артикул
    Название
  • 1
    45-94819A3 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 2
    52504T FLANGE, DRIVE SHAFT
    FLANGE, DRIVE SHAFT
  • 3
    61221T COVER AND BEARING KIT
    COVER AND BEARING KIT
  • 4
    22-74036 GREASE FITTING
    GREASE FITTING
  • 5
    10-805159 SCRWE, DRIVE SHAFT FLANGE (1-1/2")
    SCRWE, DRIVE SHAFT FLANGE (1-1/2")
  • 6
    11-34933 NUT, FLANGE SCREW
    NUT, FLANGE SCREW
  • 7
    93913A3 BEAREING SUPPORT ASSEMBLY
    BEAREING SUPPORT ASSEMBLY
  • 8
    26-93924 OIL SEAL
    OIL SEAL
  • 9
    30-93944A2 BALL BEARING
    BALL BEARING
  • 10
    53-93914 SNAP RING, BALL BEARING
    SNAP RING, BALL BEARING
  • 11
    22-74036 GREASE FITTING
    GREASE FITTING
  • 12
    93908A1 SHAFT ASSEMBLY, INPUT
    SHAFT ASSEMBLY, INPUT
  • 13
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 14
    53-93915 SNAP RING, INPUT SHAFT
    SNAP RING, INPUT SHAFT
  • 15
    22-74036 GREASE FITTING
    GREASE FITTING
  • 16
    93918A1 SHIELD ASSEMBLY, LOWER
    SHIELD ASSEMBLY, LOWER
  • 17
    10-76926 SCREW, LOWER SHIELD TO SUPPORT (7/8")
    SCREW, LOWER SHIELD TO SUPPORT (7/8")
  • 18
    93919A1 SHIELD ASSEMBLY, UPPER
    SHIELD ASSEMBLY, UPPER
  • 19
    10-96995 SCREW, UPPER AND LOWER SHIELD (7/8")
    SCREW, UPPER AND LOWER SHIELD (7/8")
  • 20
    11-82671112 NUT, SHIELD SCREW
    NUT, SHIELD SCREW
  • 21
    93906A2 SHAFT ASSEMBLY, OUTPUT
    SHAFT ASSEMBLY, OUTPUT
  • 22
    25-25439 "O" RING
    "O" RING
  • 23
    53-94104 SNAPRING, BALL BEARING, INTERNAL
    SNAPRING, BALL BEARING, INTERNAL
  • 24
    30-879194A03 BALL BEARING
    BALL BEARING
  • 25
    49736A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 26
    23-95966 BUSHING, COUPLING
    BUSHING, COUPLING
  • 27
    12-34567 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 28
    11-8M2008293 NUT, HOUSING SCREW
    NUT, HOUSING SCREW
  • 29
    53-8M0141818 SNAP RING, EXTERNAL
    SNAP RING, EXTERNAL
  • 30
    10-57053 BOLT, BEARING SUPPORT (4-1/2")
    BOLT, BEARING SUPPORT (4-1/2")
  • 31
    12-32552 WASHER, BEARING SUPPORT BOLT
    WASHER, BEARING SUPPORT BOLT
  • 32
    12-42307 WASHER, BEARING SUPPORT BOLT (SPHERICAL)
    WASHER, BEARING SUPPORT BOLT (SPHERICAL)
  • 33
    11-898832 NUT, BEARING SUPPORT BOLT
    NUT, BEARING SUPPORT BOLT
