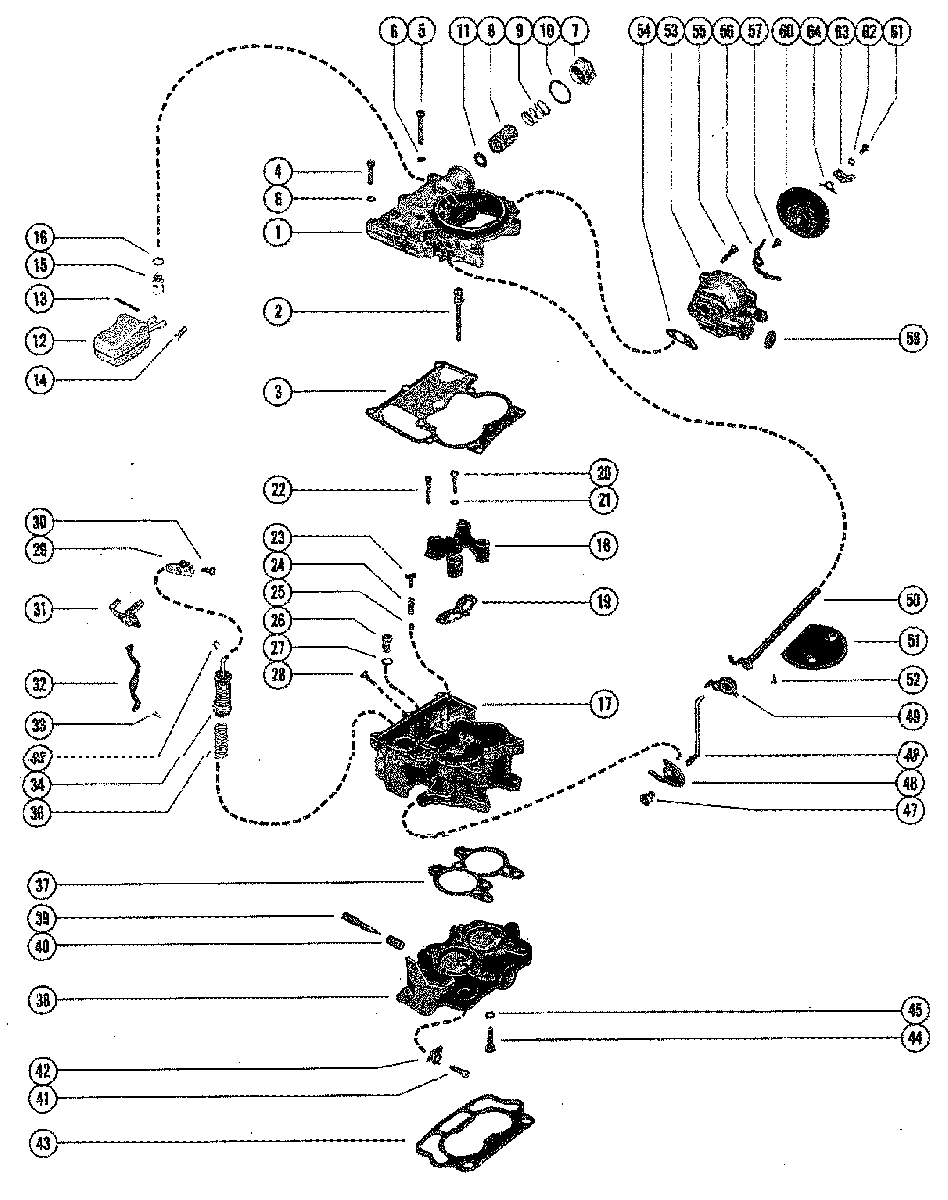

CARBURETOR ASSEMBLY для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461

  • №
    Артикул
    Название
  • -
    3310-861080A1 CARBURATOR ASSEMBLY, COMPLETE
    CARBURATOR ASSEMBLY, COMPLETE
  • 1
    N.S.S. AIR HORN(NOT SOLD SEPARATELY)
    AIR HORN(NOT SOLD SEPARATELY)
  • 2
    N.S.S. POWER PISTON ASSEMBLY(ROCHESTER #7009718)
    POWER PISTON ASSEMBLY(ROCHESTER #7009718)
  • 3
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 4
    10-33043 SCREW, AIR HORN TO FLOAT BOWL(SHORT)
    SCREW, AIR HORN TO FLOAT BOWL(SHORT)
  • 5
    10-33048 SCREW, AIR HORN TO FLOAT BOWL(LONG)
    SCREW, AIR HORN TO FLOAT BOWL(LONG)
  • 6
    13-26996 LOCKWASHER, AIR HORN SCREW
    LOCKWASHER, AIR HORN SCREW
  • 7
    1397-3330 NUT, FUEL INLET-AIR HORN
    NUT, FUEL INLET-AIR HORN
  • 8
    35-53336Q FILTER, FUEL INLET-AIR HORN
    FILTER, FUEL INLET-AIR HORN
  • 9
    3302-9032 SPRING, FUEL INLET-AIR HORN
    SPRING, FUEL INLET-AIR HORN
  • 10
    90-8M0143356 GASKET, FUEL INLET NUT(LARGE)
    GASKET, FUEL INLET NUT(LARGE)
  • 11
    90-8M0143356 GASKET, FUEL INLET FILTER(SMALL)
    GASKET, FUEL INLET FILTER(SMALL)
  • 12
    1397-5837 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 13
    N.S.S. PIN, HINGE-FLOAT TO AIR HORN(ROCHESTER #7002081)
    PIN, HINGE-FLOAT TO AIR HORN(ROCHESTER #7002081)
  • 14
    90-8M0143356 CLIP, HINGE PIN
    CLIP, HINGE PIN
  • 15
    90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY
    INLET NEEDLE AND SEAT ASSEMBLY
  • 16
    90-8M0143356 GASKET, INLET NEDDLE AND SEAT
    GASKET, INLET NEDDLE AND SEAT
  • 17
    N.S.S. FLOAT BOWL ASSEMBLY(ROCHESTER #17055057)
    FLOAT BOWL ASSEMBLY(ROCHESTER #17055057)
  • 18
    N.S.S. VENTURI CLUSTER ASSEMBLY, FLOAT BOWL(NOT SOLD SEPARATELY)
    VENTURI CLUSTER ASSEMBLY, FLOAT BOWL(NOT SOLD SEPARATELY)
  • 19
    90-8M0143356 GASKET, VENTURI CLUSTER
    GASKET, VENTURI CLUSTER
  • 20
    N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL(CENTER)(ROCHESTER #700)
    SCREW, VENTURI CLUSTER TO FLOAT BOWL(CENTER)(ROCHESTER #700)
  • 21
    90-8M0143356 GASKET, VENTURI CLUSTER SCREW(CENTER)
    GASKET, VENTURI CLUSTER SCREW(CENTER)
  • 22
    N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL(OUTER)(ROCHESTER #7045)
    SCREW, VENTURI CLUSTER TO FLOAT BOWL(OUTER)(ROCHESTER #7045)
  • 23
    90-8M0143356 GUIDE, PUMP DISCHARGE-FLOAT BOWL
    GUIDE, PUMP DISCHARGE-FLOAT BOWL
  • 24
    90-8M0143356 SPRING, PUMP DISCHARGE-FLOAT BOWL
    SPRING, PUMP DISCHARGE-FLOAT BOWL
  • 25
    90-8M0143356 BALL, PUMP DISCHARGE-FLOAT BOWL
    BALL, PUMP DISCHARGE-FLOAT BOWL
  • 26
    90-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL
    POWER VALVE ASSEMBLY, FLOAT BOWL
  • 27
    90-8M0143356 GASKET, POWER VALVE
    GASKET, POWER VALVE
  • 28
    1397-6365 JET, FLOAT BOWL(STANDARD)
    JET, FLOAT BOWL(STANDARD)
  • 29
    1397-6364 LEVER, PUMP-AIR HORN
    LEVER, PUMP-AIR HORN
  • 30
    10-33047 SCREW, AIR HORN PUMP LEVER
    SCREW, AIR HORN PUMP LEVER
  • 31
    N.S.S. PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN(ROCHESTER #7038788)
    PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN(ROCHESTER #7038788)
  • 32
    N.S.S. ROD, PUMP(ROCHESTER #7038799)
    ROD, PUMP(ROCHESTER #7038799)
  • 33
    90-8M0143356 CLIP, RETAINER-PUMP ROD
    CLIP, RETAINER-PUMP ROD
  • 34
    90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
    PUMP ASSEMBLY, FLOAT BOWL
  • 35
    90-8M0143356 CLIP RETAINER-FLOAT BOWL PUMP
    CLIP RETAINER-FLOAT BOWL PUMP
  • 36
    90-8M0143356 SPRING, PUMP RETURN-FLOAT BOWL
    SPRING, PUMP RETURN-FLOAT BOWL
  • 37
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 38
    N.S.S. THROTTLE BODY ASSEMBLY(NOT SOLD SEPARATELY)
    THROTTLE BODY ASSEMBLY(NOT SOLD SEPARATELY)
  • 39
    90-8M0143356 IDLE ADJUSTING NEEDLE, THROTTLE BODY
    IDLE ADJUSTING NEEDLE, THROTTLE BODY
  • 40
    24-33050 SPRING, IDLE ADJUSTING NEEDLE
    SPRING, IDLE ADJUSTING NEEDLE
  • 41
    N.S.S. IDLE STOP SCREW, THROTTLE BODY(ROCHESTER #7031547)
    IDLE STOP SCREW, THROTTLE BODY(ROCHESTER #7031547)
  • 42
    54-39108 CLIP, IDLE STOP SCREW
    CLIP, IDLE STOP SCREW
  • 43
    90-8M0143356 GASKET, CARBURATOR FLANGE
    GASKET, CARBURATOR FLANGE
  • 44
    10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL
    SCREW, THROTTLE BODY TO FLOAT BOWL
  • 45
    13-21547 LOCKWASHER, THROTTLE BODY SCREW
    LOCKWASHER, THROTTLE BODY SCREW
  • 46
    1397-8877 CAM, FAST IDLE-FLOAT BOWL
    CAM, FAST IDLE-FLOAT BOWL
  • 47
    10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL
    SCREW, FAST IDLE CAM TO FLOAT BOWL
  • 48
    N.S.S. ROD, CHOKE(ROCHESTER #7038821)
    ROD, CHOKE(ROCHESTER #7038821)
  • 49
    1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
    CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
  • 50
    1397-5840 CHOKE SHAFT ASSEMBLY
    CHOKE SHAFT ASSEMBLY
  • 51
    1397-5839 VALVE, CHOKE-CHOKE SHAFT
    VALVE, CHOKE-CHOKE SHAFT
  • 52
    10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT
    SCREW, CHOKE VALVE TO CHOKE SHAFT
  • 53
    1397-5838 CHOKE HOUSING ASSEMBLY
    CHOKE HOUSING ASSEMBLY
  • 54
    90-8M0143356 GASKET, CHOKE HOUSING
    GASKET, CHOKE HOUSING
  • 55
    10-33053 SCREW, CHOKE HOUSING TO AIR HORN
    SCREW, CHOKE HOUSING TO AIR HORN
  • 56
    N.S.S. LEVER ASSEMBLY, CHOKE PISTON(ROCHESTER #7010051)
    LEVER ASSEMBLY, CHOKE PISTON(ROCHESTER #7010051)
  • 57
    10-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
    SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
  • 58
    19-33041 WELCH PLUG, CHOKE HOUSING
    WELCH PLUG, CHOKE HOUSING
  • 60
    70125A02 COVER, CHOKE
    COVER, CHOKE
  • 61
    10-33047 SCREW, CHOKE COVER TO CHOKE HOUSING
    SCREW, CHOKE COVER TO CHOKE HOUSING
  • 62
    13-26995 LOCKWASHER, CHOKE COVER SCREW
    LOCKWASHER, CHOKE COVER SCREW
  • 63
    86-70879 TERMINAL, CHOKE COVER SCREW
    TERMINAL, CHOKE COVER SCREW
  • 64
    54-33036 RETAINER, CHOKE COVER SCREW
    RETAINER, CHOKE COVER SCREW
  • --
    1397-5831 OVERHAUL KIT
    OVERHAUL KIT
  • --
    1397-5831 GASKET KIT
    GASKET KIT
