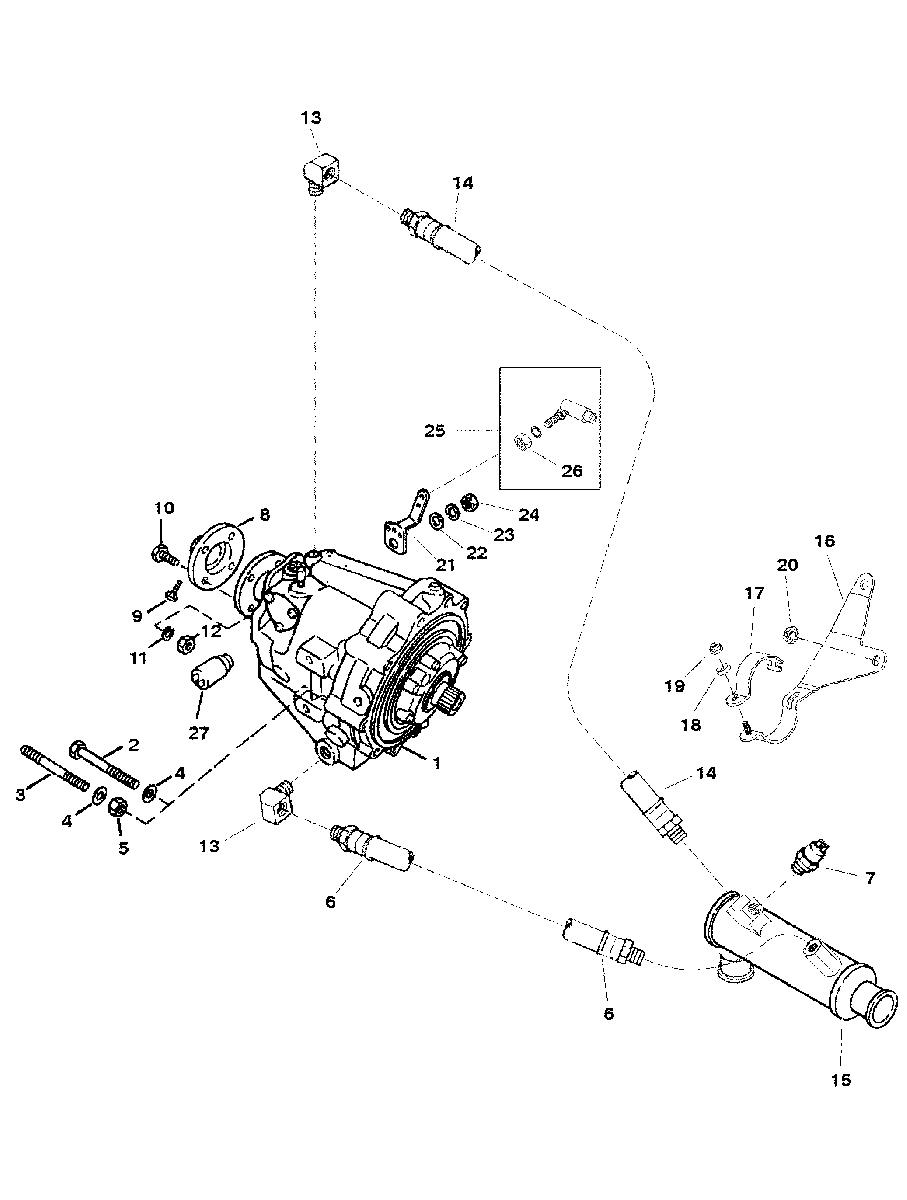

TRANSMISSION AND RELATED PARTS для Mercruiser - 350 MAG EFI SKI (GEN+) GM 350 V-8 1997 0K040006 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION
    TRANSMISSION
  • 2
    10-60179 SCREW (7/16-14 X 3-1/2 IN.)
    SCREW (7/16-14 X 3-1/2 IN.)
  • 3
    16-57921 STUD (7/16 X 4 IN.)
    STUD (7/16 X 4 IN.)
  • 4
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 5
    11-22024 NUT (7/16-14)
    NUT (7/16-14)
  • 6
    32-8126997 HOSE (30 IN.)
    HOSE (30 IN.)
  • 7
    87-88031 SWITCH-TEMPERATURE
    SWITCH-TEMPERATURE
  • 8
    87917A1 FLANGE ASSY.
    FLANGE ASSY.
  • 9
    10-60171 SCREW (3/8-16 X 1-1/4 IN.)
    SCREW (3/8-16 X 1-1/4 IN.)
  • 10
    10-68101 SCREW (3/8-16 X 1-3/8 IN.)
    SCREW (3/8-16 X 1-3/8 IN.)
  • 11
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 12
    11-32219 NUT (3/8-16)
    NUT (3/8-16)
  • 13
    22-47629 ELBOW (90 DEG.)
    ELBOW (90 DEG.)
  • 14
    32-8126998 HOSE (37 IN.)
    HOSE (37 IN.)
  • 15
    808029T COOLER-OIL
    COOLER-OIL
  • 16
    808034T BRACKET-OIL COOLER
    BRACKET-OIL COOLER
  • 17
    807445T CLAMP
    CLAMP
  • 18
    12-35462 WASHER
    WASHER
  • 19
    11-8267088 NUT (1/4-20)
    NUT (1/4-20)
  • 20
    11-860069 NUT (3/8-16)
    NUT (3/8-16)
  • 21
    43325 LEVER-SHIFT
    LEVER-SHIFT
  • 22
    12-20722 WASHER
    WASHER
  • 23
    13-26993 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 24
    11-22053 NUT (5/16-24)
    NUT (5/16-24)
  • 25
    807484 BALL JOINT KIT
    BALL JOINT KIT
  • 26
    11-8267089 NUT(1/4-20)
    NUT(1/4-20)
  • 27
    47613 SWITCH-NEUTRAL SAFETY
    SWITCH-NEUTRAL SAFETY
