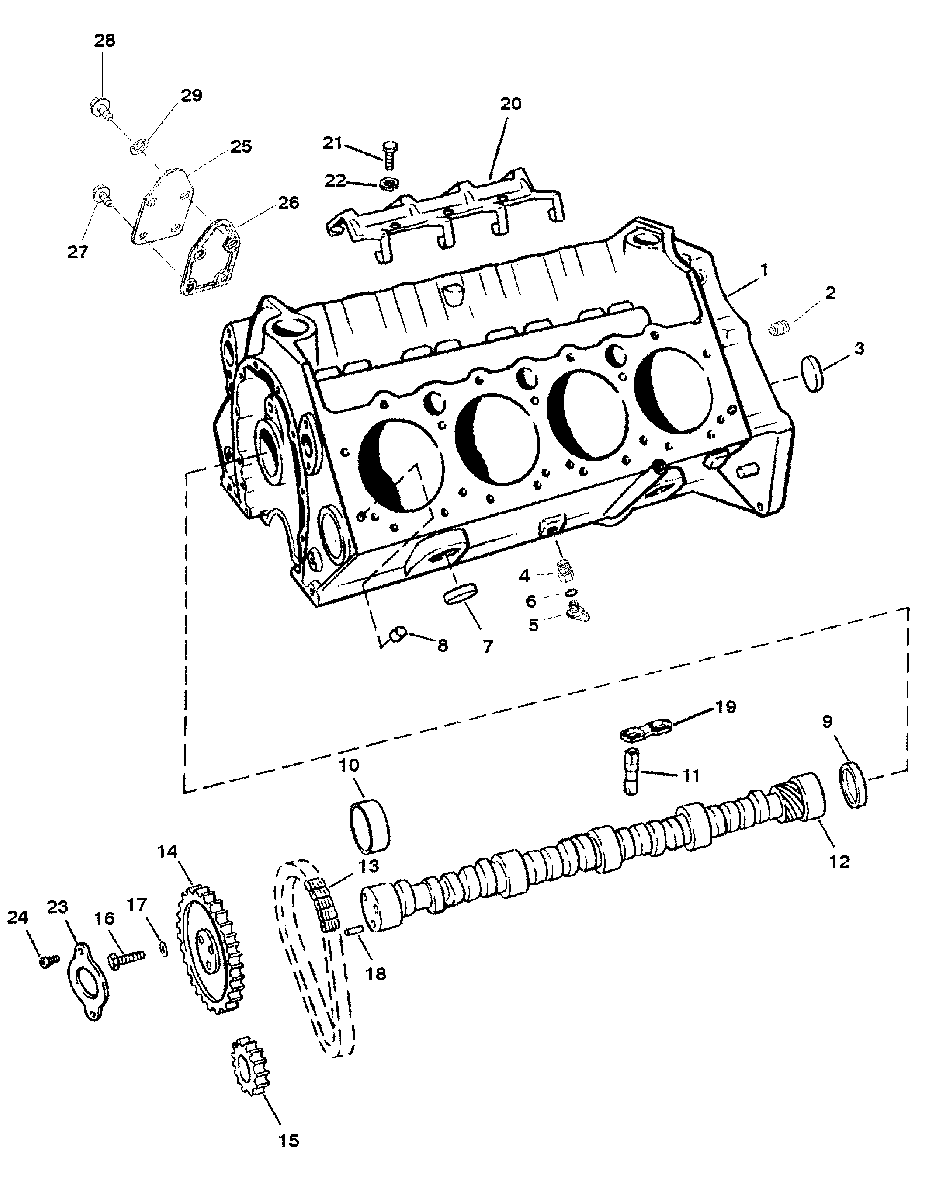

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 350 MAG EFI SKI (GEN+) GM 350 V-8 1997 0K040006 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807449A1)
    CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807449A1)
  • 2
    22-32561 PLUG-PIPE (1/4 IN.)
    PLUG-PIPE (1/4 IN.)
  • 3
    19-816565 PLUG-EXPANSION (15/32 IN.)
    PLUG-EXPANSION (15/32 IN.)
  • 4
    22-860088 BUSHING-ADAPTOR
    BUSHING-ADAPTOR
  • 5
    22-8M0119211 PLUG-DRAIN
    PLUG-DRAIN
  • 6
    25-32509 QUAD RING
    QUAD RING
  • 7
    19-34270 PLUG-EXPANSION (1-5/8 IN.)
    PLUG-EXPANSION (1-5/8 IN.)
  • 8
    17-35465 PIN-DOWEL (5/16 IN.)
    PIN-DOWEL (5/16 IN.)
  • 9
    22-72640 PLUG-EXPANSION (REAR CAMSHAFT)
    PLUG-EXPANSION (REAR CAMSHAFT)
  • 10
    23-85674 BEARING SET
    BEARING SET
  • 11
    17340T1 LIFTER-ROLLER
    LIFTER-ROLLER
  • 12
    431-811658 CAMSHAFT-ROLLER
    CAMSHAFT-ROLLER
  • 13
    17161T CHAIN-TIMING
    CHAIN-TIMING
  • 14
    43-8116591 SPROCKET-CAMSHAFT
    SPROCKET-CAMSHAFT
  • 15
    43-17160 SPROCKET-CRANKSHAFT
    SPROCKET-CRANKSHAFT
  • 16
    10-8M0043993 BOLT (5/16-18 X 3/4 IN.)
    BOLT (5/16-18 X 3/4 IN.)
  • 17
    12-848136 WASHER
    WASHER
  • 18
    17-843378 PIN
    PIN
  • 19
    17341T GUIDE-LIFTER
    GUIDE-LIFTER
  • 20
    811662 RETAINER-LIFTER GUIDE
    RETAINER-LIFTER GUIDE
  • 21
    10-34500 SCREW (5/16-18 X 5/8 IN.)
    SCREW (5/16-18 X 5/8 IN.)
  • 22
    12-811664 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 23
    845941 RETAINER-CAMSHAFT
    RETAINER-CAMSHAFT
  • 24
    10-845943 SCREW (1/4-20 X 1/2 IN.)
    SCREW (1/4-20 X 1/2 IN.)
  • 25
    807695 PLATE-BLOCK-OFF
    PLATE-BLOCK-OFF
  • 26
    27-34898 GASKET
    GASKET
  • 27
    10-8M0040582 SCREW (1/4-20 X 9/16 IN.)
    SCREW (1/4-20 X 9/16 IN.)
  • 28
    10-98261 SCREW (3/8-16 X 3/4 IN.)
    SCREW (3/8-16 X 3/4 IN.)
  • 29
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • -
    8M0088397 MARINE LONG BLOCK ENGINE
    MARINE LONG BLOCK ENGINE
  • -
    92-809825 SEALER-RED RTV (WHERE APPLICABLE)
    SEALER-RED RTV (WHERE APPLICABLE)
  • -
    92-34227Q02 PERFECT SEAL (WHERE APPLICABLE)
    PERFECT SEAL (WHERE APPLICABLE)
  • -
    27-75611A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
