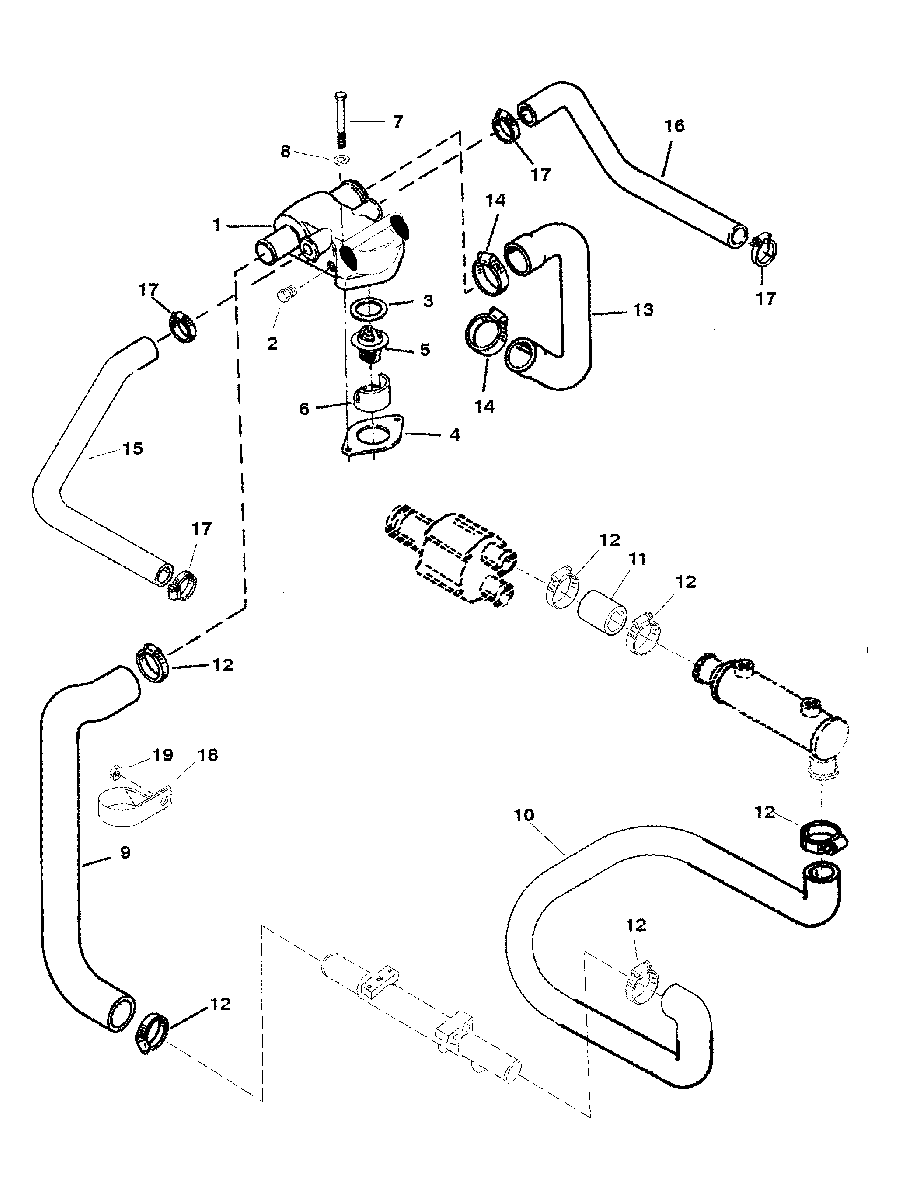

STANDARD COOLING SYSTEM для Mercruiser - 350 MAG EFI SKI (GEN+) GM 350 V-8 1997 0K040006 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860256A4 HOUSING ASSEMBLY-THERMOSTAT
    HOUSING ASSEMBLY-THERMOSTAT
  • 2
    22-32803 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 3
    27-806871 GASKET-THERMOSTAT
    GASKET-THERMOSTAT
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW (3/8-16 X 3 IN.)
    SCREW (3/8-16 X 3 IN.)
  • 8
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 9
    32-808033 HOSE-THERMOSTAT HOUSING TO FUEL COOLER
    HOSE-THERMOSTAT HOUSING TO FUEL COOLER
  • 10
    32-808032 HOSE-FUEL COOLER TO TRANSMISSION OIL COOLER
    HOSE-FUEL COOLER TO TRANSMISSION OIL COOLER
  • 11
    32-866331 HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
    HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
  • 12
    54-815504222 CLAMP-HOSE
    CLAMP-HOSE
  • 13
    32-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
  • 14
    54-815504232 CLAMP
    CLAMP
  • 15
    32-8066351 HOSE-THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    PORT
    HOSE-THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    PORT
  • 16
    32-807697 HOSE-THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    STARBOARD
    HOSE-THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    STARBOARD
  • 17
    54-815504220 CLAMP-HOSE
    CLAMP-HOSE
  • 18
    54-47715 CLIP
    CLIP
  • 19
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
