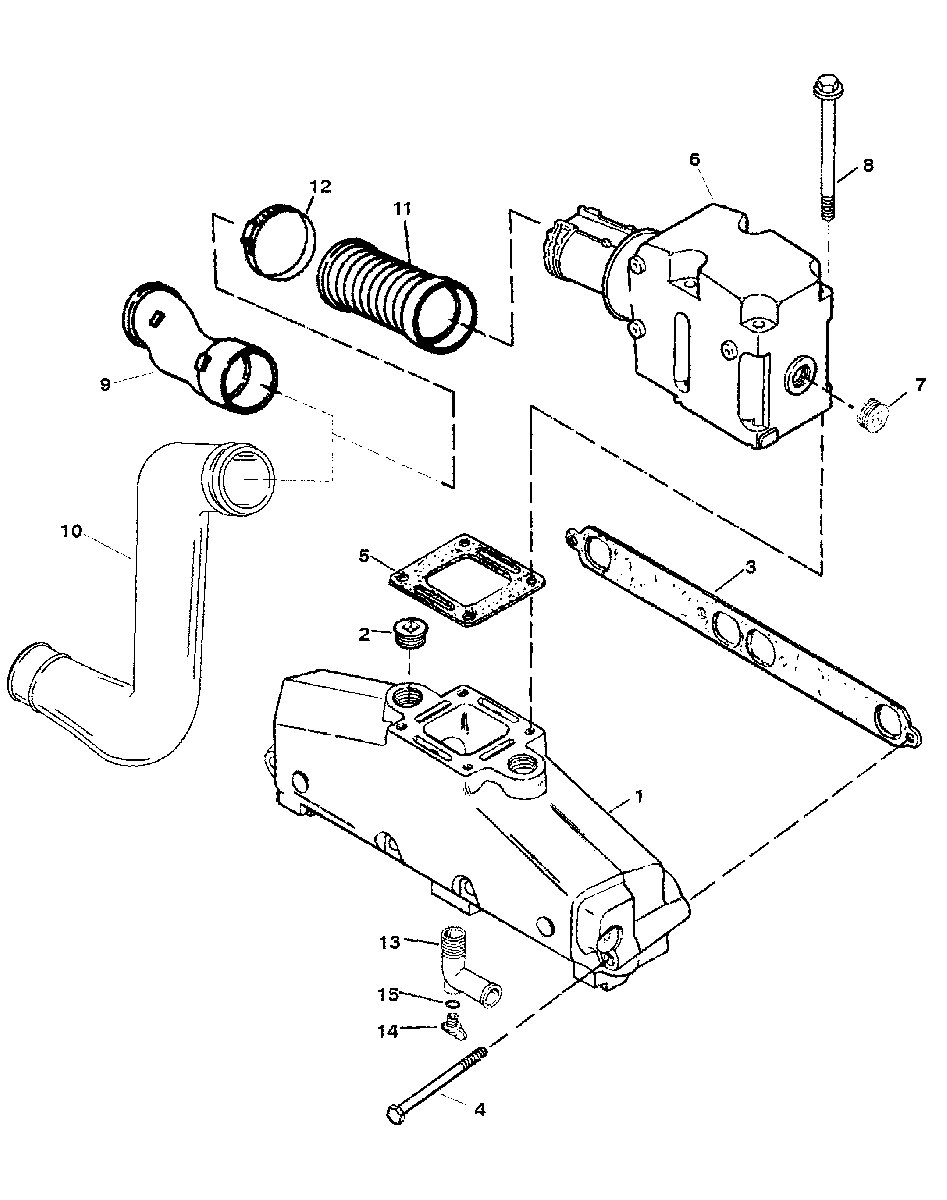

EXH. MANIFOLD AND CAST IRON EXHAUST ELBOW для Mercruiser - 350 MAG EFI SKI (GEN+) GM 350 V-8 1997 0K040006 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY-EXHAUST (PORT)
    MANIFOLD ASSEMBLY-EXHAUST (PORT)
  • 1
    860246A15 MANIFOLD ASSEMBLY-EXHAUST (STARBOARD)
    MANIFOLD ASSEMBLY-EXHAUST (STARBOARD)
  • 2
    22-416223 PLUG-PIPE (3/4-14)
    PLUG-PIPE (3/4-14)
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW (3/8-16 X 4-5/8 IN.)
    SCREW (3/8-16 X 4-5/8 IN.)
  • 5
    27-863724 GASKET
    GASKET
  • 6
    807988A03 ELBOW ASSEMBLY-EXHAUST (7 DEG.)
    ELBOW ASSEMBLY-EXHAUST (7 DEG.)
  • 7
    22-416223 PLUG-PIPE (3/4-14)
    PLUG-PIPE (3/4-14)
  • 8
    10-43749 SCREW (3/8-16 X 5-3/4 IN.)
    SCREW (3/8-16 X 5-3/4 IN.)
  • 9
    807153T PIPE-EXHAUST
    (STD. EXHAUST)
    PIPE-EXHAUST
    (STD. EXHAUST)
  • 10
    807611T PIPE-EXHAUST
    ("S" PIPE EXHAUST)
    PIPE-EXHAUST
    ("S" PIPE EXHAUST)
  • 11
    32-44348001 TUBE-EXHAUST
    TUBE-EXHAUST
  • 12
    54-815504372 CLAMP
    CLAMP
  • 13
    22-862210A01 ELBOW-DRAIN
    ELBOW-DRAIN
  • 14
    22-8M0119211 PLUG-DRAIN
    PLUG-DRAIN
  • 15
    25-32509 QUAD RING
    QUAD RING
  • -
    27-75611A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
