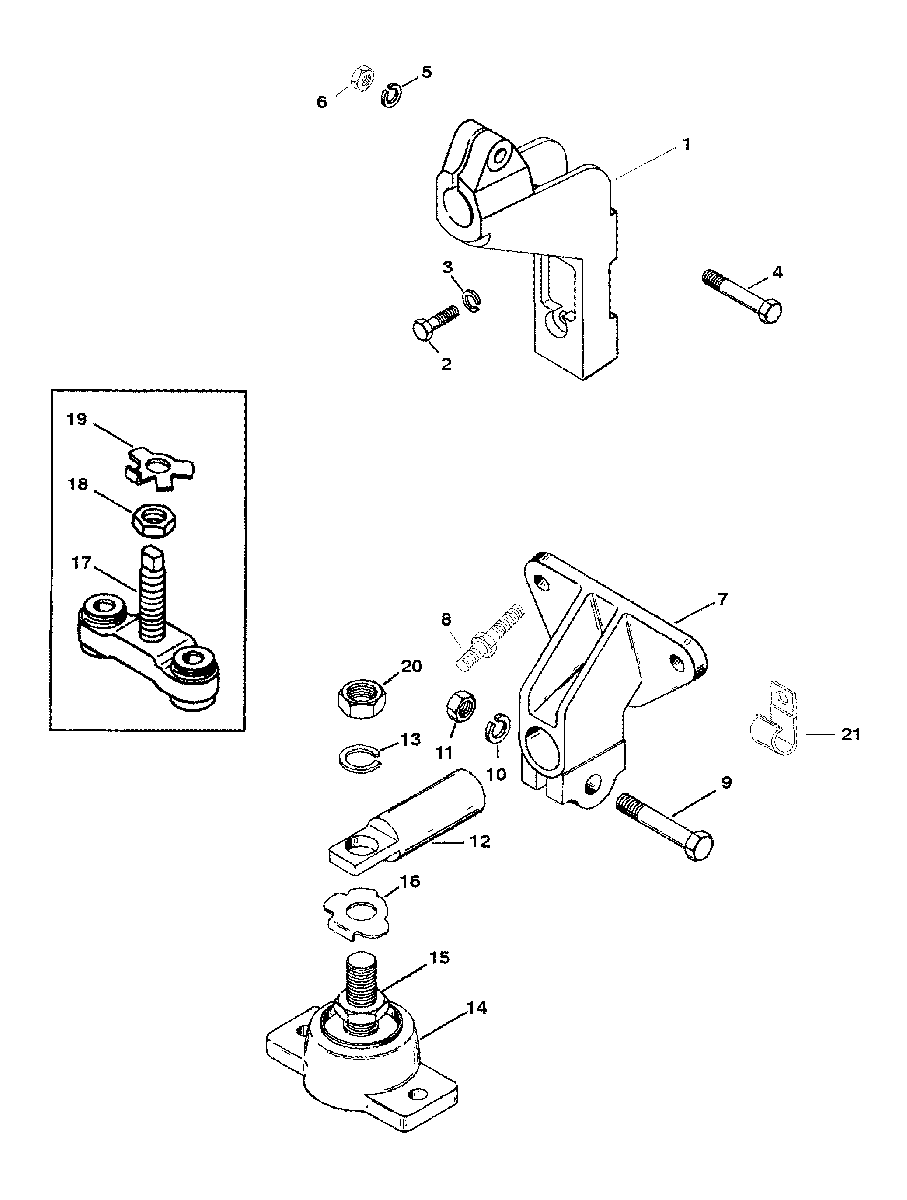

TRANSMISSION AND ENGINE MOUNTING для Mercruiser - 350 MAG EFI SKI (GEN+) GM 350 V-8 1997 0K040006 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    805597A1 BRACKET-REAR
    BRACKET-REAR
  • 2
    10-37269 SCREW (7/16-14 X 2 IN.)
    SCREW (7/16-14 X 2 IN.)
  • 2
    10-91903 SCREW (7/16-14 X 1-3/4 IN.)
    SCREW (7/16-14 X 1-3/4 IN.)
  • 3
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 4
    10-37269 SCREW (7/16-14 X 2 IN.)
    SCREW (7/16-14 X 2 IN.)
  • 5
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 6
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 7
    71128A2 BRACKET-FRONT
    BRACKET-FRONT
  • 8
    10-68101 SCREW (3/8-16 X 1-3/8 IN.)
    SCREW (3/8-16 X 1-3/8 IN.)
  • 8
    16-8M2004610 STUD
    STUD
  • 9
    10-57357 SCREW (7/16-14 X 2-1/4 IN.)
    SCREW (7/16-14 X 2-1/4 IN.)
  • 10
    13-32993 LOCKWASHER (7/16 IN.)
    LOCKWASHER (7/16 IN.)
  • 11
    11-82670814 NUT (7/16-14)
    NUT (7/16-14)
  • 12
    66166A4 TRUNNION
    TRUNNION
  • 13
    13-68102 LOCKWASHER
    LOCKWASHER
  • 14
    66284A2 BASE ASSEMBLY
    ENGINE
    BASE ASSEMBLY
    ENGINE
  • 15
    11-20739 NUT-JAM (3/4-16)
    ENGINE
    NUT-JAM (3/4-16)
    ENGINE
  • 16
    14-66658 WASHER-TAB
    ENGINE
    WASHER-TAB
    ENGINE
  • 17
    816326A2 BASE ASSEMBLY
    TRANSMISSION
    BASE ASSEMBLY
    TRANSMISSION
  • 18
    11-816331 NUT-JAM (3/4-16)
    TRANSMISSION
    NUT-JAM (3/4-16)
    TRANSMISSION
  • 19
    14-66658 WASHER-TAB
    TRANSMISSION
    WASHER-TAB
    TRANSMISSION
  • 20
    11-20739 NUT-JAM (3/4-16)
    NUT-JAM (3/4-16)
  • 21
    54-78945 CLAMP
    CLAMP
