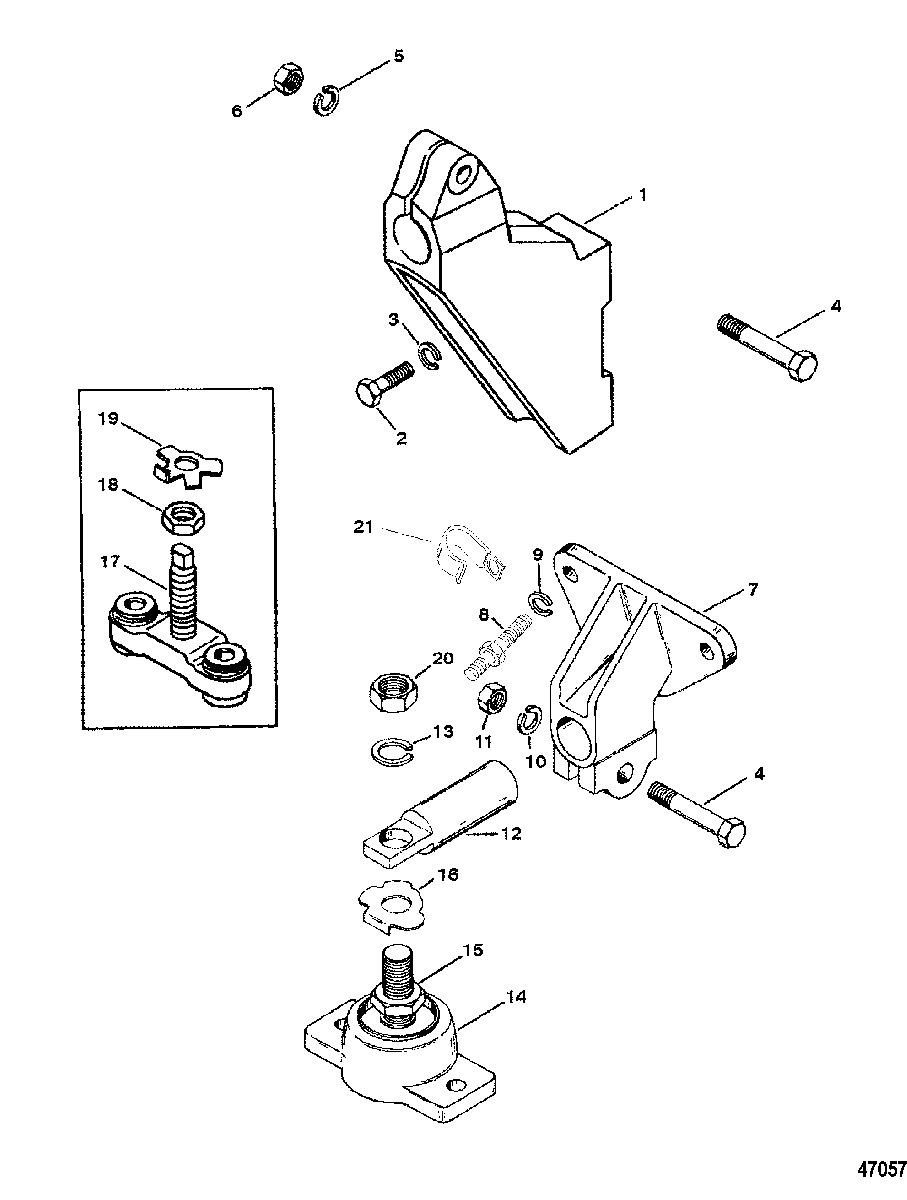

TRANSMISSION AND ENGINE MOUNTING для Mercruiser - 350 MAG. EFI SKI (GEN+) GM 350 V-8 1996 0F820707 THRU 0K040005

  • №
    Артикул
    Название
  • 1
    805597A1 BRACKET ASSEMBLY (TRANSMISSION)
    BRACKET ASSEMBLY (TRANSMISSION)
  • 2
    10-37269 SCREW, (.437-14 x 2.00) (2")
    SCREW, (.437-14 x 2.00) (2")
  • 2
    10-91903 SCREW, (.437-14 x 1.750) (1 3/4")
    SCREW, (.437-14 x 1.750) (1 3/4")
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    10-57357 SCREW, (.437-13 x 2.250) (2-1/4")
    SCREW, (.437-13 x 2.250) (2-1/4")
  • 4
    10-37269 SCREW, (.437-14 x 2.00) (2")
    SCREW, (.437-14 x 2.00) (2")
  • 5
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 6
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 7
    71128A2 BRACKET (ENGINE)
    BRACKET (ENGINE)
  • 8
    10-68101 SCREW, (.375-16 x 1.375) (1-3/8")
    SCREW, (.375-16 x 1.375) (1-3/8")
  • 8
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 11
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 12
    66166A4 TRUNNION
    TRUNNION
  • 13
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 14
    66284A2 BASE ASSEMBLY
    ENGINE
    BASE ASSEMBLY
    ENGINE
  • 15
    11-20739 NUT, (.750-16)
    ENGINE
    NUT, (.750-16)
    ENGINE
  • 16
    14-66658 TAB WASHER
    ENGINE
    TAB WASHER
    ENGINE
  • 17
    816326A2 BASE ASSEMBLY
    TRANSMISSION
    BASE ASSEMBLY
    TRANSMISSION
  • 18
    11-816331 NUT, (.750-16)
    TRANSMISSION
    NUT, (.750-16)
    TRANSMISSION
  • 19
    14-66658 TAB WASHER
    TRANSMISSION
    TAB WASHER
    TRANSMISSION
  • 20
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 21
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
