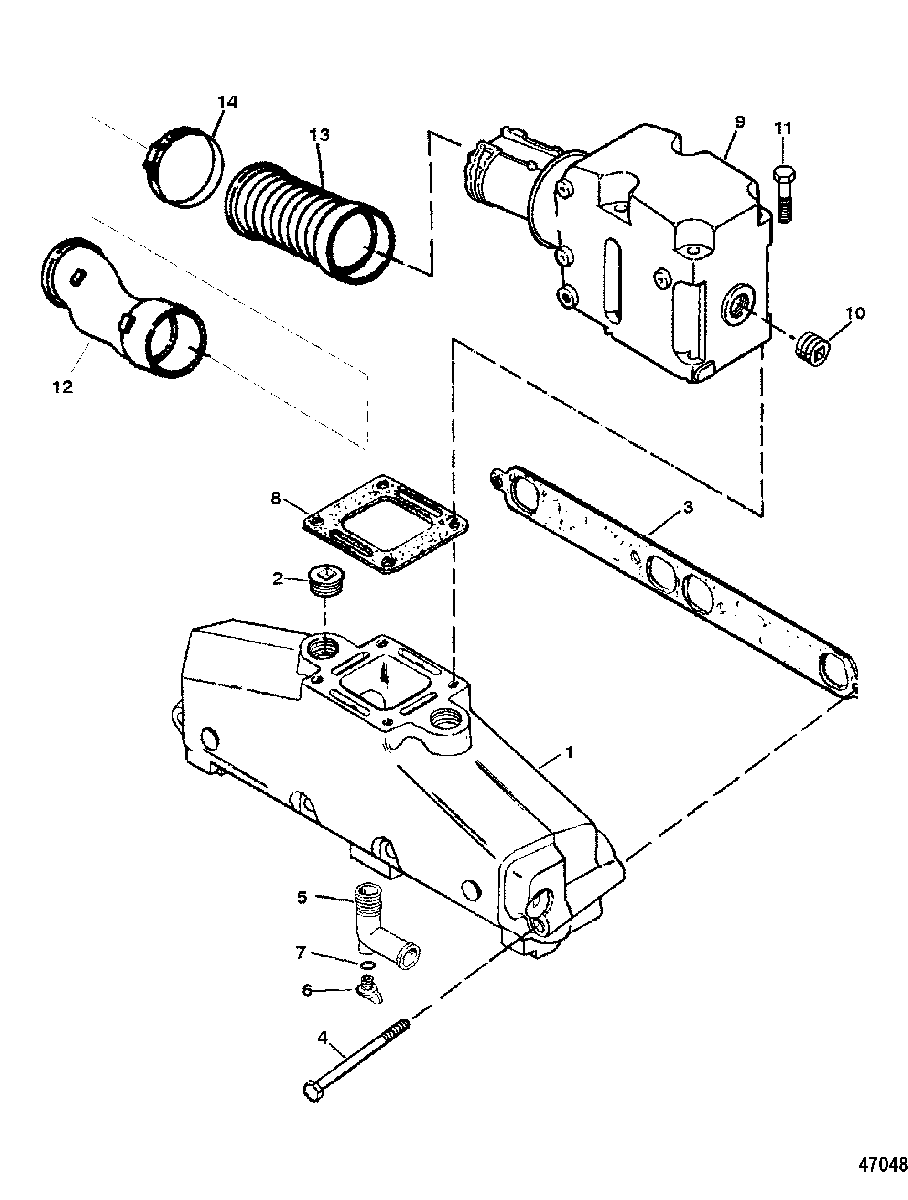

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 350 MAG. EFI SKI (GEN+) GM 350 V-8 1996 0F820707 THRU 0K040005

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    (PORT)
    MANIFOLD ASSEMBLY, Exhaust
    (PORT)
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    (STARBOARD)
    MANIFOLD ASSEMBLY, Exhaust
    (STARBOARD)
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW, (.375-16 x 4.75) (4-5/8")
    SCREW, (.375-16 x 4.75) (4-5/8")
  • 5
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 6
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 7
    25-32509 QUAD RING
    QUAD RING
  • 8
    27-863724 GASKET
    GASKET
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 10
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 11
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 12
    807153T PIPE
    PIPE
  • 13
    32-44348001 TUBE, Exhaust
    TUBE, Exhaust
  • 14
    54-815504372 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    93320A13 ELBOW KIT, Exhaust (3")
    ELBOW KIT, Exhaust (3")
  • -
    93322A12 RISER KIT, Exhaust Elbow (6 In.) (6")
    RISER KIT, Exhaust Elbow (6 In.) (6")
  • -
    27-75611A96 GASKET SET
    GASKET SET
