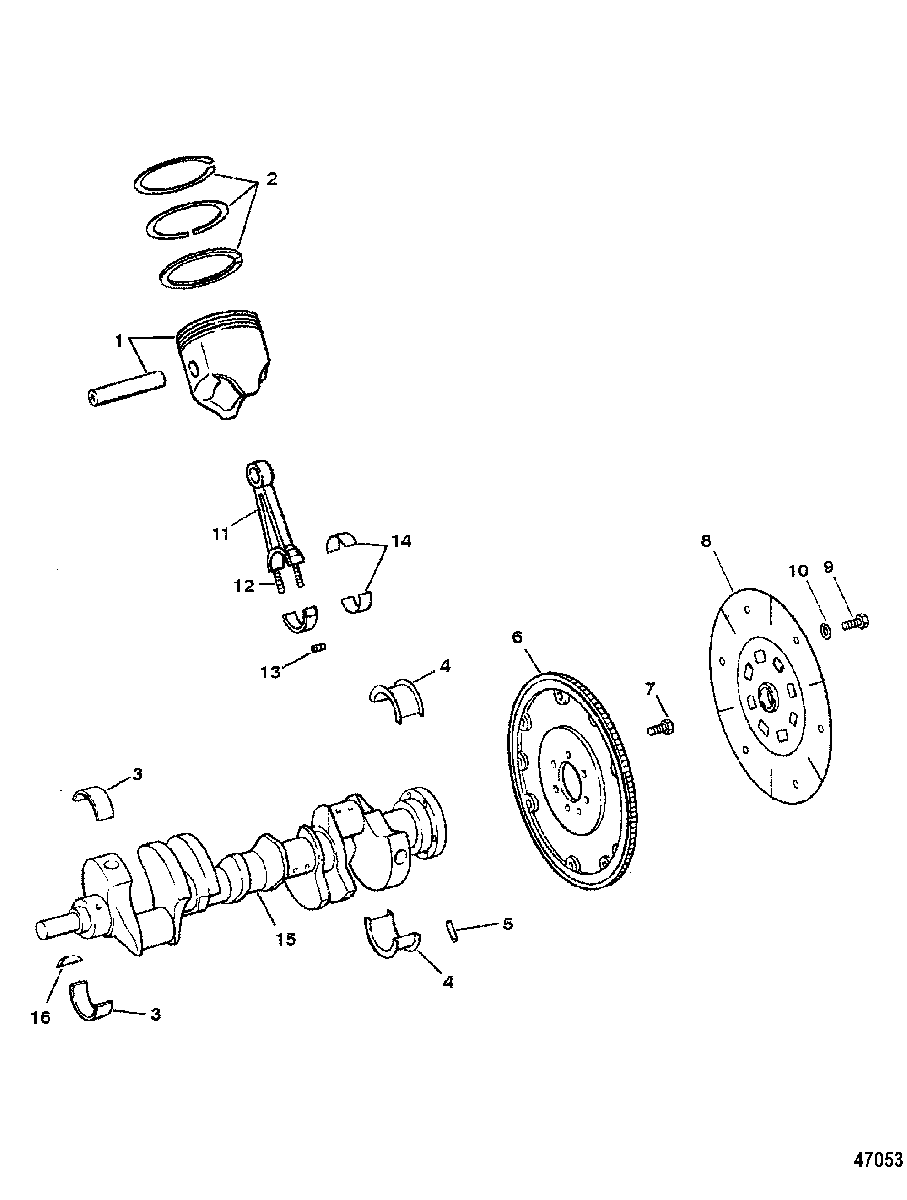

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 350 MAG. EFI SKI (GEN+) GM 350 V-8 1996 0F820707 THRU 0K040005

  • №
    Артикул
    Название
  • 1
    735-835001T PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 1
    735-835002T PISTON ASSEMBLY
    (.5MM O.S.)
    PISTON ASSEMBLY
    (.5MM O.S.)
  • 2
    39-8018611 RING SET
    (STANDARD)
    RING SET
    (STANDARD)
  • 2
    39-835000 RING SET, Piston
    (.5MM O.S.)
    RING SET, Piston
    (.5MM O.S.)
  • 3/4
    23-818465 BEARING SET, 5 Pair
    (STANDARD)
    BEARING SET, 5 Pair
    (STANDARD)
  • 3/4
    23-818466 BEARING SET, 5 Pair
    (.001 USA)
    BEARING SET, 5 Pair
    (.001 USA)
  • 3/4
    23-818467 BEARING SET, 5 Pair
    (.010 USA)
    BEARING SET, 5 Pair
    (.010 USA)
  • 3/4
    23-818468 BEARING SET, 5 Pair
    (.020 USA)
    BEARING SET, 5 Pair
    (.020 USA)
  • 5
    17-43504 PIN, Dowel (1/4 Diameter) (1/4" DIA.)
    PIN, Dowel (1/4 Diameter) (1/4" DIA.)
  • 6
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 7
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 8
    860125T DRIVEPLATE ASSEMBLY
    DRIVEPLATE ASSEMBLY
  • 9
    10-35091 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 12
    10-85802 SCREW, (.375-24 x Special)
    SCREW, (.375-24 x Special)
  • 13
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 14
    23-85701 BEARING
    (PAIR - STANDARD)
    BEARING
    (PAIR - STANDARD)
  • 14
    23-85702 BEARING
    (PAIR - .001 USA)
    BEARING
    (PAIR - .001 USA)
  • 14
    23-85703 BEARING
    (PAIR - .002 USA)
    BEARING
    (PAIR - .002 USA)
  • 14
    23-85704 BEARING
    (PAIR - .010 USA)
    BEARING
    (PAIR - .010 USA)
  • 14
    23-85705 BEARING
    (PAIR - .020 USA)
    BEARING
    (PAIR - .020 USA)
  • 15
    429-8M0054508 CRANKSHAFT
    CRANKSHAFT
  • 16
    28-34466 KEY
    KEY
