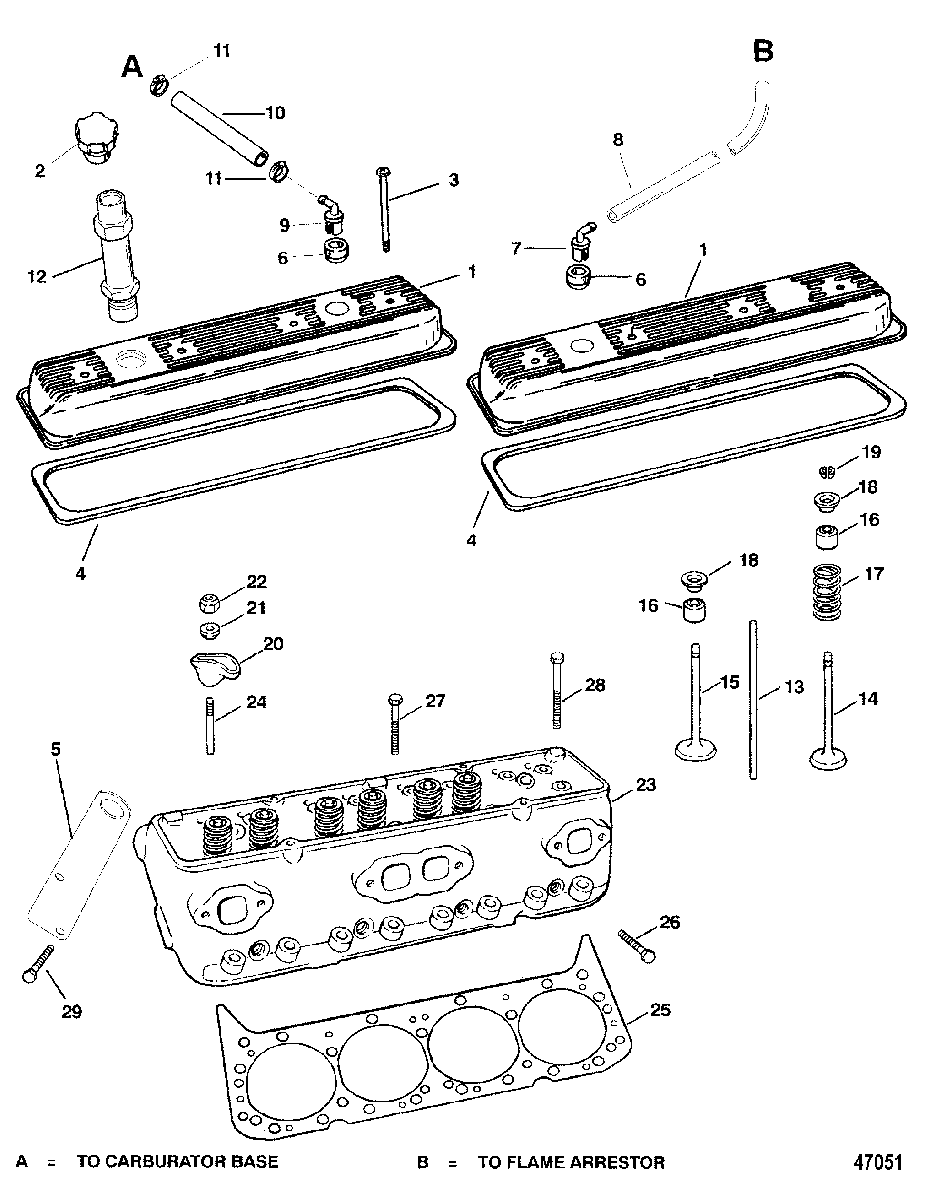

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 350 MAG. EFI SKI (GEN+) GM 350 V-8 1996 0F820707 THRU 0K040005

  • №
    Артикул
    Название
  • 1
    809995 COVER, Rocker
    (STARBOARD)
    COVER, Rocker
    (STARBOARD)
  • 1
    809996 COVER, Rocker
    (PORT)
    COVER, Rocker
    (PORT)
  • 2
    36-18710002 CAP, Oil Fill
    CAP, Oil Fill
  • 3
    10-8M0084557 SCREW
    SCREW
  • 4
    27-17467 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 5
    806815T BRACKET, Lifting Eye
    BRACKET, Lifting Eye
  • 6
    23-8M0071559 GROMMET
    GROMMET
  • 7
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 8
    32-8M0062669 TUBING, (24.00 Inches Bulk)
    TUBING, (24.00 Inches Bulk)
  • 9
    21-806603 VALVE, PVC
    VALVE, PVC
  • 10
    32-8M0062321 HOSE, PVC (22.50 Inch Bulk)
    HOSE, PVC (22.50 Inch Bulk)
  • 11
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 12
    807688T TUBE, Oil Fill
    TUBE, Oil Fill
  • 13
    173391 PUSH ROD
    PUSH ROD
  • 14
    8243171 VALVE, Exhaust
    (STANDARD)
    VALVE, Exhaust
    (STANDARD)
  • 14
    8243181 VALVE, Exhaust
    (.5MM O.S.)
    VALVE, Exhaust
    (.5MM O.S.)
  • 15
    809992 VALVE, Intake
    (STANDARD)
    VALVE, Intake
    (STANDARD)
  • 16
    26-8M0050563 SEAL
    SEAL
  • 17
    24-483471 SPRING
    SPRING
  • 18
    483481 CAP
    CAP
  • 19
    28-547971 KEY
    KEY
  • 20
    35329 ARM KIT, Rocker
    ARM KIT, Rocker
  • 21
    35331 BALL, Rocker Arm
    BALL, Rocker Arm
  • 22
    11-34516 NUT
    NUT
  • 23
    97181 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 24
    16-34522 STUD
    (.003 O.S.)
    STUD
    (.003 O.S.)
  • 24
    16-34521 STUD
    (.013 O.S.)
    STUD
    (.013 O.S.)
  • 25
    27-75611001 GASKET
    GASKET
  • 26
    10-11968 SCREW, (.437-14 x 1.750) (1-3/4")
    SCREW, (.437-14 x 1.750) (1-3/4")
  • 27
    10-119671 SCREW, (.437-14 x 3.00) (3")
    SCREW, (.437-14 x 3.00) (3")
  • 28
    10-11966 SCREW, (.437-14 x 3.750) (3-3/4")
    SCREW, (.437-14 x 3.750) (3-3/4")
  • 29
    10-98261 SCREW, (.375-16 x .750) (3/4") - REAR
    SCREW, (.375-16 x .750) (3/4") - REAR
  • -
    27-75611A96 GASKET SET
    GASKET SET
