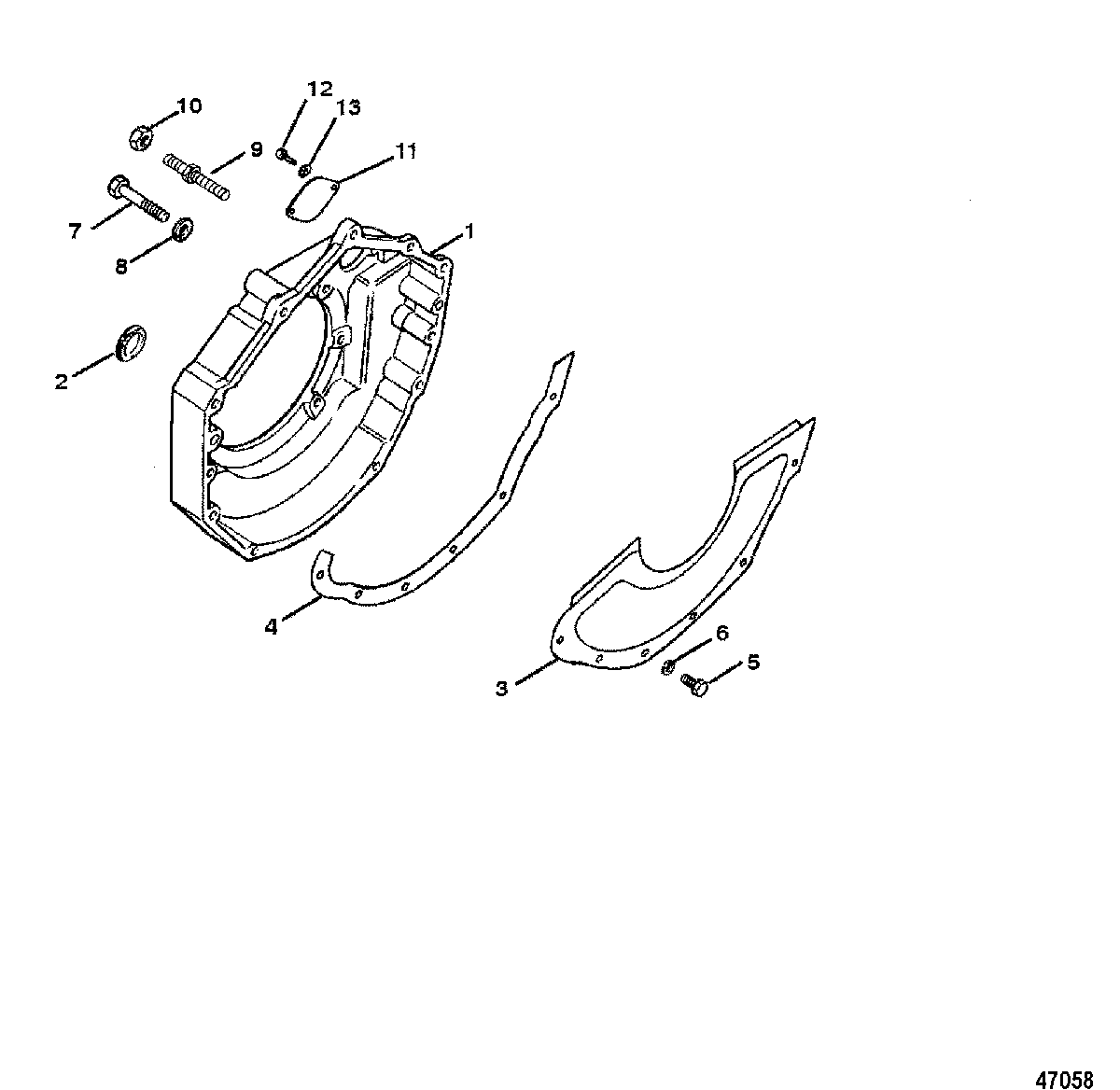

FLYWHEEL HOUSING для Mercruiser - 350 MAG. EFI SKI (GEN+) GM 350 V-8 1996 0F820707 THRU 0K040005

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER KIT
    COVER KIT
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500) (1/2")
    SCREW, (.250-20 x .500) (1/2")
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-34353 SCREW, (.375-16 x 1.00) (1")
    3/8-16 THREADS
    SCREW, (.375-16 x 1.00) (1")
    3/8-16 THREADS
  • 7
    10-47688 SCREW, (.375-16 x 2.750) (2-3/4")
    3/8-16 THREADS
    SCREW, (.375-16 x 2.750) (2-3/4")
    3/8-16 THREADS
  • 7
    10-37612 SCREW, (.375-16 x 1.250) (1-1/4")
    3/8-16 THREADS
    SCREW, (.375-16 x 1.250) (1-1/4")
    3/8-16 THREADS
  • 8
    13-35048 LOCKWASHER, (.375)
    3/8-16 THREADS
    LOCKWASHER, (.375)
    3/8-16 THREADS
  • 7
    10-47277 SCREW, (.312-24 x .750) (3/4")
    5/16-24 THREADS
    SCREW, (.312-24 x .750) (3/4")
    5/16-24 THREADS
  • 8
    13-39107 LOCKWASHER, (.312-24)
    5/16-24 THREADS
    LOCKWASHER, (.312-24)
    5/16-24 THREADS
  • 9
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 10
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 11
    939201 PLATE
    PLATE
  • 12
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 13
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
