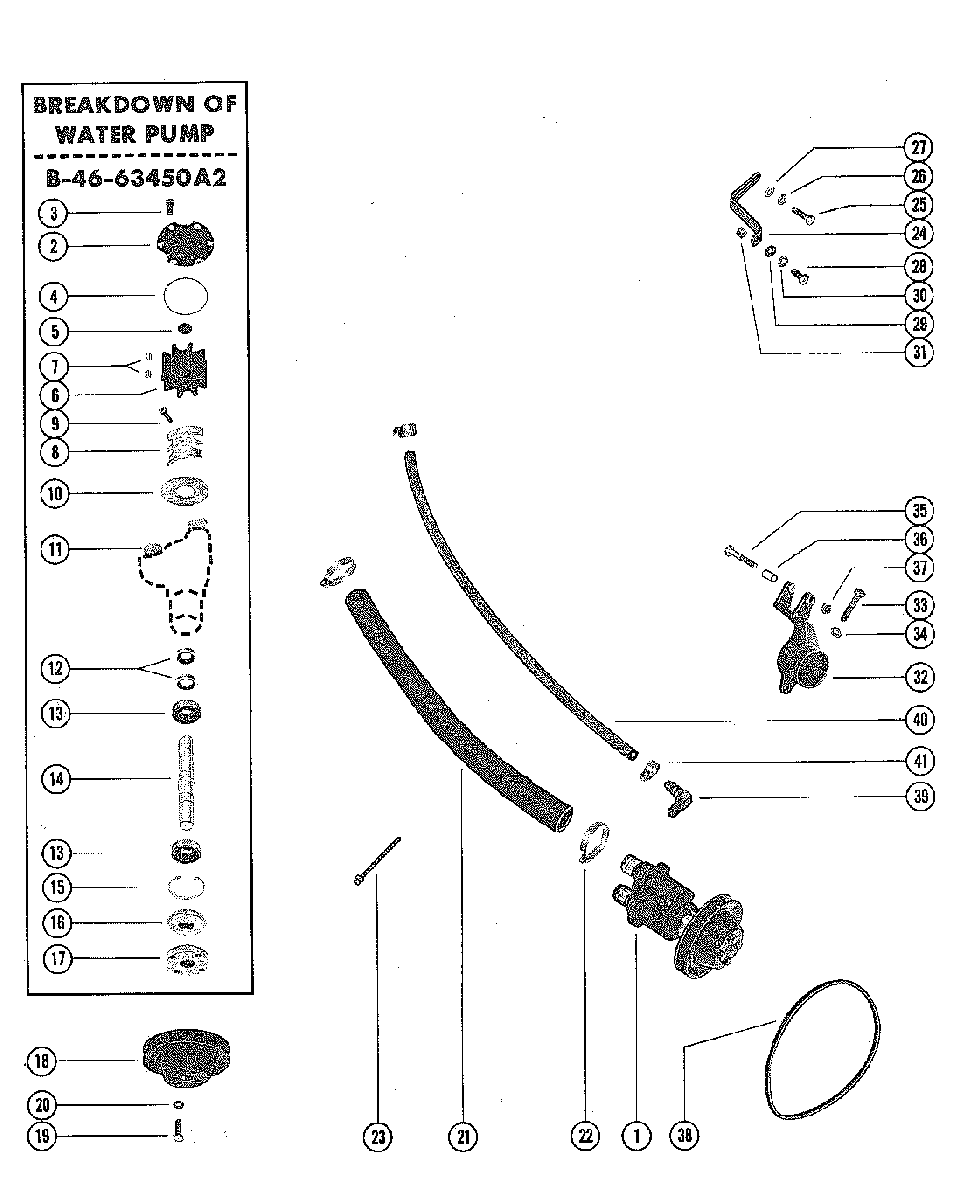

WATER PUMP ASSEMBLY, COMPLETE для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499

  • №
    Артикул
    Название
  • 1
    46-72774A32 WATER PUMP ASSEMBLY, COMPLETE
    WATER PUMP ASSEMBLY, COMPLETE
  • 2
    59155 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28635 SCREW, WATER PUMP COVER ATTACHING (5/8")
    SCREW, WATER PUMP COVER ATTACHING (5/8")
  • 4
    25-53421 "O" RINIG, WATER PUMP COVER
    "O" RINIG, WATER PUMP COVER
  • 5
    19-59504 PLUG, IIMPELLER
    PLUG, IIMPELLER
  • 6
    47-59362T1 IMPELLER
    IMPELLER
  • 7
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 8
    59363A1 CAM SEGMENT ASSEMBLY, WATER PUMP
    CAM SEGMENT ASSEMBLY, WATER PUMP
  • 9
    10-60777 SCREW< CAM SEGMENT ATTACHING (1/2")
    SCREW< CAM SEGMENT ATTACHING (1/2")
  • 10
    59503 WEAR PLATE
    WEAR PLATE
  • 11
    23-47511 SLEEVE, WATER PUMP COVER
    SLEEVE, WATER PUMP COVER
  • 12
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 13
    30-72961 BALL BEARING, WATER PUMP SHAFT
    BALL BEARING, WATER PUMP SHAFT
  • 14
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 15
    53-23720 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 16
    26-72785 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 17
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 18
    59762T PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 19
    10-54630 SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
    SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
  • 20
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 21
    32-8M0062665 HOSE, PUMP TO OIL COOLER INBOARD
    HOSE, PUMP TO OIL COOLER INBOARD
  • 22
    54-815504220 CLAMP, WATER PUMP HOSE INBOARD
    CLAMP, WATER PUMP HOSE INBOARD
  • 23
    61990 STA STRAP, HOSE ATTACHING
    STA STRAP, HOSE ATTACHING
  • 24
    61860 BRACE, WATER PUMP ADJUSTING (STERN DRIVE)
    BRACE, WATER PUMP ADJUSTING (STERN DRIVE)
  • 24
    54478 BRACE, WATER PUMP ADJUSTING INBOARD
    BRACE, WATER PUMP ADJUSTING INBOARD
  • 25
    10-34353 SCREW, ADJUSTING BRACE TO OIL PAN (1") INBOARD
    SCREW, ADJUSTING BRACE TO OIL PAN (1") INBOARD
  • 26
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 27
    12-20553 WASHER, ADJUSTING BRACE SCREW (STERN DRIVE)
    WASHER, ADJUSTING BRACE SCREW (STERN DRIVE)
  • 27
    12-34714 WASHER, ADJSUTING BRACE SCREW (IINBOARD)
    WASHER, ADJSUTING BRACE SCREW (IINBOARD)
  • 28
    10-37612 SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")-STERN DRIVE
    SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")-STERN DRIVE
  • 28
    10-37612 SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")-INBOARD
    SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")-INBOARD
  • 29
    12-34714 WASHER, ADJUSTING BRACE SCREW (STERN DRIVE)
    WASHER, ADJUSTING BRACE SCREW (STERN DRIVE)
  • 29
    12-20553 WASHER< ADJUSTING BRACE SCREW (INBOARD)
    WASHER< ADJUSTING BRACE SCREW (INBOARD)
  • 30
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 31
    11-32219 NUT, ADJUSTIGN BRACE SCREW (STERN DRIVE)
    NUT, ADJUSTIGN BRACE SCREW (STERN DRIVE)
  • 31
    11-32219 NUT, ADJUSTING BRACE SCREW (INBOARD)
    NUT, ADJUSTING BRACE SCREW (INBOARD)
  • 32
    49581 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 33
    10-34354 SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
    SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
  • 34
    13-35048 LOCKWASHER, WATER PUMP BRACKET CLAMPING SCREW
    LOCKWASHER, WATER PUMP BRACKET CLAMPING SCREW
  • 35
    10-52409 SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET (3 1/4")
    SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET (3 1/4")
  • 36
    23-33186 BUSHING, WATER PUMP BRACKET SCREW
    BUSHING, WATER PUMP BRACKET SCREW
  • 37
    11-23161 NUT, WATER PUMP BRACKET SCREW
    NUT, WATER PUMP BRACKET SCREW
  • 38
    57-60327Q BELT, WATER PUMP
    BELT, WATER PUMP
  • 39
    22-328022 PLUG, WATER PUMP BODY (INBOARD)-NOT AS SHOWN
    PLUG, WATER PUMP BODY (INBOARD)-NOT AS SHOWN
  • 39
    22-629101 FITTING, WATER PUMP BODY STERN DRIVE
    FITTING, WATER PUMP BODY STERN DRIVE
  • 40
    32-629872 HOSE, PUMP TO TRANSMISSION COOLER STERN DRIVE
    HOSE, PUMP TO TRANSMISSION COOLER STERN DRIVE
  • 41
    54-815504310 CLAMP, HOSE ATTACHING STERN DRIVE
    CLAMP, HOSE ATTACHING STERN DRIVE
