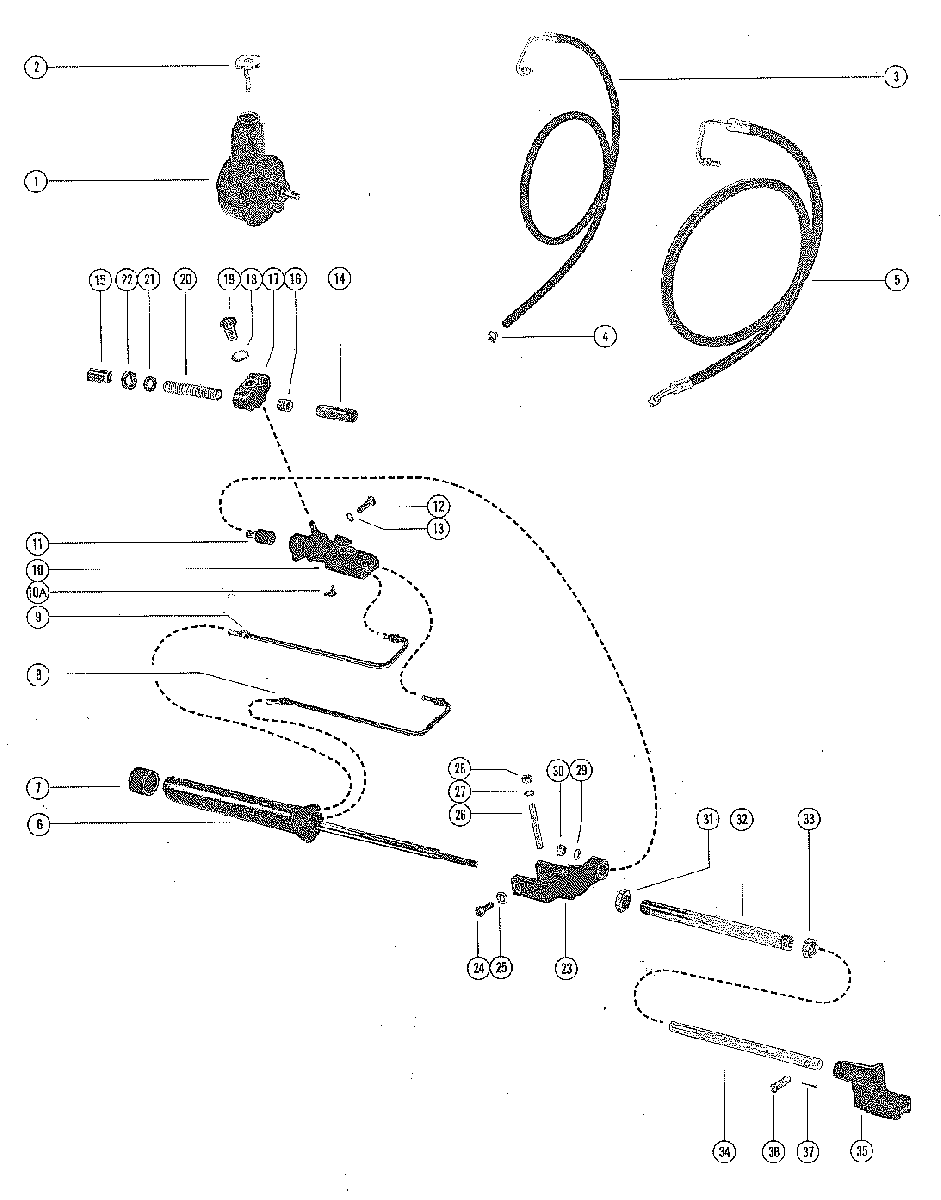

POWER STEERING COMPONENTS для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499
-
№АртикулНазвание
-
190507A3 HYDRAULIC PUMP ASSEMBLY, POWER STEERINGHYDRAULIC PUMP ASSEMBLY, POWER STEERING
-
219-39924 CAP, FILLER-HYDRAULIC PUMPCAP, FILLER-HYDRAULIC PUMP
-
332-9884339 HOSE, RETURN-POWER STEERING (72")
SERIAL 00000000-03415950HOSE, RETURN-POWER STEERING (72")
SERIAL 00000000-03415950 -
332-9884339 HOSE, RETURN-POWER STEERING (46")
SERIAL 03523621-09999999HOSE, RETURN-POWER STEERING (46")
SERIAL 03523621-09999999 -
365231 HOSE, RETURN-POWER STEERING (26")
SERIAL 03523621-09999999HOSE, RETURN-POWER STEERING (26")
SERIAL 03523621-09999999 -
454-815504206 CLAMP, HOSE TO HYDRAULIC PUMPCLAMP, HOSE TO HYDRAULIC PUMP
-
532-55116 HOSE, PRESSURE-POWER STEERING (72")HOSE, PRESSURE-POWER STEERING (72")
-
657969A12 CYLINDER, BOOSTER-POWER STEERINGCYLINDER, BOOSTER-POWER STEERING
-
726059 CAP, RUBBER-BOOSTER CYLINDERCAP, RUBBER-BOOSTER CYLINDER
-
832-57633 TUBE, ECTENDING-POWER STEERING
STARBOARD MOUNTINGTUBE, ECTENDING-POWER STEERING
STARBOARD MOUNTING -
932-57634 TUBE, RETRACTING-POWER STEERING
STARBOARD MOUNTINGTUBE, RETRACTING-POWER STEERING
STARBOARD MOUNTING -
832-57632 TUBER, EXTENDING-POWER STEERING
PORT MOUNTINGTUBER, EXTENDING-POWER STEERING
PORT MOUNTING -
932-57631 TUBE, RETRACTING-POWER STEERING
PORT MOUNTINGTUBE, RETRACTING-POWER STEERING
PORT MOUNTING -
10816458A1 VALVE, POWER STEERINGVALVE, POWER STEERING
-
10A22-67305 FITTING, GREASE-POWER VALVEFITTING, GREASE-POWER VALVE
-
1116-55109T STUD< ADAPTOR-POWER STEERING VALVESTUD< ADAPTOR-POWER STEERING VALVE
-
1223-379612 SCREW, CLAMPING (1 1/4")SCREW, CLAMPING (1 1/4")
-
1313-35048 LOCKWASHER, CLAMPING SCREWLOCKWASHER, CLAMPING SCREW
-
1423-60652 SLEEVE, ADJUSTING -CABLE GUIDE TUBESLEEVE, ADJUSTING -CABLE GUIDE TUBE
-
1564414 GUIDE, CABLE GUIDE TUBE
SERIAL 00000000-03415950GUIDE, CABLE GUIDE TUBE
SERIAL 00000000-03415950 -
1564414 GUIDE, CABLE GUIDE TUBE
SERIAL 03526321-09999999GUIDE, CABLE GUIDE TUBE
SERIAL 03526321-09999999 -
1623-60773 SLEEVE, CABLE GUIDE TUBESLEEVE, CABLE GUIDE TUBE
-
1755110T ADAPTOR, CABLE GUIDE TUBE (DUAL)ADAPTOR, CABLE GUIDE TUBE (DUAL)
-
1813-20897 LOCKWASHER, DUAL ADAPTOR NUTLOCKWASHER, DUAL ADAPTOR NUT
-
1911-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVENUT, DUAL ADAPTOR TO POWER STEERING VALVE
-
2032-55112 TUBE, CABLE GUIDETUBE, CABLE GUIDE
-
2112-37985 WASHER, CABLE GUIDE TUBWASHER, CABLE GUIDE TUB
-
2211-8M0041651 NUT, CABLE GUIDE TUBENUT, CABLE GUIDE TUBE
-
2357286 BRACKET, MOUNTING -TRANSCOM PLATEBRACKET, MOUNTING -TRANSCOM PLATE
-
2410-31832 SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1")SCREW, MOUNTING BRACKET TO TRANSOM PLATE (1")
-
2513-31848 LOCKWASHER, MOUNTING BRACEKT SCREWLOCKWASHER, MOUNTING BRACEKT SCREW
-
2610-57968 SCREW, ADJUSTING-MOUNTING BRACKET(3")SCREW, ADJUSTING-MOUNTING BRACKET(3")
-
2713-35048 LOCKWASHER, ADJUSTING SCREWLOCKWASHER, ADJUSTING SCREW
-
2811-46335 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
2912-20959 WASHER, VAVLE ADAPTOR STUDWASHER, VAVLE ADAPTOR STUD
-
3011-898832 NUT, VALVE ADAPTOR STUDNUT, VALVE ADAPTOR STUD
-
3111-32882 NUT, MOUNTING TUBENUT, MOUNTING TUBE
-
3257971 TUBE, MOUNTING-BOOSTER ROD EXTENSIONTUBE, MOUNTING-BOOSTER ROD EXTENSION
-
3311-55983 NUT, JAM-MOUNTING TUBENUT, JAM-MOUNTING TUBE
-
3457970 EXTENSION, CYLINDER BOOSTER RODEXTENSION, CYLINDER BOOSTER ROD
-
3587854T ADAPTOR, ROD END (STARBOARD MOUNTING)ADAPTOR, ROD END (STARBOARD MOUNTING)
-
3566627 ADAPTOR, ROD END (PORT MOUNTING)ADAPTOR, ROD END (PORT MOUNTING)
-
3617-52798 PIN, CLEVIS-STEERING CABLE AND CLEVIS ATTACHINGPIN, CLEVIS-STEERING CABLE AND CLEVIS ATTACHING
-
3718-46950 COTTER PIN, CLEVIS PIN RETAININGCOTTER PIN, CLEVIS PIN RETAINING
