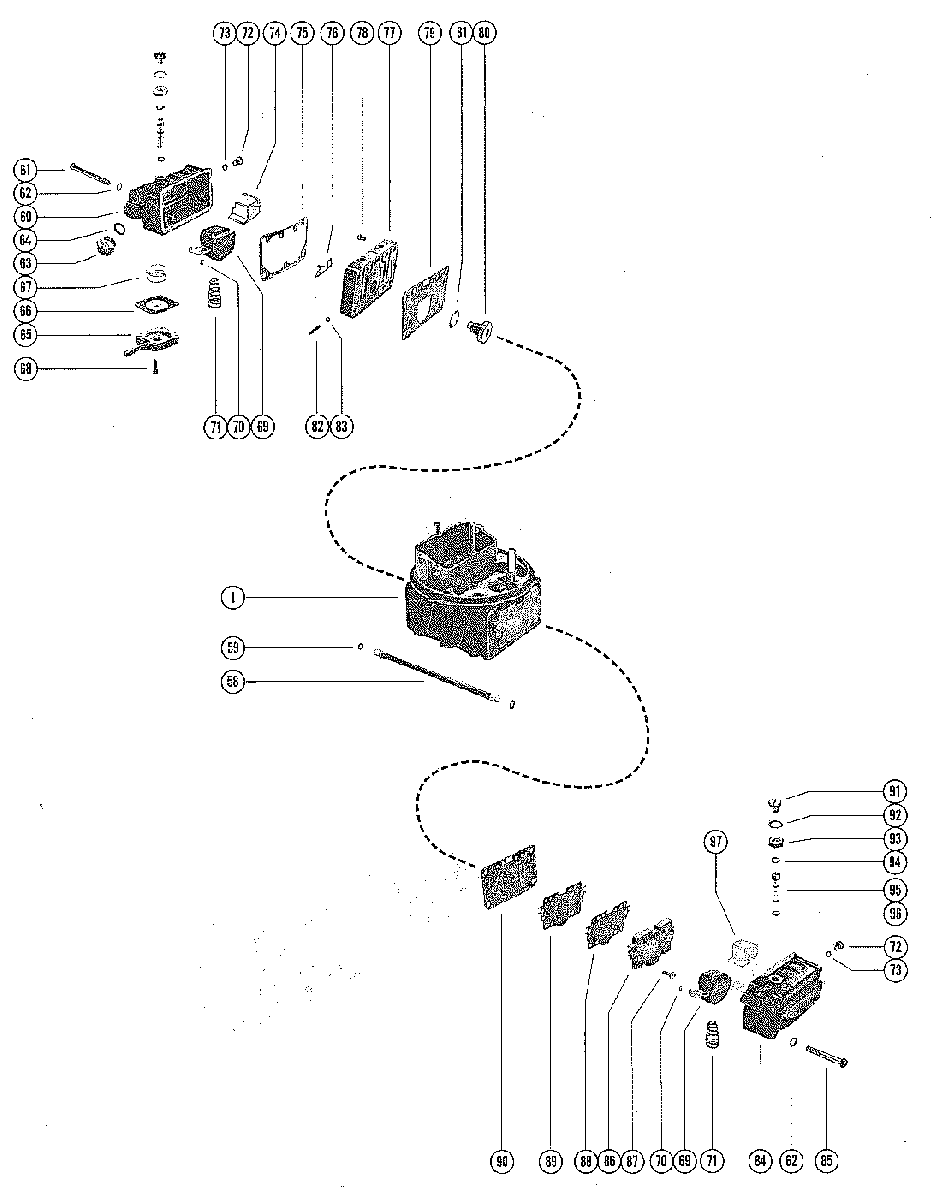

CARBURETOR ASSEMBLY (PAGE 2) для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499

  • №
    Артикул
    Название
  • 1
    1356-5169 CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)
    CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)
  • 58
    1396-4087 TUBE, METERING BODY CONNECTING
    TUBE, METERING BODY CONNECTING
  • 59
    90-8M0143356 "O" RING, CONNECTING TUBE
    "O" RING, CONNECTING TUBE
  • 60
    1396-5163 FUEL BOWL ASSEMBLY, PRIMARY
    FUEL BOWL ASSEMBLY, PRIMARY
  • 61
    1396-4126 SCREW, PRIMARY FUEL BOWL ATTACHING
    SCREW, PRIMARY FUEL BOWL ATTACHING
  • 62
    90-8M0143356 GASKET, FUEL BOWL SCREW
    GASKET, FUEL BOWL SCREW
  • 63
    1396-5159 FITTING, FUEL INLET
    FITTING, FUEL INLET
  • 64
    90-8M0143356 GASKET, FUEL INLET FITTING
    GASKET, FUEL INLET FITTING
  • 65
    1396-4097 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 66
    90-8M0143356 DIAPHRAGM ASSEMBLY, PRIMARY
    DIAPHRAGM ASSEMBLY, PRIMARY
  • 67
    1396-4103 SPRING, DIAPHRAGM RETURN - PRIMARY
    SPRING, DIAPHRAGM RETURN - PRIMARY
  • 68
    1396-4644 SCREW, FUEL PUMP COVER ATTACHING
    SCREW, FUEL PUMP COVER ATTACHING
  • 69
    1396-4088 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 70
    90-8M0143356 RETAINER, FLOAT
    RETAINER, FLOAT
  • 71
    1396-4104 SPRING, FLOAT
    SPRING, FLOAT
  • 72
    1396-4344 PLUG, CHECK - FUEL LEVEL
    PLUG, CHECK - FUEL LEVEL
  • 73
    90-8M0143356 GASKET, FUEL LEVEL CHECK PLUG
    GASKET, FUEL LEVEL CHECK PLUG
  • 74
    1396-4152 BAFFLE, FUEL BOWL - PRIMARY
    BAFFLE, FUEL BOWL - PRIMARY
  • 75
    90-8M0143356 GASKET, FUEL BOWL
    GASKET, FUEL BOWL
  • 76
    1396-4151 BAFFLE, PRIMARY METERINIG BODY
    BAFFLE, PRIMARY METERINIG BODY
  • 77
    1396-5164 METERING BODY, PRIMARY
    METERING BODY, PRIMARY
  • 78
    1396-5160 MAIN JET
    MAIN JET
  • 79
    90-8M0143356 GASKET, PRIMARY METERING BODY
    GASKET, PRIMARY METERING BODY
  • 80
    90-8M0143356 POWER VALVE ASSEMBLY
    POWER VALVE ASSEMBLY
  • 81
    90-8M0143356 GASKET, POWER VALVE
    GASKET, POWER VALVE
  • 82
    90-8M0143356 NEEDLE, IDLE ADJUSTING
    NEEDLE, IDLE ADJUSTING
  • 83
    90-8M0143356 SEAL, IDLE ADJUSTING NEEDLE
    SEAL, IDLE ADJUSTING NEEDLE
  • 84
    1396-5162 FUEL BOWL ASSEMBLY, SECONDARY
    FUEL BOWL ASSEMBLY, SECONDARY
  • 85
    1396-4134 SCREW, SECONDARY FUEL BOWL ATTACHING
    SCREW, SECONDARY FUEL BOWL ATTACHING
  • 86
    1396-5161 METERING BODY, SECONDARY
    METERING BODY, SECONDARY
  • 87
    1396-4136 SCREW, SECONDARY METERING BODY ATTACHING
    SCREW, SECONDARY METERING BODY ATTACHING
  • 88
    90-8M0143356 GASKET, SECONDARY METERING BODY
    GASKET, SECONDARY METERING BODY
  • 89
    1396-4095 PLATE, SECONDARY METERING BODY
    PLATE, SECONDARY METERING BODY
  • 90
    90-8M0143356 GASKET, SECONDARY METERING BODY PLATE
    GASKET, SECONDARY METERING BODY PLATE
  • 91
    1396-4137 SCREW, LOCKING - FUEL VALVE SEAT
    SCREW, LOCKING - FUEL VALVE SEAT
  • 92
    90-8M0143356 GASKET, VAVLE SEAT LOCKING SCREW
    GASKET, VAVLE SEAT LOCKING SCREW
  • 93
    1396-4140 NUT, ADJUSTING - FUEL VALVE
    NUT, ADJUSTING - FUEL VALVE
  • 94
    90-8M0143356 GASKET, VALVE SEAT ADJUSTING NUT
    GASKET, VALVE SEAT ADJUSTING NUT
  • 95
    90-8M0143356 FUEL VALVE ASSEMBLY
    FUEL VALVE ASSEMBLY
  • 96
    90-8M0143356 "O" RING, FUEL VALVE
    "O" RING, FUEL VALVE
  • 97
    1396-4153 BAFFLE, FUEL BOWL - SECONDARY
    BAFFLE, FUEL BOWL - SECONDARY
  • --
    1396-5221 GASKET KIT
    GASKET KIT
  • --
    1396-5222 CARBURETOR REPAIR KIT
    CARBURETOR REPAIR KIT
