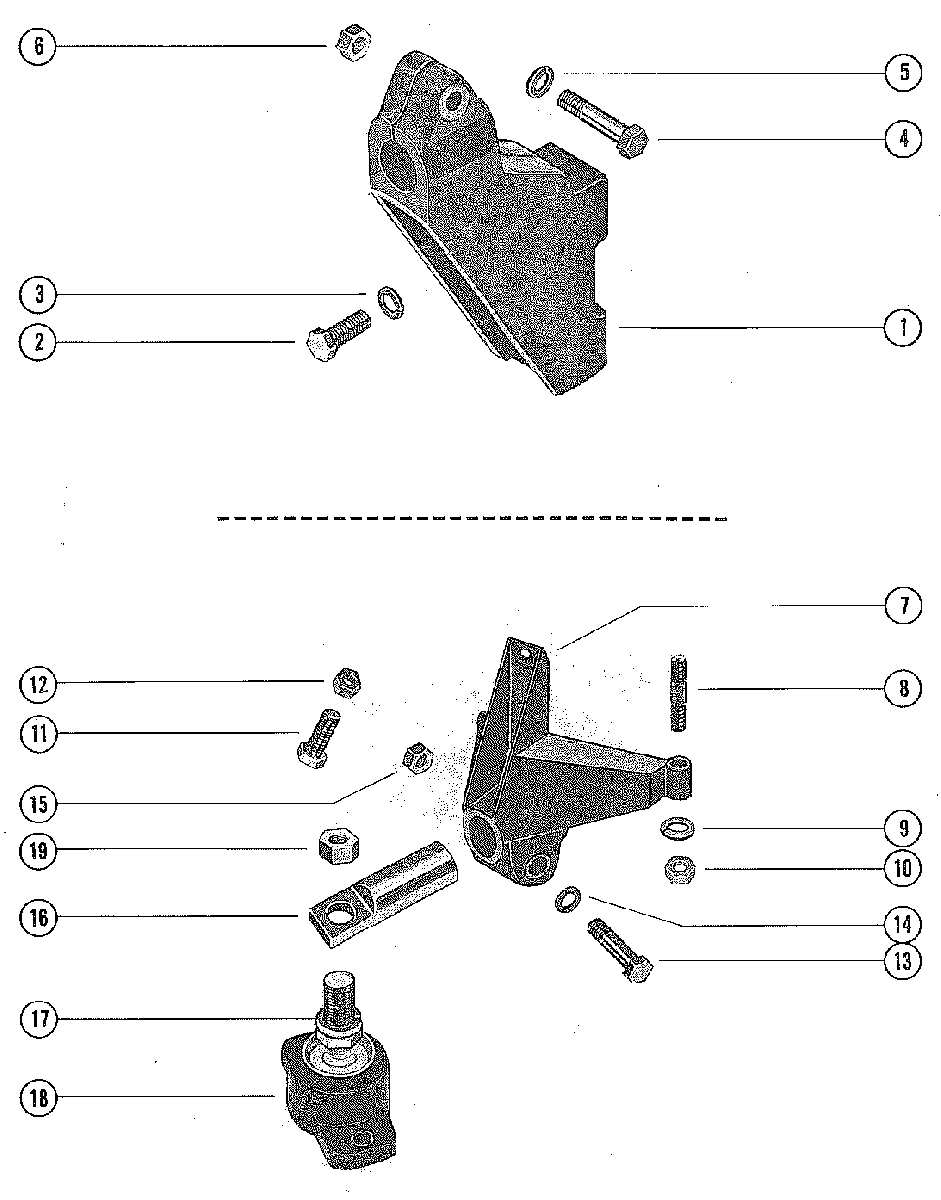

TRANSMISSION AND ENGINE MOUNTING (INBOARD) для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499

  • №
    Артикул
    Название
  • 1
    66417T BRACKET, MOUNTING-TRANSMISSION (REAR)
    BRACKET, MOUNTING-TRANSMISSION (REAR)
  • 2
    10-37269 SCREW, BRACKET TO TRANSMISSION (2")
    SCREW, BRACKET TO TRANSMISSION (2")
  • 3
    13-32993 LOCKWASHER, BRACKET SCREW
    LOCKWASHER, BRACKET SCREW
  • 4
    10-57357 SCREW< CLAMPING-MOUTING BRACKET (2 1/4")
    SCREW< CLAMPING-MOUTING BRACKET (2 1/4")
  • 5
    13-32993 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 6
    11-82670814 NUT, CLAMPING SCREW
    NUT, CLAMPING SCREW
  • 7
    66169 BRACKET, MOUNTING-ENGINE (FRONT)
    BRACKET, MOUNTING-ENGINE (FRONT)
  • 8
    16-65737 STUD, FRONT MOUNTING BRACKET(2 5/8")
    STUD, FRONT MOUNTING BRACKET(2 5/8")
  • 8
    16-65743 STUD, FRONT MOUNTING BRACKET STARBORARD REAR (3")
    STUD, FRONT MOUNTING BRACKET STARBORARD REAR (3")
  • 9
    13-32993 LOCKWASHER< FRONT MOUNTING BRACKET
    LOCKWASHER< FRONT MOUNTING BRACKET
  • 10
    11-34933 NUT< FRONT MOUNTING BRACKET
    NUT< FRONT MOUNTING BRACKET
  • 11
    10-68743 SCREW,ENGINE LOCATING (1 1/4")
    SCREW,ENGINE LOCATING (1 1/4")
  • 12
    11-22024 NUT, ENGINE LOCATING SCREW
    NUT, ENGINE LOCATING SCREW
  • 13
    10-37269 SCREW, CLAMPING-MOUNTING BRACKET (2")
    SCREW, CLAMPING-MOUNTING BRACKET (2")
  • 14
    13-32993 LOCKWASHER, CLAMPING SCREW
    LOCKWASHER, CLAMPING SCREW
  • 15
    11-82670814 NUT, CLAMPING SCREW
    NUT, CLAMPING SCREW
  • 16
    66166A4 TRUNNION, ADJUSTING-MOUNTING BRACKET
    TRUNNION, ADJUSTING-MOUNTING BRACKET
  • 17
    13-68102 LOCKWASHER, MOUNTING BRACKET
    LOCKWASHER, MOUNTING BRACKET
  • 18
    66284A2 BASE, ENGINE MOUNT
    BASE, ENGINE MOUNT
  • 19
    11-20739 NUT, JAM-ENGINE MOUNT BASE
    NUT, JAM-ENGINE MOUNT BASE
