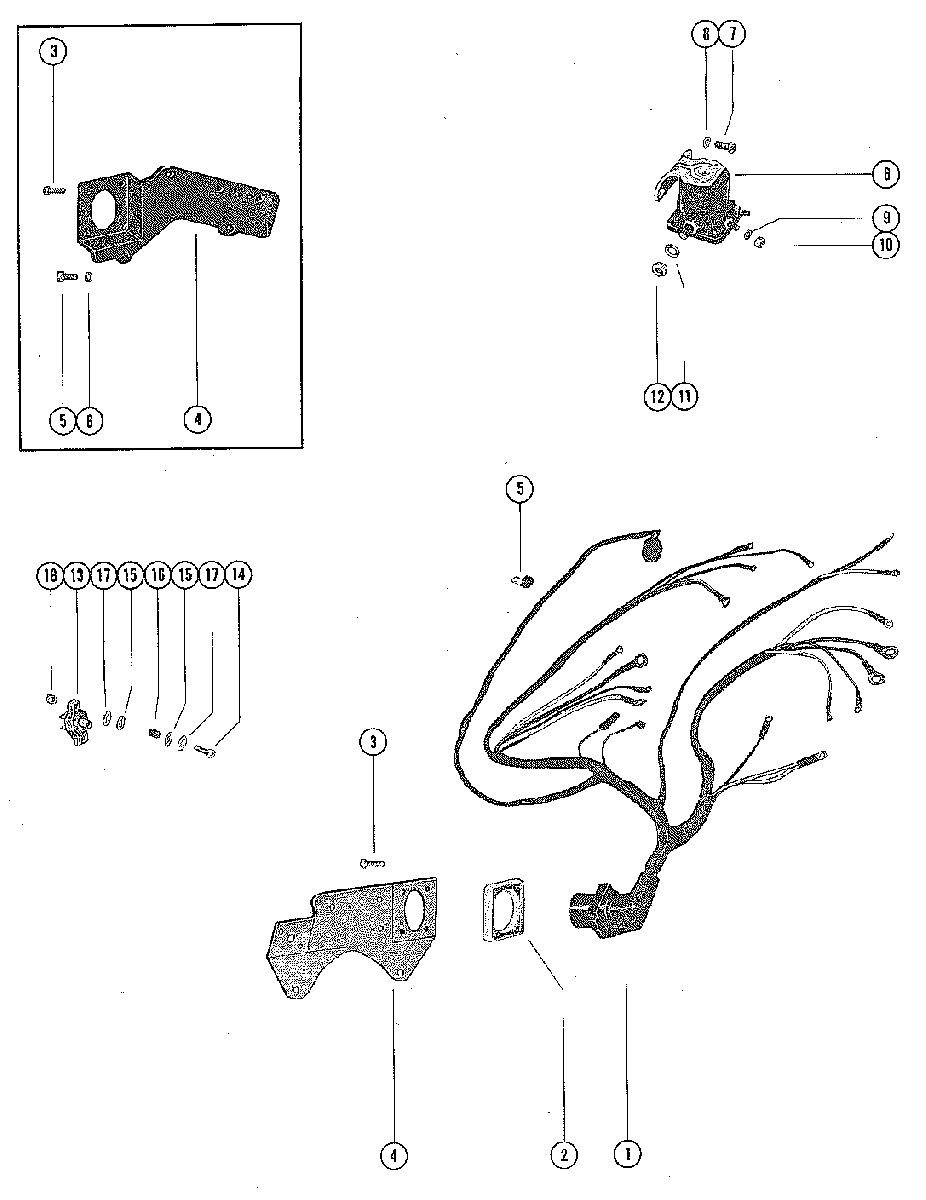

WIRE HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID(STERN) для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304

  • №
    Артикул
    Название
  • 1
    84-71150A2 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    70649 BRACKET, MOUNTING-HARNESS AND CIRCUIT BREAKER
    BRACKET, MOUNTING-HARNESS AND CIRCUIT BREAKER
  • 5
    10-861846 SCREW, MOUNTING BRACKET ATTACKET ATTACHING (3/4")
    SCREW, MOUNTING BRACKET ATTACKET ATTACHING (3/4")
  • 6
    13-39107 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    54869 BRACKET, MOUNTING-STARTER SOLENOID
    BRACKET, MOUNTING-STARTER SOLENOID
  • 8
    36177 INSULATOR, SOLENOID TO MOUNTING BRACKET
    INSULATOR, SOLENOID TO MOUNTING BRACKET
  • 9
    54-61001 CLIP, WIRING HARNESS TO ROCKER COVER
    CLIP, WIRING HARNESS TO ROCKER COVER
  • 10
    89-76416A1 STARTER SOLENOID
    STARTER SOLENOID
  • 11
    10-22956 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (7/8")
    SCREW, STARTER SOLENOID TO MOUNTING BRACKET (7/8")
  • 12
    12-22937 WASHER, STARTER SOLENOID SCREW
    WASHER, STARTER SOLENOID SCREW
  • 13
    11-826709109 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 14
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 15
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 16
    13-26993 LOCKWASHER, STARTER SOLOENOID TERMINAL (5/6")
    LOCKWASHER, STARTER SOLOENOID TERMINAL (5/6")
  • 17
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/6"-24)
    NUT, STARTER SOLENOID TERMINAL (5/6"-24)
  • 17
    11-21908 NUT, STARTER SOLENOID TERMINAL (5/6"-18)
    NUT, STARTER SOLENOID TERMINAL (5/6"-18)
  • 18
    84-77042 CABLE, SOLENOID TO MOTOR (YELLOW-11")
    SERIAL 00000000-04497140
    CABLE, SOLENOID TO MOTOR (YELLOW-11")
    SERIAL 00000000-04497140
  • 18
    84-77042 CABLE,SOLENOID TO MOTOR (YELLOW-12 1/2")
    SERIAL 04497141-09999999
    CABLE,SOLENOID TO MOTOR (YELLOW-12 1/2")
    SERIAL 04497141-09999999
  • 19
    88-65093 CIRCUIT BREAKER (NOT AS SHOWN)
    CIRCUIT BREAKER (NOT AS SHOWN)
  • --
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • --
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 20
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
  • 21
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    GROMMET, CIRCUIT BREAKER SCREW
  • 22
    12-47960 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 23
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    SPACER, CIRCUIT BREAKER GROMMET
  • 24
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 25
    86-45915 TERMINAL BLOCK
    SERIAL 04474706-09999999
    TERMINAL BLOCK
    SERIAL 04474706-09999999
  • 26
    10-48591 SCREW, TERMINAL BLOCK TO MOUNTING BRACEKT
    SERIAL 04474706-09999999
    SCREW, TERMINAL BLOCK TO MOUNTING BRACEKT
    SERIAL 04474706-09999999
  • 27
    10-62568 SCREW, TRIM LEADS TO TERMIMAL
    SERIAL 04474706-09999999
    SCREW, TRIM LEADS TO TERMIMAL
    SERIAL 04474706-09999999
