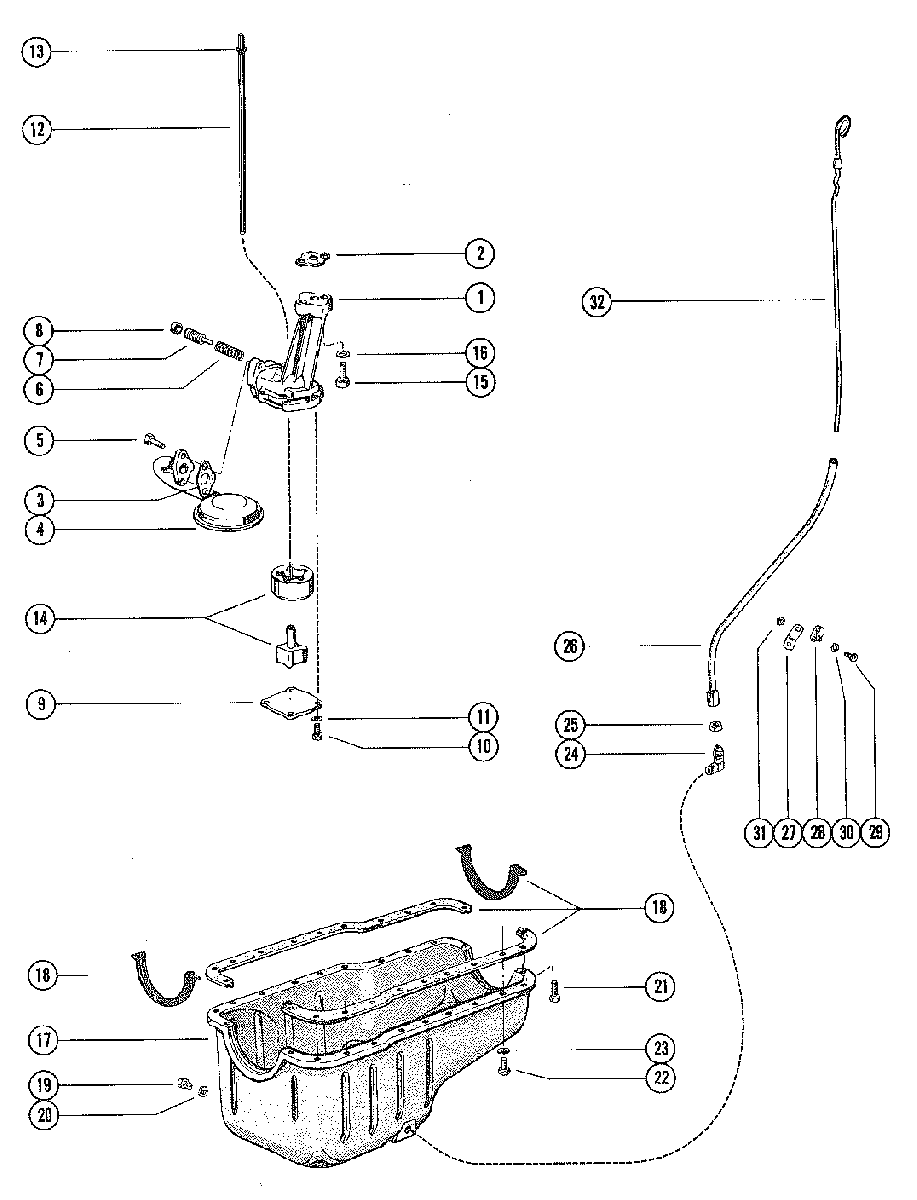

OIL PUMP AND OIL PAN для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304

  • №
    Артикул
    Название
  • 1
    64787 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    27-64789 GASKET, OIL PUMP
    GASKET, OIL PUMP
  • 3
    27-56859 GASKET, OIL PUMP SCREEN
    GASKET, OIL PUMP SCREEN
  • 4
    64788 SCREEN, OIL PUMP (STERN DRIVE)
    SCREEN, OIL PUMP (STERN DRIVE)
  • 4
    32-62131A1 OIL PICKUP ASSEMBLY (INBOARD)
    OIL PICKUP ASSEMBLY (INBOARD)
  • 5
    10-56858 SCREW, SCREEN TO OIL PUMP (7/8")
    SCREW, SCREEN TO OIL PUMP (7/8")
  • 6
    24-64791 SPRING, OIL PUMP RELIEF VALVE
    SPRING, OIL PUMP RELIEF VALVE
  • 7
    64792 PLUNGER, OIL PUMP RELIEF VALVE
    PLUNGER, OIL PUMP RELIEF VALVE
  • 8
    19-65117 PLATE, OIL PUMP
    PLATE, OIL PUMP
  • 10
    10-56133 SCREW, PLATE TO OIL PUMP (5/8")
    SCREW, PLATE TO OIL PUMP (5/8")
  • 11
    13-26992 LOCKWASHER, PLATE SCREW
    LOCKWASHER, PLATE SCREW
  • 12
    64786 SHAFT ASSEMBLY, OIL PUMP
    SHAFT ASSEMBLY, OIL PUMP
  • 13
    53-56860 RING, RETAINING - OIL PUMP SHAFT
    RING, RETAINING - OIL PUMP SHAFT
  • 14
    64785 ROTOR AND SHAFT, OIL PUMP
    ROTOR AND SHAFT, OIL PUMP
  • 15
    10-56176 SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
    SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
  • 16
    13-56177 LOCKWASHER, OIL PUMP SCREW
    LOCKWASHER, OIL PUMP SCREW
  • 17
    72566 OIL PAN (STERN DRIVE)
    OIL PAN (STERN DRIVE)
  • 17
    59529A1 OIL PAN (INBOARD)
    OIL PAN (INBOARD)
  • 18
    27-65114A1 GASKET SET, OIL PAN
    SERIAL 00000000-04465029
    GASKET SET, OIL PAN
    SERIAL 00000000-04465029
  • 18
    27-75483 GASKET SET, OIL PAN
    SERIAL 04465030-09999999
    GASKET SET, OIL PAN
    SERIAL 04465030-09999999
  • 19
    22-60720 PLUG, PIPE - OIL PAN DRAIN (STERN DRIVE)
    PLUG, PIPE - OIL PAN DRAIN (STERN DRIVE)
  • 19
    22-36373 PLUG, PIPE - OIL PAN DRAIN (INBOARD)
    PLUG, PIPE - OIL PAN DRAIN (INBOARD)
  • 20
    27-8M0077608 GASKET, OIL DRAIN PLUG
    GASKET, OIL DRAIN PLUG
  • 21
    10-60710 SCREW, OIL PAN TO CYL. BLOCK (5/16-18 X 7/8") STERN DRIVE
    SCREW, OIL PAN TO CYL. BLOCK (5/16-18 X 7/8") STERN DRIVE
  • 22
    10-60708 SCREW, OIL PAN TO CYL. BLOCK (1/4-20 X 9/16") STERN DRIVE
    SCREW, OIL PAN TO CYL. BLOCK (1/4-20 X 9/16") STERN DRIVE
  • 21
    10-55714 SCREW, OIL PAN TO CYL. BLOCK (5/16-18 X 7/8") INBOARD
    SCREW, OIL PAN TO CYL. BLOCK (5/16-18 X 7/8") INBOARD
  • 22
    10-55715 SCREW, OIL PAN TO CYL. BLOCK (1/4-20 X7/8") INBOARD
    SCREW, OIL PAN TO CYL. BLOCK (1/4-20 X7/8") INBOARD
  • 23
    13-26993 LOCKWASHER, OIL PAN SCREW (5/16") INBOARD
    LOCKWASHER, OIL PAN SCREW (5/16") INBOARD
  • 23
    13-26992 LOCKWASHER, OIL PAN SCREW (1/4") INBOARD
    LOCKWASHER, OIL PAN SCREW (1/4") INBOARD
  • 24
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN INBOARD
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN INBOARD
  • 25
    11-47626 NUT, OIL LEVEL GARGE TUBE INBOARD
    NUT, OIL LEVEL GARGE TUBE INBOARD
  • 26
    62965 TUBE, OIL LEVEL GAUGE (STERN DRIVE)
    TUBE, OIL LEVEL GAUGE (STERN DRIVE)
  • 26
    86890A2 TUBE, OIL LEVEL GAUGE INBOARD
    TUBE, OIL LEVEL GAUGE INBOARD
  • 27
    70717 BRACKET, OIL LEVEL GAUGE TUBE CLIP INBOARD
    BRACKET, OIL LEVEL GAUGE TUBE CLIP INBOARD
  • 28
    54-28938 CLIP, OIL LEVEL GAUGE TUBE INBOARD
    CLIP, OIL LEVEL GAUGE TUBE INBOARD
  • 29
    10-32417 SCREW, OIL GAUGE TUBE CLIP TO BRACKET (5/8") INBOARD
    SCREW, OIL GAUGE TUBE CLIP TO BRACKET (5/8") INBOARD
  • 30
    13-26992 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
    LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
  • 31
    11-20088 NUT, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
    NUT, OIL LEVEL GAUGE TUBE CLIP SCREW INBOARD
  • 32
    63179 GAUGE, OIL LEVEL (DIPSTICK0-STERN DRIVE)
    GAUGE, OIL LEVEL (DIPSTICK0-STERN DRIVE)
  • 32
    62311T GAUGE, OIL LEVEL (DIPSTICK)-INBOARD
    GAUGE, OIL LEVEL (DIPSTICK)-INBOARD
