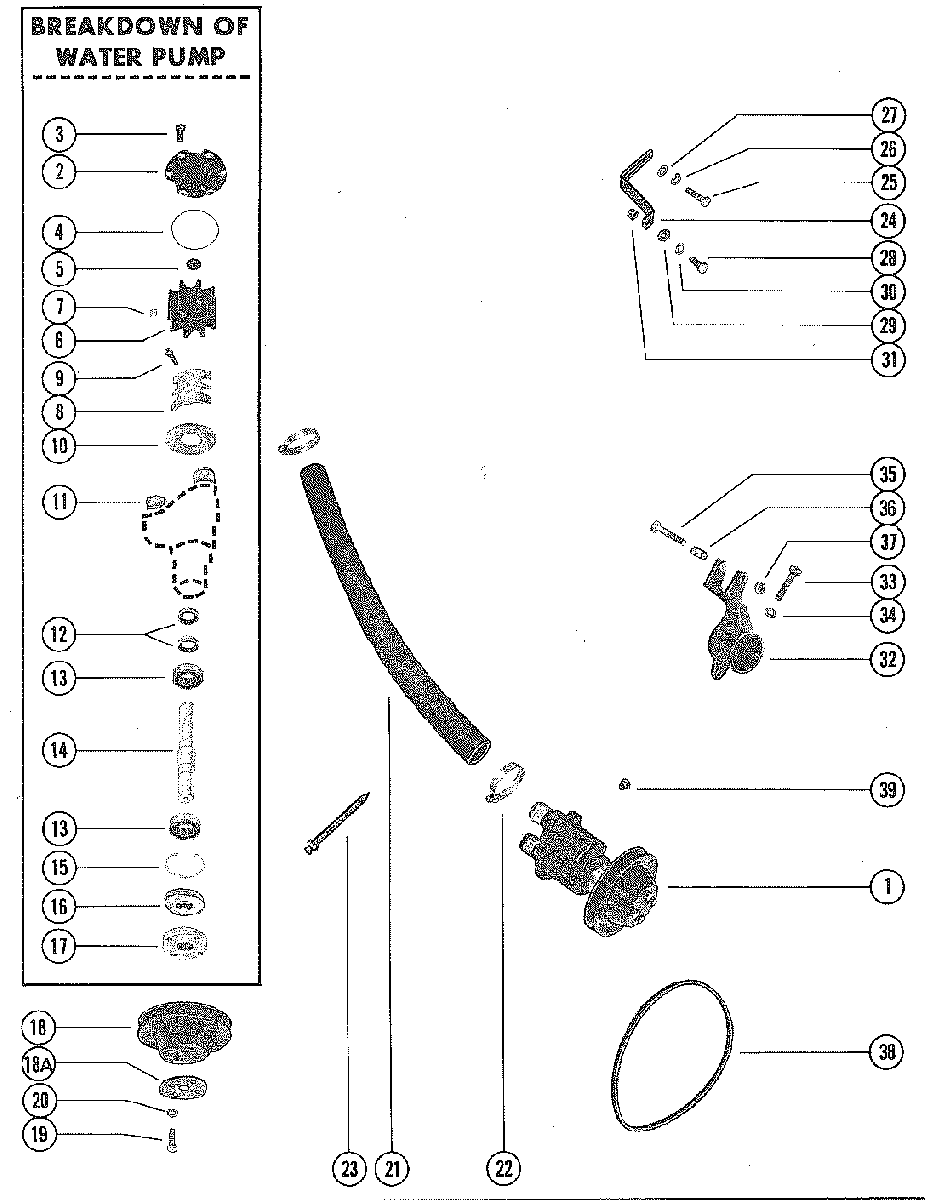

WATER PUMP ASSEMBLY, COMPLETE INBOARD для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304

  • №
    Артикул
    Название
  • 1
    46-72774A32 WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 00000000-04476955
    WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 00000000-04476955
  • 1
    46-72774A32 WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 04476956-09999999
    WATER PUMP ASSEMBLY, COMPLETE
    SERIAL 04476956-09999999
  • 2
    59155 COVER, WATER PUMP
    COVER, WATER PUMP
  • 3
    10-28635 SCREW, WATER PUMP COVER ATTACHING (5/8")
    SCREW, WATER PUMP COVER ATTACHING (5/8")
  • 4
    25-53421 "O" RING, WATER PUMP COVER
    "O" RING, WATER PUMP COVER
  • 5
    19-59504 PLUG, IMPELLER
    PLUG, IMPELLER
  • 6
    47-59362T1 IMPELLER ASSEMBLY
    IMPELLER ASSEMBLY
  • 7
    28-8M0032837 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 8
    59363A1 CAM SEGMENT ASSEMBLY, WATER PUMP
    CAM SEGMENT ASSEMBLY, WATER PUMP
  • 9
    10-60777 SCREW, CAM SEGMENT ATTACHING (1/2")
    SCREW, CAM SEGMENT ATTACHING (1/2")
  • 10
    59503 WEAR PLATE
    WEAR PLATE
  • 11
    23-47511 SLEEVE, WATER PUMP COVER
    SLEEVE, WATER PUMP COVER
  • 12
    26-90562 OIL SEAL, WATER PUMP SHAFT
    OIL SEAL, WATER PUMP SHAFT
  • 13
    30-72961 BALL BEARING, WATER PUMP SHAFT
    SERIAL 00000000-04476955
    BALL BEARING, WATER PUMP SHAFT
    SERIAL 00000000-04476955
  • 13
    30-72961 BALL BEARING, WATER PUMP SHAFT
    SERIAL 04476956-09999999
    BALL BEARING, WATER PUMP SHAFT
    SERIAL 04476956-09999999
  • 14
    59501A1 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 15
    53-23720 RING, SNAP - BALL BEARING RETAINING
    RING, SNAP - BALL BEARING RETAINING
  • 16
    26-72785 OIL SEAL, WATER PUMP SHAFT
    SERIAL 00000000-04476955
    OIL SEAL, WATER PUMP SHAFT
    SERIAL 00000000-04476955
  • 16
    26-72785 OIL SEAL, WATE4R PUMP SHAFT
    SERIAL 04476956-09999999
    OIL SEAL, WATE4R PUMP SHAFT
    SERIAL 04476956-09999999
  • 17
    47530 HUB, WATER PUMP PULLEY
    HUB, WATER PUMP PULLEY
  • 18
    59762T PULLEY, WATER PUMP
    SERIAL 00000000-04476955
    PULLEY, WATER PUMP
    SERIAL 00000000-04476955
  • 18
    73798A1 PULLEY, WATER PUMP
    SERIAL 04476956-09999999
    PULLEY, WATER PUMP
    SERIAL 04476956-09999999
  • 18A
    58265 CLAMPING RING, PULLEY
    SERIAL 04476956-09999999
    CLAMPING RING, PULLEY
    SERIAL 04476956-09999999
  • 19
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SERIAL 00000000-04476955
    SCREW, PULLEY TO WATER PUMP (3/4")
    SERIAL 00000000-04476955
  • 19
    10-33524 SCREW, PULLEY TO WATER PUMP (5/8")
    SERIAL 00476956-09999999
    SCREW, PULLEY TO WATER PUMP (5/8")
    SERIAL 00476956-09999999
  • 20
    13-39107 LOCKWASHER, WATER PULLEY SCREW
    LOCKWASHER, WATER PULLEY SCREW
  • 21
    32-8M0062665 HOSE, PUMP TO OIL COOLER
    HOSE, PUMP TO OIL COOLER
  • 22
    54-815504220 CLAMP, WATER PUMP HOSE
    CLAMP, WATER PUMP HOSE
  • 23
    61990 STA-STRAP, HOSE ATTACHING
    STA-STRAP, HOSE ATTACHING
  • 24
    54478 BRACE, WATER PUMP ADJUSTING
    BRACE, WATER PUMP ADJUSTING
  • 25
    10-34353 SCREW, ADJUSTING BRACE TO OIL PAN (1")
    SCREW, ADJUSTING BRACE TO OIL PAN (1")
  • 26
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 27
    12-34714 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 28
    10-37612 SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")
    SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4")
  • 29
    12-20553 WASHER, ADJUSTING BRACE SCREW
    WASHER, ADJUSTING BRACE SCREW
  • 30
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
  • 31
    11-32219 NUT, ADJUSTING BRACE SCREW
    NUT, ADJUSTING BRACE SCREW
  • 32
    392-4951 BRACKET, WATER PUMP
    BRACKET, WATER PUMP
  • 33
    10-34354 SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
    SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
  • 34
    13-35048 LOCKWASHER, WATER PUMP BRACKET CLAMPING SCREW
    LOCKWASHER, WATER PUMP BRACKET CLAMPING SCREW
  • 35
    10-52409 SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET(3 1/4")
    SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET(3 1/4")
  • 36
    23-33186 BUSHING, WATER PUMP BRACKET SCREW
    BUSHING, WATER PUMP BRACKET SCREW
  • 37
    11-23161 NUT, WATER PUMP BRACKET SCREW
    NUT, WATER PUMP BRACKET SCREW
  • 38
    57-60327Q BELT, WATER PUMP
    SERIAL 00000000-04476955
    BELT, WATER PUMP
    SERIAL 00000000-04476955
  • 38
    57-74271Q BELT, WATER PUMP
    SERIAL 04476956-09999999
    BELT, WATER PUMP
    SERIAL 04476956-09999999
  • 39
    22-328022 PLUG, WATER PUMP BODY
    PLUG, WATER PUMP BODY
