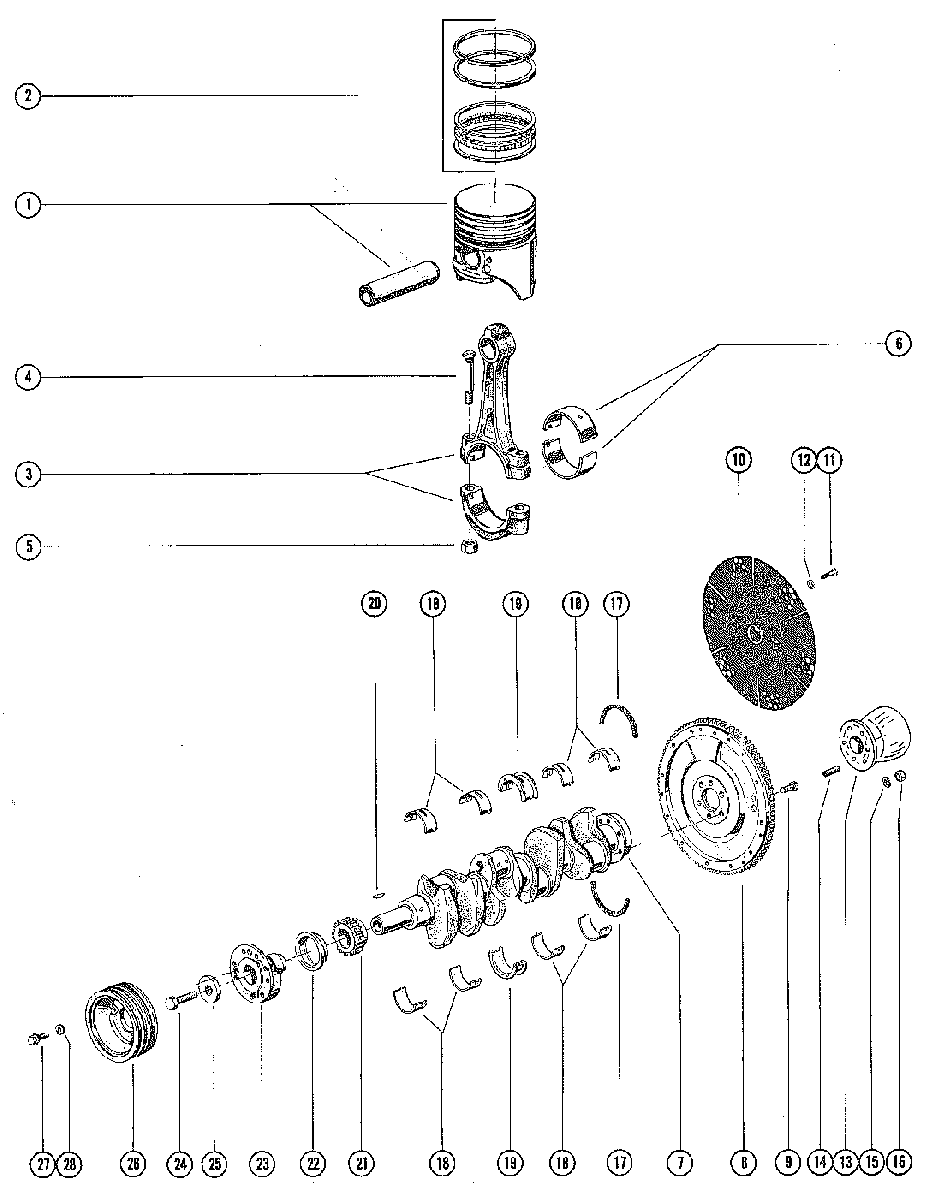

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304

№

Артикул

Название
1

749-6561 PISTON AND PISTON PIN ASS'Y (STANDARD)
SERIAL 00000000-04500860

PISTON AND PISTON PIN ASS'Y (STANDARD)
SERIAL 00000000-04500860
1

749-5795 PISTON AND PISTON PIN ASS'Y (.003 O.S.) - USE STANDARD RING
SERIAL 00000000-04500860

PISTON AND PISTON PIN ASS'Y (.003 O.S.) - USE STANDARD RING
SERIAL 00000000-04500860
1

749-6563 PISTON AND PISTON PIN ASS'Y (.020 O.S.)
SERIAL 00000000-04500860

PISTON AND PISTON PIN ASS'Y (.020 O.S.)
SERIAL 00000000-04500860
1

749-6561 PISTON AND PISTON PIN ASS'Y (STANDARD)
SERIAL 04500861-09999999

PISTON AND PISTON PIN ASS'Y (STANDARD)
SERIAL 04500861-09999999
1

749-6562 PISTON AND PISTON PIN ASS'Y (.003 O.S.) - USE STANDARD RING
SERIAL 04500861-09999999

PISTON AND PISTON PIN ASS'Y (.003 O.S.) - USE STANDARD RING
SERIAL 04500861-09999999
1

749-6563 PISTON AND PISTON PIN ASS'Y (.020 O.S.)
SERIAL 04500861-09999999

PISTON AND PISTON PIN ASS'Y (.020 O.S.)
SERIAL 04500861-09999999
2

39-56114 RING ASSEMBLY, PISTON (STANDARD)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS

RING ASSEMBLY, PISTON (STANDARD)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
2

39-56115 RING ASSEMBLY, PISTON (.020 O.S.)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS

RING ASSEMBLY, PISTON (.020 O.S.)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
3

623-5914 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
4

10-64770 BOLT, CONNECTING ROD

BOLT, CONNECTING ROD
5

11-64769 NUT, CONNECTING ROD BOLT

NUT, CONNECTING ROD BOLT
6

23-85744 BEARING UNIT, CONNECTING ROD (STANDARD)

BEARING UNIT, CONNECTING ROD (STANDARD)
6

23-85745 BEARING UNIT, CONNECTING ROD (.001 U.S.)

BEARING UNIT, CONNECTING ROD (.001 U.S.)
6

23-64766 BEARING UNIT, CONNECTING ROD (.002 U.S.)

BEARING UNIT, CONNECTING ROD (.002 U.S.)
6

23-85746 BEARING UNIT, CONNECTING ROD (.010 U.S.)

BEARING UNIT, CONNECTING ROD (.010 U.S.)
6

23-85747 BEARING UNIT, CONNECTING ROD (.020 U.S.)

BEARING UNIT, CONNECTING ROD (.020 U.S.)
7

446-5105 CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
SERIAL 00000000-04500860

CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
SERIAL 00000000-04500860
7

446-5106 CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
SERIAL 00000000-04500860

CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
SERIAL 00000000-04500860
7

446-6564 CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
SERIAL 04500861-09999999

CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
SERIAL 04500861-09999999
8

238-4428 FLYWHEEL ASSEMBLY - 157 TEETH(STERN DRIVE)
SERIAL 04500861-09999999

FLYWHEEL ASSEMBLY - 157 TEETH(STERN DRIVE)
SERIAL 04500861-09999999
8

238-4055 FLYWHEEL ASSEMBLY - 164 TEETH(INBOARD)

FLYWHEEL ASSEMBLY - 164 TEETH(INBOARD)
9

10-60706 BOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")

BOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")
10

47608A1 DRIVE PLATE, FLYWHEEL -INBOARD

DRIVE PLATE, FLYWHEEL -INBOARD
11

10-56889 SCREW, DRIVE PLATE TO FLYWHEEL- INBOARD

SCREW, DRIVE PLATE TO FLYWHEEL- INBOARD
12

13-26993 LOCKWASHER,DRIVE PLATE SCREW -INBOARD

LOCKWASHER,DRIVE PLATE SCREW -INBOARD
13

59826A3 ENGINE COUPLING ASSEMBLY STERN DRIVE

ENGINE COUPLING ASSEMBLY STERN DRIVE
14

16-60993 STUD, ENGINE COUPLING ATTACHING STERN DRIVE

STUD, ENGINE COUPLING ATTACHING STERN DRIVE
15

12-32648 WASHER, ENGINE COUPLING ATTACHING STUDS STERN DRIVE

WASHER, ENGINE COUPLING ATTACHING STUDS STERN DRIVE
16

11-56407 NUT, ENGINE COUPLING ATTACHING STUD STERN DRIVE

NUT, ENGINE COUPLING ATTACHING STUD STERN DRIVE
17

26-64796 OIL SEAL, CRANDKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)

OIL SEAL, CRANDKSHAFT REAR (LEFT HAND CRANKSHAFT ROTATION)
17

26-64797 OIL SEAL, CRANDKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)

OIL SEAL, CRANDKSHAFT REAR (RIGHT HAND CRANKSHAFT ROTATION)
18

23-85748 BEARING, CRANKSHAFT MAIN (STANDARD)

BEARING, CRANKSHAFT MAIN (STANDARD)
18

23-64775 BEARING, CRANKSHAFT MAIN (.002 U.S.)

BEARING, CRANKSHAFT MAIN (.002 U.S.)
18

23-85749 BEARING, CRANKSHAFT MAIN (.010 U.S.)

BEARING, CRANKSHAFT MAIN (.010 U.S.)
18

23-85750 BEARING, CRANKSHAFT MAIN (.020 U.S.)

BEARING, CRANKSHAFT MAIN (.020 U.S.)
19

23-85751 BEARING, CRANKSHAFT MAIN - CENTER (STANDARD)

BEARING, CRANKSHAFT MAIN - CENTER (STANDARD)
19

23-64779 BEARING, CRANKSHAFT MAIN - CENTER (.002 U.S.)

BEARING, CRANKSHAFT MAIN - CENTER (.002 U.S.)
19

23-85752 BEARING, CRANKSHAFT MAIN - CENTER (.010 U.S.)

BEARING, CRANKSHAFT MAIN - CENTER (.010 U.S.)
19

23-85753 BEARING, CRANKSHAFT MAIN - CENTER (.020 U.S.)

BEARING, CRANKSHAFT MAIN - CENTER (.020 U.S.)
20

28-64771 KEY, TIMING SPROCKET TO CRANKSHAFT (SERIAL #4500860 AND BELOW)

KEY, TIMING SPROCKET TO CRANKSHAFT (SERIAL #4500860 AND BELOW)
20

28-64771 KEY, TIMING SPROCKET TO CRANKSHAFT
SERIAL 04500861-09999999

KEY, TIMING SPROCKET TO CRANKSHAFT
SERIAL 04500861-09999999
21

28-64771 SPROCKET, CRANKSHAFT TIMING (21 TEETH)

SPROCKET, CRANKSHAFT TIMING (21 TEETH)
22

56143 SLINGER, OIL - CRANKSHAFT

SLINGER, OIL - CRANKSHAFT
23

64772 DAMPER ASS'Y CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)

DAMPER ASS'Y CRANKSHAFT (LEFT HAND CRANKSHAFT ROTATION)
23

64773 DAMPER ASS'Y CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)

DAMPER ASS'Y CRANKSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
24

10-60709 BOLT,DAMPER TO CRANKSHAFT (1 5/8")

BOLT,DAMPER TO CRANKSHAFT (1 5/8")
25

12-56148 WASHER, DAMPER TO CRANKSHAFT BOLT

WASHER, DAMPER TO CRANKSHAFT BOLT
26

56144 PULLEY, CRANKSHAFT

PULLEY, CRANKSHAFT
27

13-35048 SCREW, PULLEY TO DAMPER

SCREW, PULLEY TO DAMPER
28

13-35048 LOCKWASHER, PULLEY SCREW

LOCKWASHER, PULLEY SCREW
