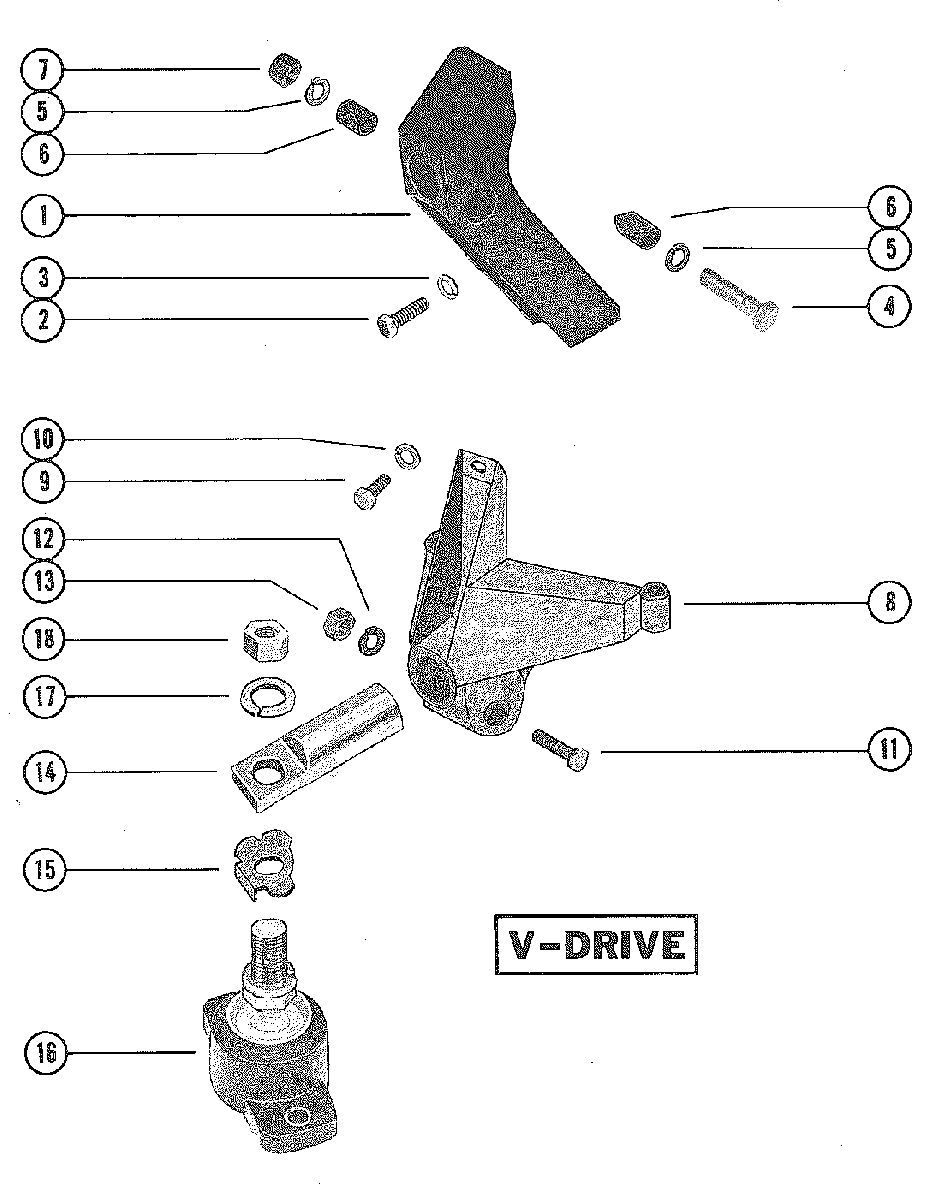

TRANSMISSION AND ENGINE MOUNTING (V-DRIVE) для Mercruiser - 233 FORD 351 V-8 1975-1977 4173000 THRU 4902304
-
№АртикулНазвание
-
162285 BRACKET, MOUNTING (REAR)BRACKET, MOUNTING (REAR)
-
210-47462 SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")SCREW, MOUNTING BRACKET TO TRANSMISSION (1 1/4")
-
313-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
410-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
513-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
654-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
711-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
866169 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
910-47724 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3")
-
1013-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
1137629 SCREW, CLAMPING - MOUNTING BRACKETSCREW, CLAMPING - MOUNTING BRACKET
-
1213-32993 LOCKWASHER, CLAMPING - MOUNTING BRACKETLOCKWASHER, CLAMPING - MOUNTING BRACKET
-
1311-82670814 NUT, SCREW CLAMPINGNUT, SCREW CLAMPING
-
1466166A4 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1514-66658 TAB, WASHER, BASE NUTTAB, WASHER, BASE NUT
-
1666284A2 BASE, MOUNTING - ENGINEBASE, MOUNTING - ENGINE
-
1713-68102 LOCKWASHER, MOUNTING BRACKETLOCKWASHER, MOUNTING BRACKET
-
1811-20739 NUT, JAM - ENGINE MOUNT BASENUT, JAM - ENGINE MOUNT BASE
-
--27-8079821 GASKET, CARBURETORGASKET, CARBURETOR
-
--16-8M0113177 STUD, CARBURETOR MOUNTING (1 9/16")STUD, CARBURETOR MOUNTING (1 9/16")
-
--16-70237 STUD, CARBURETOR MOUNTING (2 11/16")STUD, CARBURETOR MOUNTING (2 11/16")
-
--55241T GAUGE, OIL LEVEL (DIPSTICK)GAUGE, OIL LEVEL (DIPSTICK)
-
--602212A1 EXHAUST ELBOW RISEREXHAUST ELBOW RISER
-
--16-49545 STUD, EXHAUST ELBOW TO RISER (1 3/4")STUD, EXHAUST ELBOW TO RISER (1 3/4")
-
--22-328022 PLUG, EXHAUST ELBOW RISERPLUG, EXHAUST ELBOW RISER
-
--22-36305T ELBOW, EXHAUST RISERELBOW, EXHAUST RISER
-
--16-60607 STUD, MANIFOLD TO RISER (2 1/4")STUD, MANIFOLD TO RISER (2 1/4")
-
--11-49838 NUT, RISER TO EXHAUST ELBOW STUDNUT, RISER TO EXHAUST ELBOW STUD
-
--13-35048 LOCKWASHER, RISER TO EXHAUST ELBOW STUDLOCKWASHER, RISER TO EXHAUST ELBOW STUD
-
--27-997772 GASKET, ELBOW TO RISERGASKET, ELBOW TO RISER
