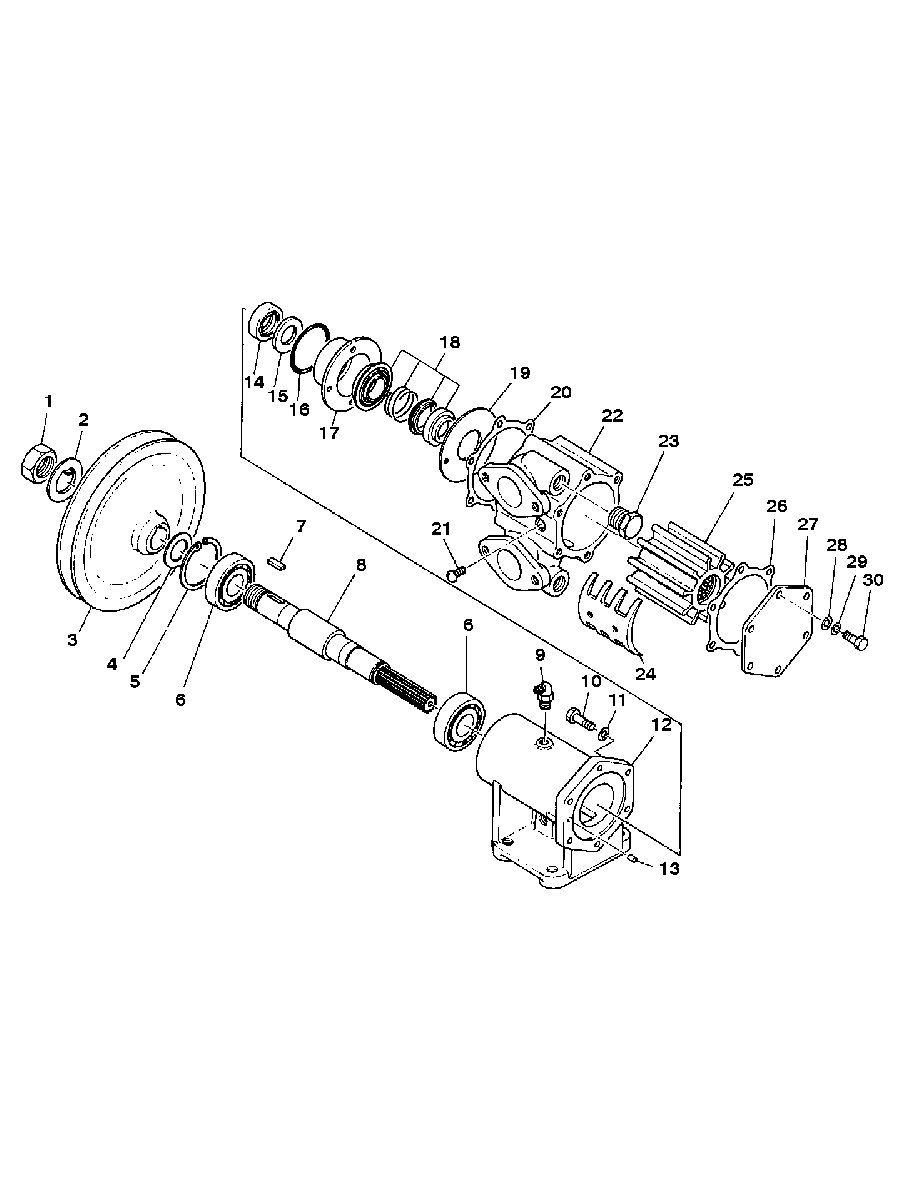

PUMP ASSEMBLY - RAW WATER (831002480) (831002481) для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL

  • №
    Артикул
    Название
  • -
    831002481 PUMP ASSEMBLY-Raw Water
    (WITH REF NO. 9)
    PUMP ASSEMBLY-Raw Water
    (WITH REF NO. 9)
  • -
    831002481 PUMP ASSEMBLY-Raw Water
    (WITHOUT REF NO. 9)
    PUMP ASSEMBLY-Raw Water
    (WITHOUT REF NO. 9)
  • 1
    11-831481020 NUT
    (FOR PUMP ASSY ?831002480!)
    NUT
    (FOR PUMP ASSY ?831002480!)
  • 1
    11-831481070 NUT
    (FOR PUMP ASSY ?831002481!)
    NUT
    (FOR PUMP ASSY ?831002481!)
  • 2
    14-831171040 PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
    PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
  • 2
    831171080 PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
    PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
  • 3
    831732350 PULLEY-Raw Water Pump
    PULLEY-Raw Water Pump
  • 4
    23-831171030 PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
    PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
  • 4
    23-831171070 PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
    PLATE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
  • 5
    53-831261080 RETAINER-Raw Water Pump Bearing
    RETAINER-Raw Water Pump Bearing
  • 6
    30-831721080 BEARING
    (FOR PUMP ASSY ?831002480!)
    BEARING
    (FOR PUMP ASSY ?831002480!)
  • 6
    30-831721140 BEARING
    (FOR PUMP ASSY ?831002481!)
    BEARING
    (FOR PUMP ASSY ?831002481!)
  • 7
    28-838911110 KEY
    KEY
  • 8
    831451630 SHAFT-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
    SHAFT-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
  • 8
    831451780 SHAFT-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
    SHAFT-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
  • 9
    22-830511310 COCK ASSEMBLY-Raw Water
    (FOR PUMP ASSY ?831002480!)
    COCK ASSEMBLY-Raw Water
    (FOR PUMP ASSY ?831002480!)
  • 10
    10-831451210 BOLT
    BOLT
  • 11
    13-831641030 SPRING-Raw Water Pump
    SPRING-Raw Water Pump
  • 12
    831111690 CASE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
    CASE-Raw Water Pump
    (FOR PUMP ASSY ?831002480!)
  • 12
    831111960 CASE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
    CASE-Raw Water Pump
    (FOR PUMP ASSY ?831002481!)
  • 13
    831471110 PIN
    PIN
  • 14
    26-831621050 SEAL-Raw Water Pump Shaft
    SEAL-Raw Water Pump Shaft
  • 15
    12-831471040 SLINGER
    SLINGER
  • 16
    25-831391300 GASKET
    GASKET
  • 17
    831661020 SEAT-Raw Water Pump Floating
    SEAT-Raw Water Pump Floating
  • 18
    26-831041200 SEAL ASSEMBLY-Raw Water Pump
    SEAL ASSEMBLY-Raw Water Pump
  • 19
    12-831211310 COVER-Raw Water Pump
    COVER-Raw Water Pump
  • 20
    27-831191200 GASKET-Raw Water Pump Case
    GASKET-Raw Water Pump Case
  • 21
    10-831361090 SCREW
    SCREW
  • 22
    831111680 CASE-Raw Water Pump
    CASE-Raw Water Pump
  • 23
    19-831161070 PLUG
    PLUG
  • 24
    831661030 SEAT-Raw Water Pump Floating
    SEAT-Raw Water Pump Floating
  • 25
    47-809866T VANE-Raw Water Pump
    VANE-Raw Water Pump
  • 26
    27-831191200 GASKET-Raw Water Pump Case
    GASKET-Raw Water Pump Case
  • 27
    831211320 COVER-Raw Water Pump
    COVER-Raw Water Pump
  • 28
    12-831171050 PLATE-Raw Water Pump
    PLATE-Raw Water Pump
  • 29
    13-831641020 SPRING-Raw Water Pump
    SPRING-Raw Water Pump
  • 30
    10-831451200 BOLT
    BOLT
