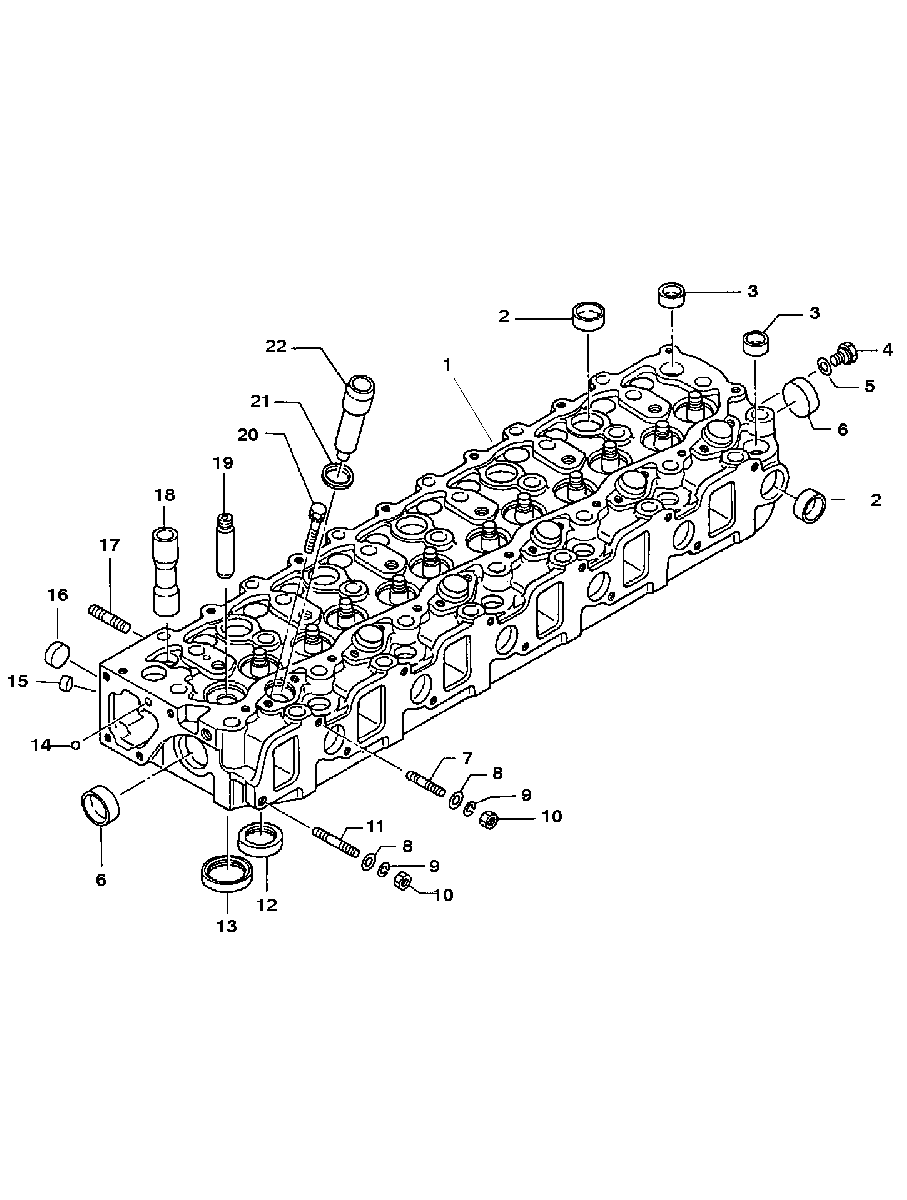

HEAD ASSEMBLY - CYLINDER для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL

  • №
    Артикул
    Название
  • 1
    831101511 HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2372 AND BELOW)
    HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2372 AND BELOW)
  • 1
    831105340 HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2373 THRU 2724)
    HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2373 THRU 2724)
    Производитель Mercury-Mercruiser
  • 1
    831104021 HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2725 AND UP)
    HEAD ASSEMBLY-Cylinder
    (175 H.P.) (SERIAL # 2725 AND UP)
    Производитель Mercury-Mercruiser
  • 1
    831105340 HEAD ASSEMBLY-Cylinder
    (220 H.P.)
    HEAD ASSEMBLY-Cylinder
    (220 H.P.)
    Производитель Mercury-Mercruiser
  • 2
    19-833930105 PLUG-Expansion
    PLUG-Expansion
  • 3
    19-833924103 PLUG-Expansion
    PLUG-Expansion
  • 4
    830410110 PLUG
    PLUG
  • 5
    12-835410100 WASHER
    WASHER
  • 6
    19-833936102 PLUG-Expansion
    PLUG-Expansion
  • 7
    831108320 STUD
    STUD
  • 8
    836008140 WASHER
    WASHER
  • 9
    13-838008200 LOCKWASHER
    LOCKWASHER
  • 10
    11-830908106 NUT
    NUT
  • 11
    831108650 STUD
    STUD
  • 12
    831351240 SEAT-Valve Exhaust
    (175 H.P.) (SERIAL # 2724 AND BELOW)
    SEAT-Valve Exhaust
    (175 H.P.) (SERIAL # 2724 AND BELOW)
  • 12
    831351420 SEAT-Valve Exhaust
    (175 H.P.) (SERIAL # 2725 AND UP)
    SEAT-Valve Exhaust
    (175 H.P.) (SERIAL # 2725 AND UP)
    Производитель Mercury-Mercruiser
  • 12
    831351240 SEAT-Valve Exhaust
    (220 H.P.)
    SEAT-Valve Exhaust
    (220 H.P.)
  • 13
    831311230 SEAT-Valve Intake
    SEAT-Valve Intake
  • 14
    830004060 BALL-Steel
    BALL-Steel
  • 15
    19-833914101 PLUG-Expansion
    PLUG-Expansion
  • 16
    19-833922105 PLUG-Expansion
    PLUG-Expansion
  • 17
    834910120 STUD
    STUD
  • 18
    831441111 PIPE-Push Rod Guide
    PIPE-Push Rod Guide
    Производитель Mercury-Mercruiser
  • 19
    831221201 BUSHING-Valve Guide Intake
    (175 H.P.) (SERIAL # 2724 AND BELOW)
    BUSHING-Valve Guide Intake
    (175 H.P.) (SERIAL # 2724 AND BELOW)
    Производитель Mercury-Mercruiser
  • 19
    831221180 BUSHING-Valve Guide Intake
    (175 H.P.) (SERIAL # 2725 AND UP)
    BUSHING-Valve Guide Intake
    (175 H.P.) (SERIAL # 2725 AND UP)
  • 19
    831221201 BUSHING-Valve Guide Intake
    (220 H.P.)
    BUSHING-Valve Guide Intake
    (220 H.P.)
    Производитель Mercury-Mercruiser
  • 20
    838908123 BOLT
    BOLT
  • 21
    830115214 GASKET
    GASKET
  • 22
    831761110 SEAT-Injector Nozzle
    SEAT-Injector Nozzle
  • 22
    831761120 SEAT-Injector Nozzle (For Head Assy 831104020)
    (HINO BLOCK SER. # 225661 & UP)
    SEAT-Injector Nozzle (For Head Assy 831104020)
    (HINO BLOCK SER. # 225661 & UP)
