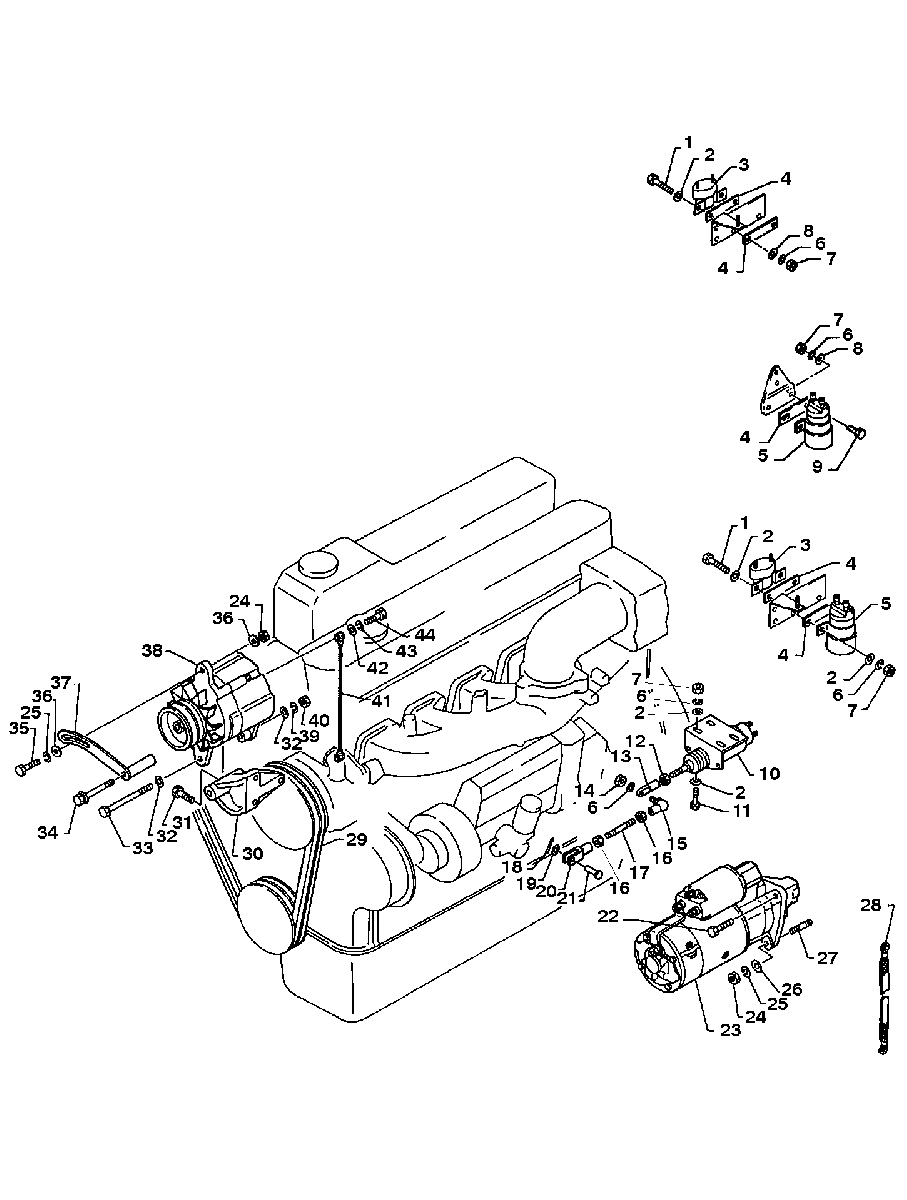

ELECTRICAL PARTS для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL

  • №
    Артикул
    Название
  • 1
    831106250 BOLT
    BOLT
  • 2
    836006140 WASHER (175 H.P.)
    -
    WASHER (175 H.P.)
    -
  • 2
    836006140 WASHER (220 H.P.)
    -
    WASHER (220 H.P.)
    -
  • 3
    834101220 RELAY ASSEMBLY-Start Block
    RELAY ASSEMBLY-Start Block
  • 4
    834551130 PLATE (175 H.P.)
    -
    PLATE (175 H.P.)
    -
  • 4
    834551130 PLATE (220 H.P.)
    -
    PLATE (220 H.P.)
    -
  • 5
    836201260 RELAY ASSEMBLY-Intake Air Heater
    RELAY ASSEMBLY-Intake Air Heater
  • 6
    13-838006150 LOCKWASHER (175 H.P.)
    -
    LOCKWASHER (175 H.P.)
    -
  • 6
    13-838006150 LOCKWASHER (220 H.P.)
    -
    LOCKWASHER (220 H.P.)
    -
  • 7
    11-830106050 NUT (175 H.P.)
    -
    NUT (175 H.P.)
    -
  • 7
    11-830106050 NUT (220 H.P.)
    -
    NUT (220 H.P.)
    -
  • 8
    836006240 WASHER (220 H.P.)
    -
    WASHER (220 H.P.)
    -
  • 9
    831106250 BOLT (220 H.P.)
    -
    BOLT (220 H.P.)
    -
  • 10
    89-817230T SOLENOID ASSEMBLY
    SOLENOID ASSEMBLY
  • 11
    10-831106200 BOLT
    BOLT
  • 12
    11-830906125 NUT
    NUT
  • 13
    835906123 CLEVIS
    CLEVIS
  • 14
    11-830006050 NUT
    NUT
  • 15
    832501020 JOINT ASSEMBLY-Link Rod
    JOINT ASSEMBLY-Link Rod
  • 16
    11-831006040 LOCKNUT
    LOCKNUT
  • 17
    16-836030110 ROD-Link
    ROD-Link
  • 18
    17-830901101 PIN
    PIN
  • 19
    12-836006120 WASHER
    WASHER
  • 20
    17-835106200 CLEVIS
    CLEVIS
  • 21
    17-831106170 PIN-Clevis
    PIN-Clevis
  • 22
    10-831110352 BOLT
    BOLT
  • 23
    831002052 STARTER ASSEMBLY
    (SERIAL # 2562 AND BELOW) (SEE STARTER ASSEMBLY 831001671, 831001672)
    STARTER ASSEMBLY
    (SERIAL # 2562 AND BELOW) (SEE STARTER ASSEMBLY 831001671, 831001672)
  • 23
    831002052 STARTER ASSEMBLY
    (SERIAL # 2563 THRU 2910) (SEE STARTER ASSEMBLY 831001671, 831001672)
    STARTER ASSEMBLY
    (SERIAL # 2563 THRU 2910) (SEE STARTER ASSEMBLY 831001671, 831001672)
  • 23
    831002052 STARTER ASSEMBLY
    (SERIAL # 2911 THRU 2918) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
    STARTER ASSEMBLY
    (SERIAL # 2911 THRU 2918) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
  • 23
    831002052 STARTER ASSEMBLY
    (SERIAL # 2919 THRU 3188) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
    STARTER ASSEMBLY
    (SERIAL # 2919 THRU 3188) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
  • 23
    831002052 STARTER ASSEMBLY
    (SERIAL # 3189 AND UP) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
    STARTER ASSEMBLY
    (SERIAL # 3189 AND UP) (SEE STARTER ASSEMBLY 831002050, 831002051, 831002052)
  • 24
    830110080 NUT
    NUT
  • 25
    838010250 LOCKWASHER
    LOCKWASHER
  • 26
    12-836010220 WASHER
    WASHER
  • 27
    834110300 STUD
    STUD
  • 28
    84-830803116 STRAP-Band
    STRAP-Band
  • 29
    830149119 V BELT SET (2 Belts)
    V BELT SET (2 Belts)
  • 30
    835111690 BRACKET-Alternator
    BRACKET-Alternator
  • 31
    10-831110251 BOLT
    BOLT
  • 32
    12-836014270 WASHER
    WASHER
  • 33
    10-831914102 BOLT
    BOLT
  • 34
    831910105 BOLT
    BOLT
  • 35
    10-831110400 BOLT
    BOLT
  • 36
    12-836010330 SPACER
    SPACER
  • 37
    835091220 BRACE ASSEMBLY-Alternator
    BRACE ASSEMBLY-Alternator
  • 38
    830401262 ALTERNATOR ASSEMBLY-WITH REGULATOR
    (SEE ALTERNATOR ASSY)
    ALTERNATOR ASSEMBLY-WITH REGULATOR
    (SEE ALTERNATOR ASSY)
  • 38
    830401262 ALTERNATOR ASSEMBLY-WITH REGULATOR
    (SEE ALTERNATOR ASSY)
    ALTERNATOR ASSEMBLY-WITH REGULATOR
    (SEE ALTERNATOR ASSY)
  • 39
    13-838014350 LOCKWASHER
    LOCKWASHER
  • 40
    11-830114110 NUT
    NUT
  • 41
    830642530 HARNESS ASSEMBLY-Engine
    HARNESS ASSEMBLY-Engine
  • 42
    12-836008180 WASHER
    WASHER
  • 43
    13-838008200 LOCKWASHER
    LOCKWASHER
  • 44
    831108160 BOLT
    BOLT
  • NS
    F734455 HARNESS-Wiring (Port)
    HARNESS-Wiring (Port)
  • NS
    F734456 HARNESS-Wiring (Starboard)
    HARNESS-Wiring (Starboard)
