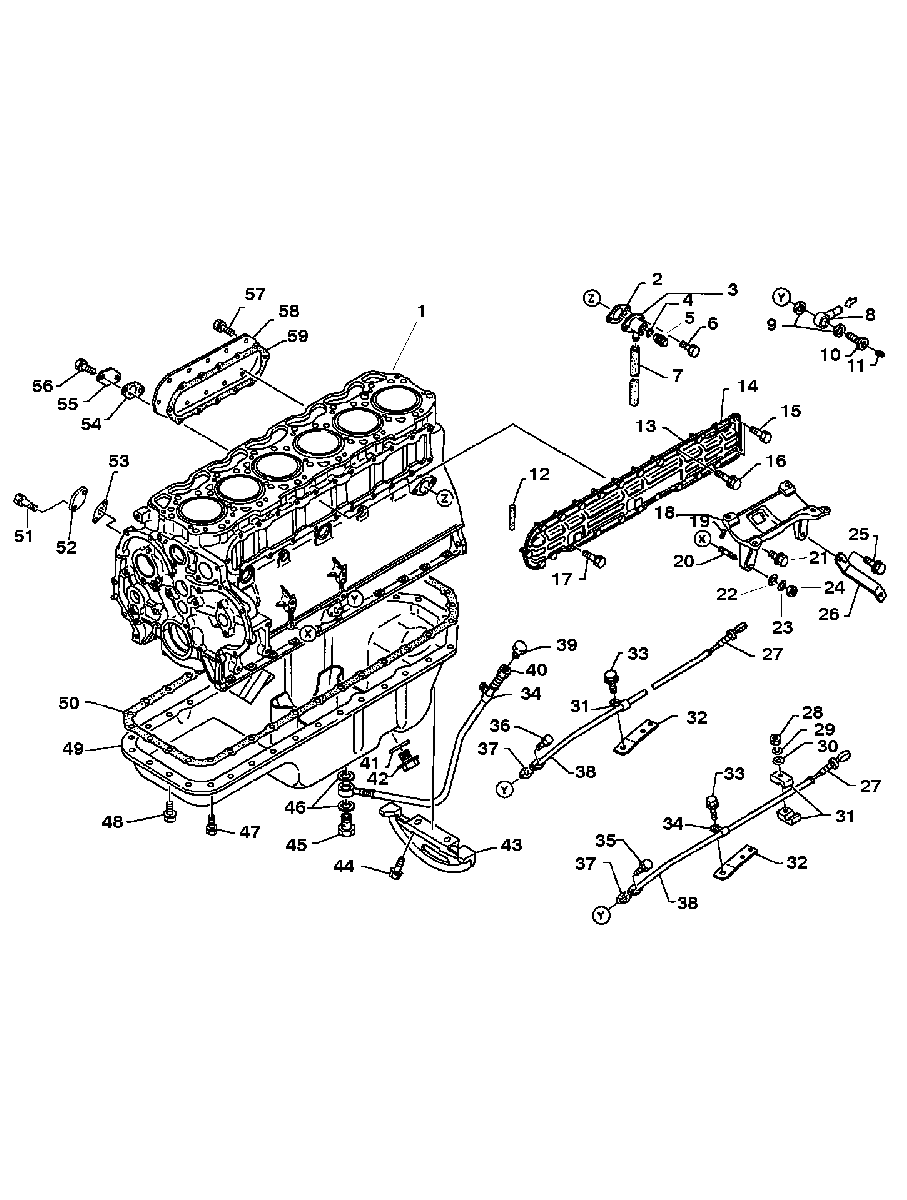

CYLINDER BLOCK COMPONENTS для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL

  • №
    Артикул
    Название
  • 37
    27-830115218 GASKET
    GASKET
  • 38
    831412270 GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 2183 AND BELOW)
    GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 2183 AND BELOW)
  • 38
    831412450 GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 2184 THRU 3188)
    GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 2184 THRU 3188)
  • 38
    831412870 GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 3189 AND UP)
    GUIDE-Oil Level Gage (175 H.P.)
    (SERIAL # 3189 AND UP)
  • 38
    831412270 GUIDE-Oil Level Gage (220 H.P.)
    GUIDE-Oil Level Gage (220 H.P.)
  • 39
    19-832917111 PLUG
    PLUG
  • 40
    834611650 HOSE-Oil
    HOSE-Oil
  • 41
    12-835918113 WASHER (175 H.P.)
    WASHER (175 H.P.)
  • 41
    12-835918113 WASHER (220 H.P.)
    WASHER (220 H.P.)
  • 42
    19-830918104 PLUG
    PLUG
  • 43
    833061012 COVER ASSEMBLY
    COVER ASSEMBLY
  • 44
    10-839108351 BOLT
    BOLT
  • 45
    10-830124297 BOLT
    BOLT
  • 46
    835922101 WASHER
    WASHER
  • 47
    10-838108200 BOLT
    BOLT
  • 48
    10-839108202 BOLT
    BOLT
  • 49
    831011783 PAN ASSEMBLY-Oil
    PAN ASSEMBLY-Oil
  • 50
    831512081 GASKET-Oil Pan
    GASKET-Oil Pan
  • 51
    10-838108200 BOLT (175 H.P.)
    (SERIAL # 2481 AND BELOW)
    BOLT (175 H.P.)
    (SERIAL # 2481 AND BELOW)
  • 51
    838908110 BOLT (175 H.P.)
    (SERIAL # 2482 THRU 2741)
    BOLT (175 H.P.)
    (SERIAL # 2482 THRU 2741)
  • 51
    10-838108200 BOLT (175 H.P.)
    (SERIAL # 2742 AND UP)
    BOLT (175 H.P.)
    (SERIAL # 2742 AND UP)
  • 51
    10-838108200 BOLT (220 H.P.)
    -
    BOLT (220 H.P.)
    -
  • 52
    830211159 FLANGE (175 H.P.)
    (SERIAL # 2481 AND BELOW)
    FLANGE (175 H.P.)
    (SERIAL # 2481 AND BELOW)
  • 52
    830211285 FLANGE (175 H.P.)
    (SERIAL # 2482 THRU 2741)
    FLANGE (175 H.P.)
    (SERIAL # 2482 THRU 2741)
  • 52
    830211159 FLANGE (175 H.P.)
    (SERIAL # 2742 AND UP)
    FLANGE (175 H.P.)
    (SERIAL # 2742 AND UP)
  • 52
    830211159 FLANGE (220 H.P.)
    FLANGE (220 H.P.)
  • 53
    831351110 GASKET-Oil Outlet
    GASKET-Oil Outlet
  • 54
    27-836923102 GASKET-Flange (175 H.P.)
    GASKET-Flange (175 H.P.)
  • 55
    834999997 FLANGE1.5 (175 H.P.)
    FLANGE1.5 (175 H.P.)
  • 56
    10-830110250 BOLT (175 H.P.)
    BOLT (175 H.P.)
  • 57
    838908110 BOLT
    BOLT
  • 58
    832511231 COVER-Valve Push Rod
    COVER-Valve Push Rod
  • 59
    832531300 GASKET-Valve Push Rod Cover
    GASKET-Valve Push Rod Cover
    Производитель Mercury-Mercruiser
