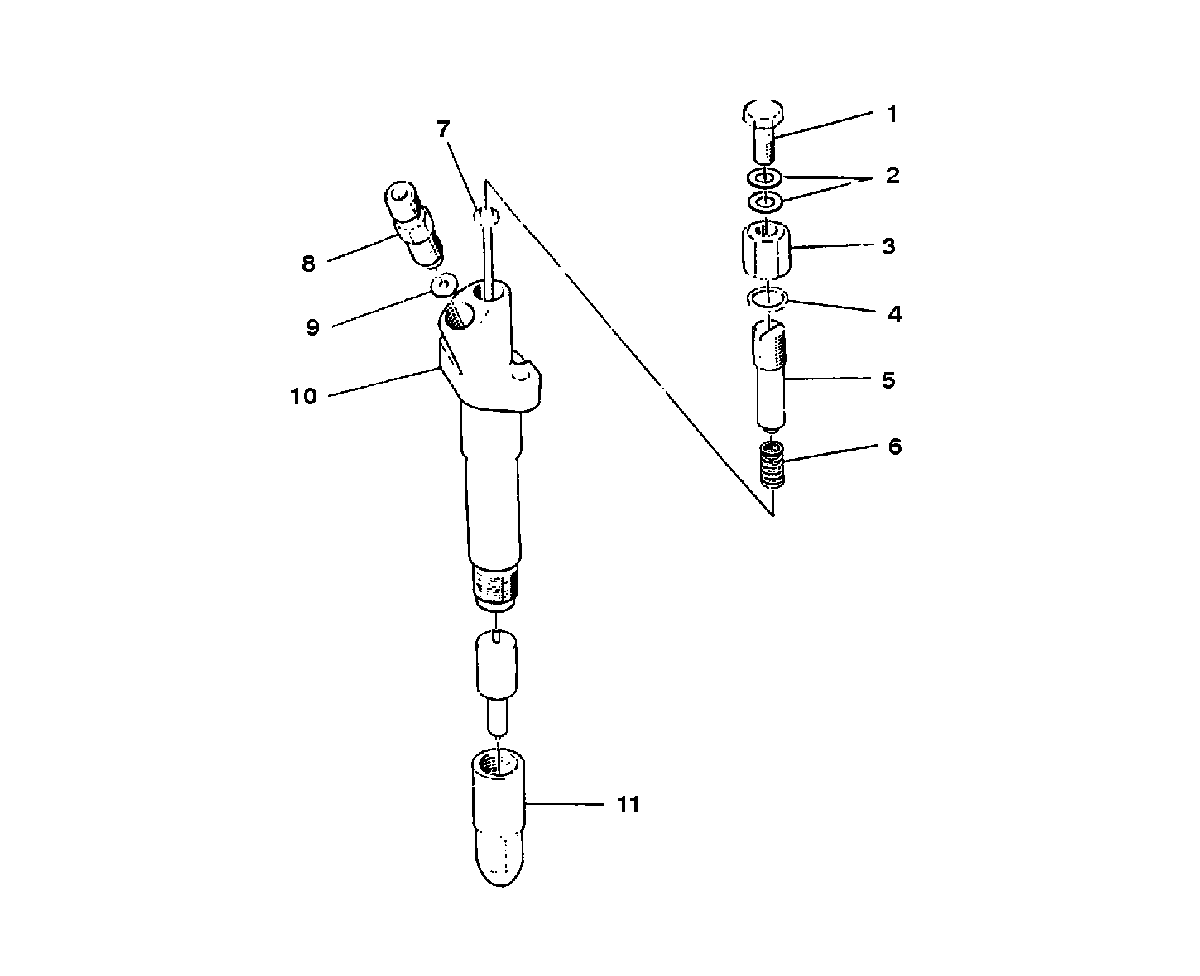

HOLDER ASSEMBLY - NOZZLE для Mercruiser - EH700 (175/220HP) HINO 393 I/L6 ALL

  • №
    Артикул
    Название
  • -
    836301080 HOLDER ASSEMBLY-Nozzle (175 H.P.)
    -
    HOLDER ASSEMBLY-Nozzle (175 H.P.)
    -
  • -
    836301210 HOLDER ASSEMBLY-Nozzle (220 H.P.)
    -
    HOLDER ASSEMBLY-Nozzle (220 H.P.)
    -
  • 1
    10-838351130 BOLT-Joint
    BOLT-Joint
  • 2
    12-838471110 GASKET
    GASKET
  • 3
    836231110 NUT-Nozzle Holder Cap
    NUT-Nozzle Holder Cap
  • 4
    838471290 GASKET-Retaining Nut
    GASKET-Retaining Nut
  • 5
    10-834999984 SCREW-Nozzle Holder Adjust
    SCREW-Nozzle Holder Adjust
  • 6
    24-836151060 SPRING-Nozzle
    SPRING-Nozzle
  • 7
    17-836161030 PIN-Nozzle Holder Press
    PIN-Nozzle Holder Press
  • 8
    836011130 INLET CONNECTOR (175 H.P.)
    -
    INLET CONNECTOR (175 H.P.)
    -
  • 8
    836111180 INLET CONNECTOR (220 H.P.)
    -
    INLET CONNECTOR (220 H.P.)
    -
  • 9
    15-836211070 GASKET
    GASKET
  • 10
    836021040 BODY ASSEMBLY-Nozzle Holder (175 H.P.)
    -
    BODY ASSEMBLY-Nozzle Holder (175 H.P.)
    -
  • 10
    836021160 BODY ASSEMBLY-Nozzle Holder (220 H.P.)
    -
    BODY ASSEMBLY-Nozzle Holder (220 H.P.)
    -
  • 11
    836331030 NUT-Nozzle Retaining
    NUT-Nozzle Retaining
  • -
    FG1030 Gasket Set
    Contents indicated by footnote 11.
    Gasket Set
    Contents indicated by footnote 11.
