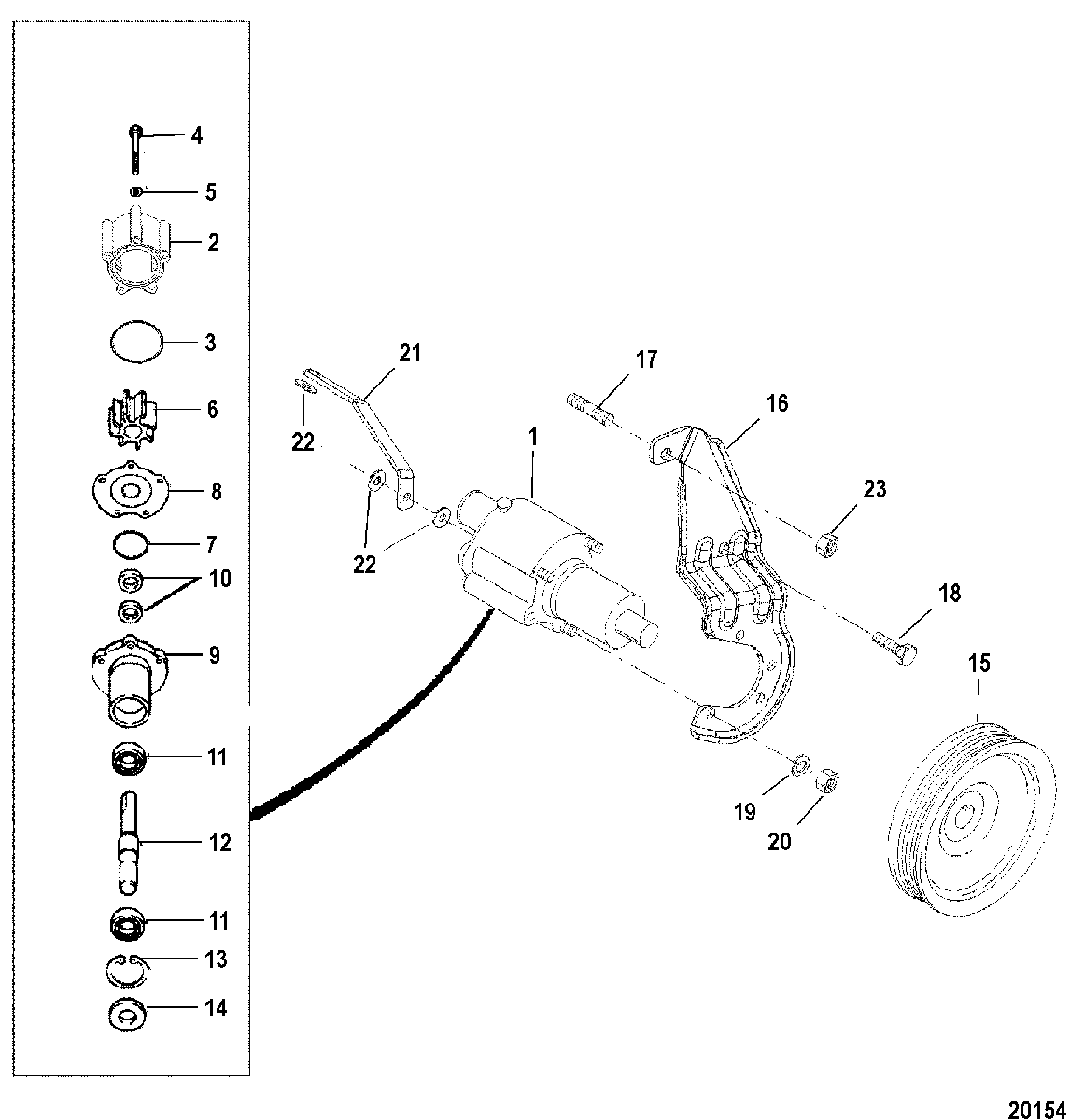

Sea Water Pump для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200
-
№АртикулНазвание
-
146-807151A9 PUMP ASSEMBLY, Sea WaterPUMP ASSEMBLY, Sea Water
-
246-807151A14 BODY/IMPELLER KITBODY/IMPELLER KIT
-
325-33465 O-RINGO-RING
-
410-74191 SCREW, (.312-18 x 3.250)SCREW, (.312-18 x 3.250)
-
512-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
647-59362T1 IMPELLERIMPELLER
-
725-94288 QUAD RINGQUAD RING
-
894576 WEAR PLATE (INNER)WEAR PLATE (INNER)
-
946-94913A5 HOUSING ASSEMBLY, PumpHOUSING ASSEMBLY, Pump
-
1026-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1130-72961 BEARING, BallBEARING, Ball
-
1259501A1 SHAFTSHAFT
-
1353-23720 RING, RetainingRING, Retaining
-
1426-72785 SEALSEAL
-
15861579 PULLEYPULLEY
-
16861087T BRACKETBRACKET
-
1716-806591 STUD, (7/16-14)STUD, (7/16-14)
-
1810-17965 SCREW, (.437-14 x .70)SCREW, (.437-14 x .70)
-
1913-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
2011-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
21861530 BRACEBRACE
-
2212-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
2311-22024 NUT, (.437-14)NUT, (.437-14)
