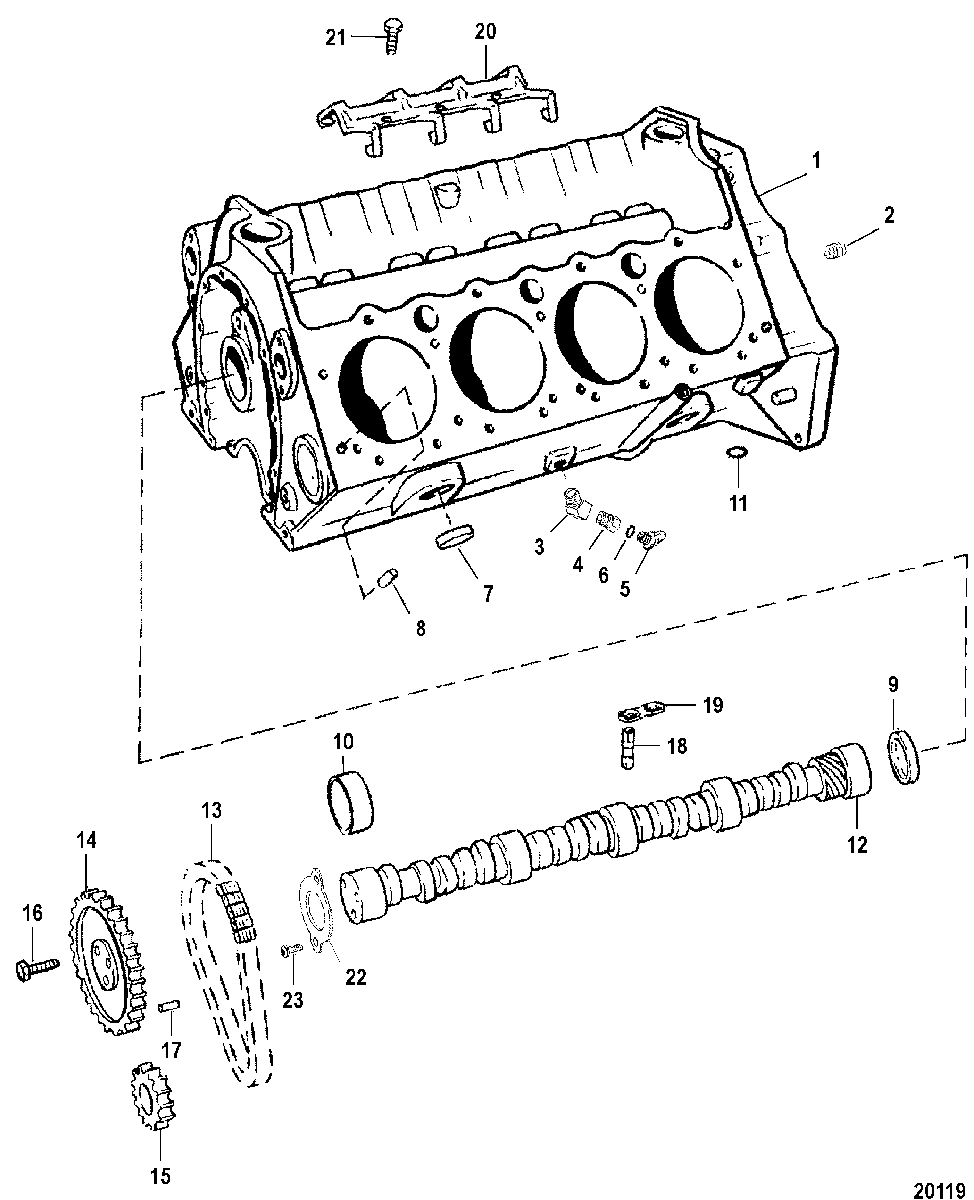

Cylinder Block and Camshaft для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    (454) (ORDER LONG BLOCK 807744R5)
    NOT SOLD SEPARATE, Cylinder Block
    (454) (ORDER LONG BLOCK 807744R5)
  • 1
    NSS NOT SOLD SEPARATE, Cylinder Block
    (8.2L) (ORDER LONG BLOCK 807745A1)
    NOT SOLD SEPARATE, Cylinder Block
    (8.2L) (ORDER LONG BLOCK 807745A1)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 2
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 3
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 4
    22-860088 BUSHING
    BUSHING
  • 5
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 6
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 7
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 8
    17-52190 PIN, Dowel
    PIN, Dowel
  • 9
    19-94140 EXPANSION PLUG (REAR CAMSHAFT HOLE)
    EXPANSION PLUG (REAR CAMSHAFT HOLE)
  • 10
    23-85684 BEARING SET
    BEARING SET
  • 11
    25-69756 O-RING, (.500 Inch)
    O-RING, (.500 Inch)
  • 12
    431-850478T CAMSHAFT
    CAMSHAFT
  • 13
    845796T CHAIN
    CHAIN
  • 14
    43-845795T SPROCKET
    SN# 0L085999 & Below
    SPROCKET
    SN# 0L085999 & Below
  • 14
    43-878056 SPROCKET, CAMSHAFT
    SN# 0L086000 & Up
    SPROCKET, CAMSHAFT
    SN# 0L086000 & Up
  • 15
    43-845794T SPROCKET
    SN# 0L085999 & Below
    SPROCKET
    SN# 0L085999 & Below
  • 15
    43-878055 SPROCKET, CRANKSHAFT
    SN# 0L086000 & Up
    SPROCKET, CRANKSHAFT
    SN# 0L086000 & Up
  • 16
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 17
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
    PIN, Dowel (1/4 In. Diameter) (1/4 IN. DIA.)
  • 18
    850466T LIFTER, Roller
    LIFTER, Roller
  • 19
    845754 GUIDE
    GUIDE
  • 20
    8M0050807 RETAINER
    RETAINER
  • 21
    10-841389 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 22
    845941 RETAINER
    RETAINER
  • 23
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • NS
    845756T SHIELD, Oil Intake, INTAKE
    SHIELD, Oil Intake, INTAKE
  • -
    807744R5 LONG BLOCK ASSEMBLY
    (454 MAG MPI HORIZON)
    LONG BLOCK ASSEMBLY
    (454 MAG MPI HORIZON)
  • -
    807745A3 MARINE LONG BLOCK
    (8.2L MPI)
    MARINE LONG BLOCK
    (8.2L MPI)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
  • -
    27-811572A94 GASKET SET, Overhaul
    (454)
    GASKET SET, Overhaul
    (454)
  • -
    27-805396A92 GASKET SET, Overhaul
    (8.2L)
    GASKET SET, Overhaul
    (8.2L)
