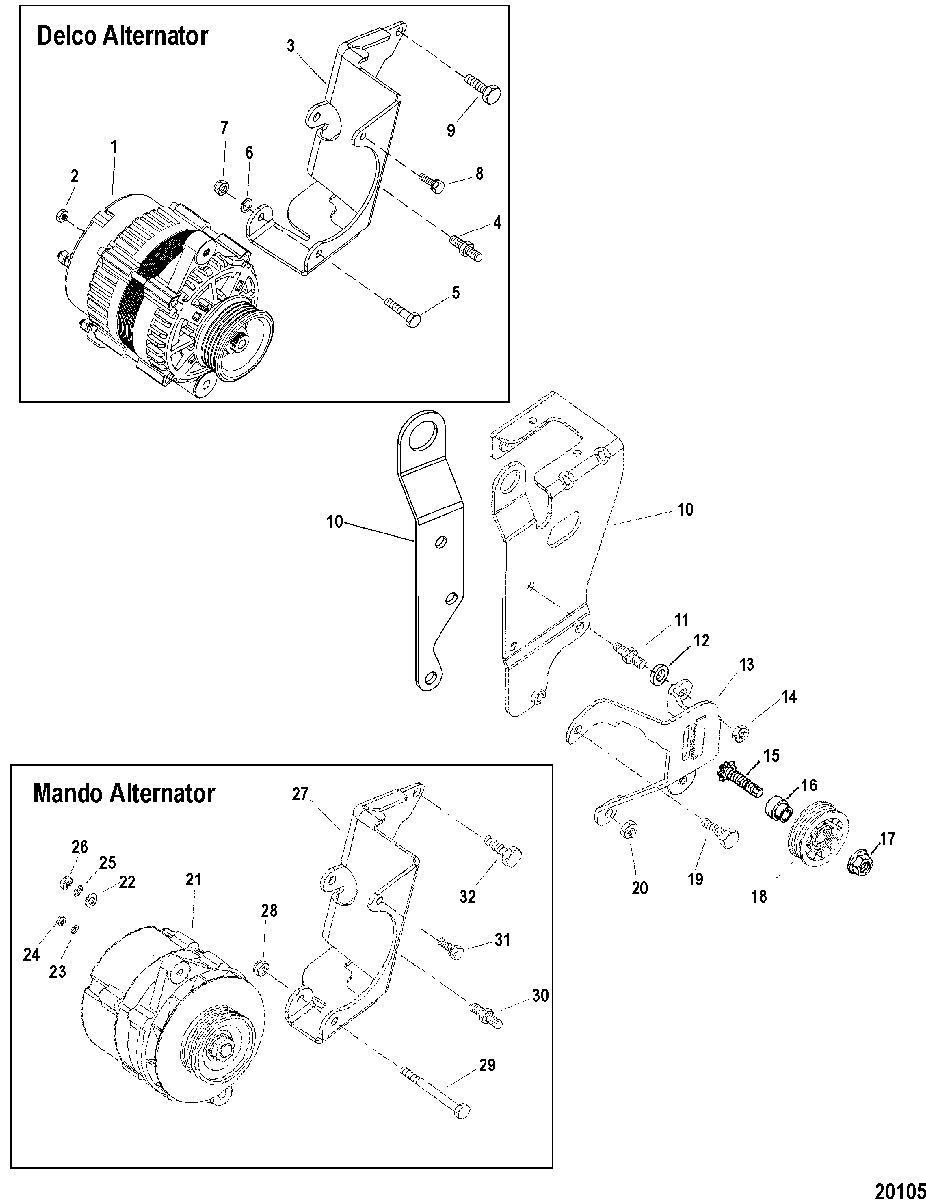

Alternator and Bracket для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200

  • №
    Артикул
    Название
  • 1
    862031T1 ALTERNATOR ASSEMBLY (65 Amp)(DELCO)
    (Non Serviceable - Replace Complete Assembly)
    ALTERNATOR ASSEMBLY (65 Amp)(DELCO)
    (Non Serviceable - Replace Complete Assembly)
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    862050T BRACKET, Alternator
    (Delco)
    BRACKET, Alternator
    (Delco)
  • 4
    16-806591 STUD, (7/16-14), Alternator & Seawater Pump Bracket
    STUD, (7/16-14), Alternator & Seawater Pump Bracket
  • 5
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 6
    12-57792 WASHER
    WASHER
  • 7
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 8
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 9
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 10
    861046 BRACKET, Power Assisted Steering/Lifting Eye
    (Mando Alternator)
    BRACKET, Power Assisted Steering/Lifting Eye
    (Mando Alternator)
  • 10
    807081T BRACKET, LIFTING EYE
    (Delco Alternator)
    BRACKET, LIFTING EYE
    (Delco Alternator)
  • 11
    16-861174 STUD (7/16-14 x 1 In.)
    STUD (7/16-14 x 1 In.)
  • 12
    12-34567 WASHER
    WASHER
  • 13
    861045 BRACKET, Idler
    BRACKET, Idler
  • 14
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 15
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 16
    865193 BUSHING
    BUSHING
  • 17
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 18
    807757T PULLEY ASSEMBLY, Idler - Black, Idler
    PULLEY ASSEMBLY, Idler - Black, Idler
  • 19
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 20
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 21
    807653T ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" BREAKDOWN)
    ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR (MANDO)" BREAKDOWN)
  • 22
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 26
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 27
    861047 BRACKET, Alternator
    (Mando)
    BRACKET, Alternator
    (Mando)
  • 28
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 29
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 30
    16-806591 STUD, (7/16-14), Alternator & Seawater Pump Bracket
    STUD, (7/16-14), Alternator & Seawater Pump Bracket
  • 31
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 32
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
