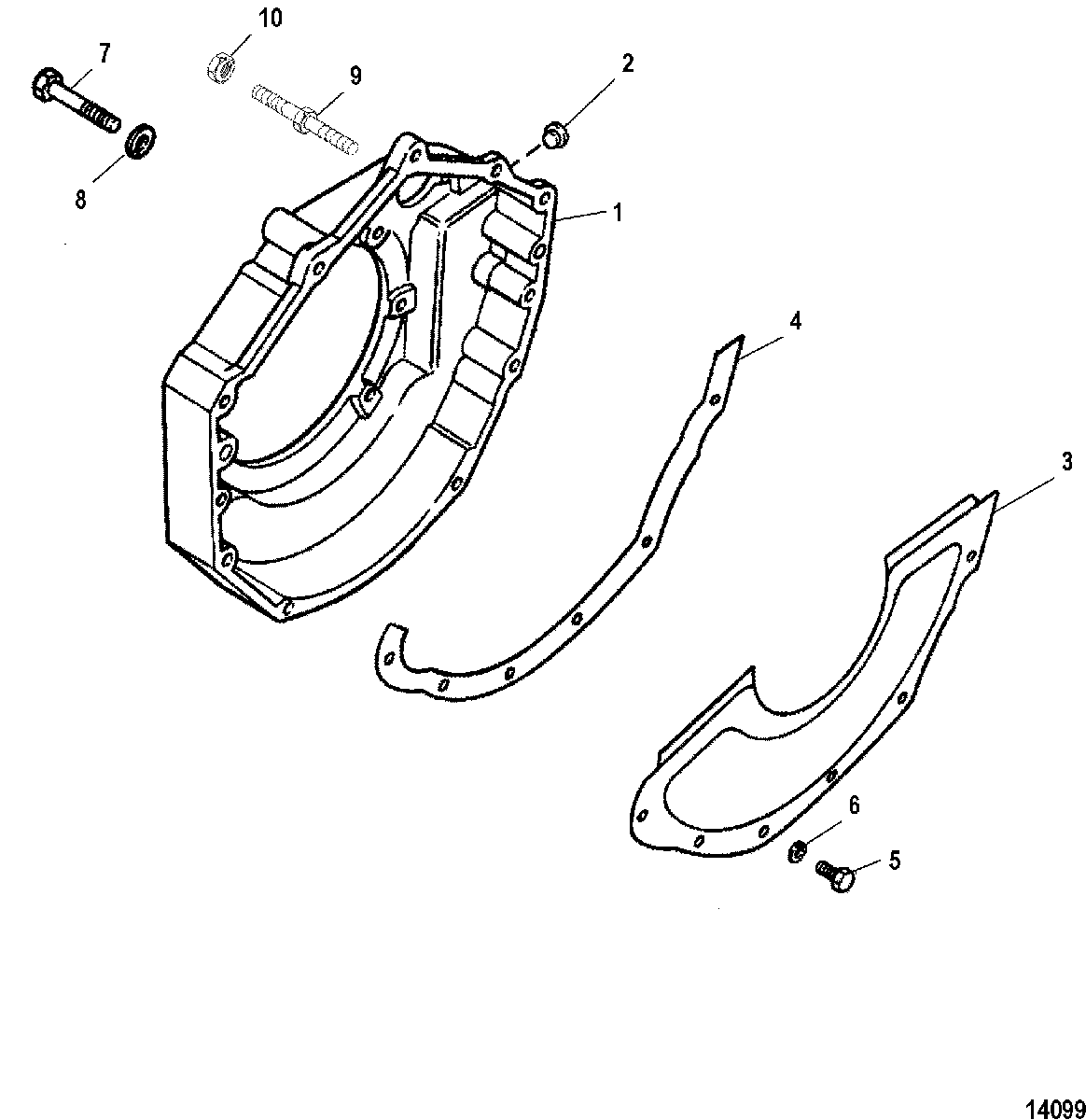

Flywheel Housing для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A4 COVER ASSEMBLY
    COVER ASSEMBLY
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 7
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    16-861316 STUD (STAINLESS STEEL)
    STUD (STAINLESS STEEL)
  • 10
    11-82671112 NUT (3/8-16) (BRASS)
    NUT (3/8-16) (BRASS)
