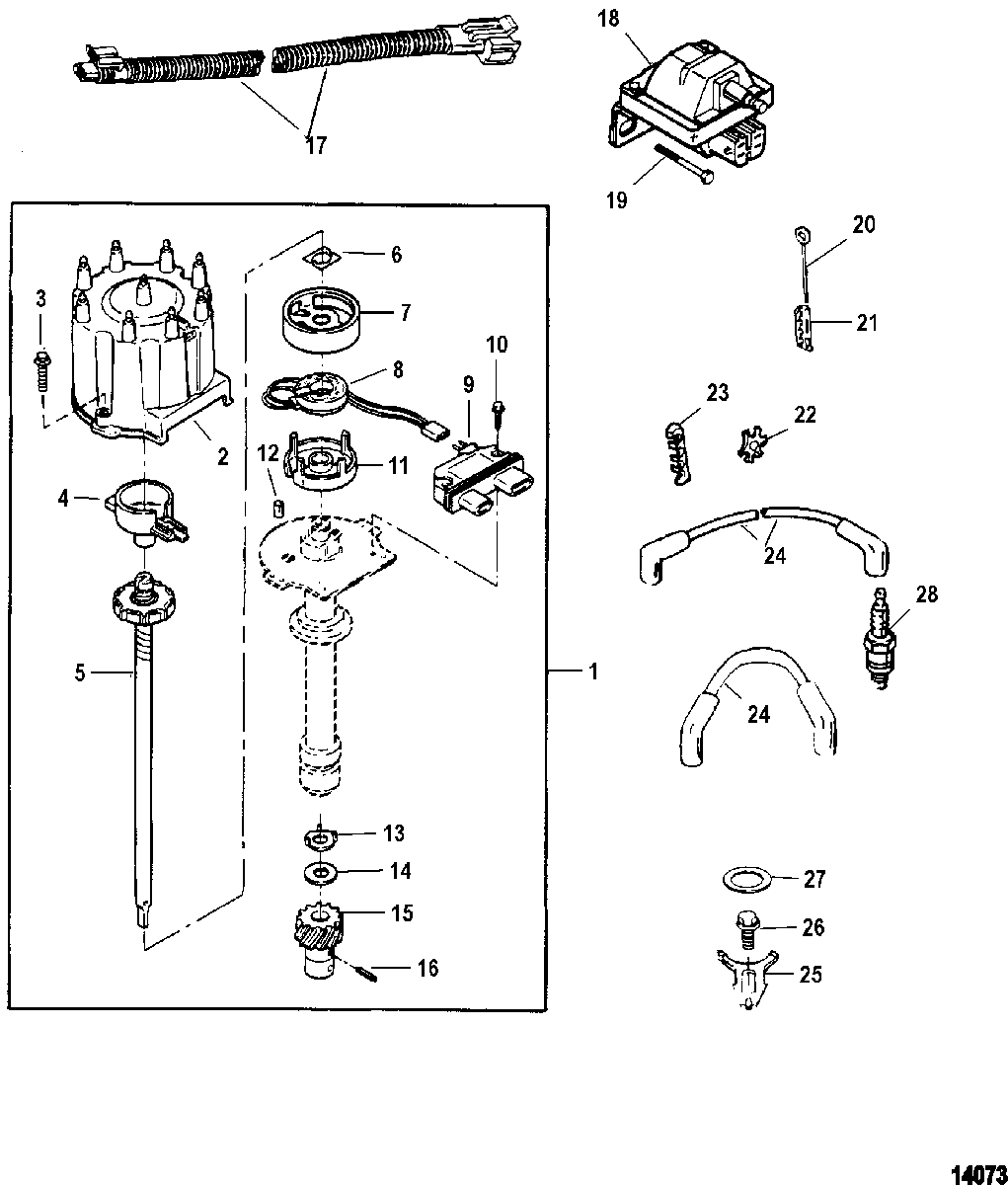

Distributor and Ignition Components для Mercruiser - 8.2L MIE MPI (GEN. VI) GM 502 V-8 0L086013 THRU 0L674200

  • №
    Артикул
    Название
  • 1
    805222A1 DISTRIBUTOR ASSEMBLY
    DISTRIBUTOR ASSEMBLY
  • 2
    808483T3 CAP, Distributor
    CAP, Distributor
  • 3
    10-808491 SCREW
    SCREW
  • 4
    8M6001253 ROTOR
    ROTOR
  • 5
    808485T SHAFT ASSEMBLY, Main
    SHAFT ASSEMBLY, Main
  • 6
    808487 RETAINER
    RETAINER
  • 7
    NSS NOT SOLD SEPARATE, Shield
    NOT SOLD SEPARATE, Shield
  • 8
    811639T COIL
    COIL
  • 9
    8M0123099 MODULE
    MODULE
  • 10
    10-811638 SCREW
    SCREW
  • 11
    811641 POLE PIECE
    POLE PIECE
  • 12
    17-808488 PIN
    PIN
  • 13
    12-46350 WASHER
    WASHER
  • 14
    12-808489 WASHER
    WASHER
  • 15
    43-808490 GEAR
    GEAR
  • 16
    17-34109 PIN
    PIN
  • 17
    84-817376T01 HARNESS ASSEMBLY, Distributor Module to Ignition Coil
    HARNESS ASSEMBLY, Distributor Module to Ignition Coil
  • 18
    898253T27 COIL
    COIL
  • 19
    10-805189 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 20
    16-90096A1 STUD ASSEMBLY, (#10-32 x Special)
    STUD ASSEMBLY, (#10-32 x Special)
  • 21
    54-72821 RETAINER
    RETAINER
  • 22
    54676 RETAINER, Two Wire
    RETAINER, Two Wire
  • 23
    32783 RETAINER, Three Wire
    RETAINER, Three Wire
  • 24
    84-847701Q17 CABLE KIT, Ignition (SPARK PLUGS & COIL) (BLUE)
    (454 MAG HORIZON)
    CABLE KIT, Ignition (SPARK PLUGS & COIL) (BLUE)
    (454 MAG HORIZON)
  • 24
    84-816608Q68 CABLE KIT, Ignition (SPARK PLUGS & COIL)
    (8.2L MPI)
    CABLE KIT, Ignition (SPARK PLUGS & COIL)
    (8.2L MPI)
  • 25
    54-88731 CLAMP
    CLAMP
  • 26
    10-805559 SCREW, (.375-16 x .875) Stainless Steel
    SCREW, (.375-16 x .875) Stainless Steel
  • 27
    27-344863 GASKET
    GASKET
  • 28
    33-898264001 SPARK PLUG, Platinum Tip (NGK BR6FVX)
    (454 MAG MPI HORIZON)
    SPARK PLUG, Platinum Tip (NGK BR6FVX)
    (454 MAG MPI HORIZON)
  • 28
    33-898264001 SPARK PLUG (NGK BR6FS)
    (8.2L MPI)
    SPARK PLUG (NGK BR6FS)
    (8.2L MPI)
  • -
    27-811572A94 GASKET SET, Overhaul (454)
    GASKET SET, Overhaul (454)
  • -
    27-805396A92 GASKET SET, Overhaul (8.2L)
    GASKET SET, Overhaul (8.2L)
